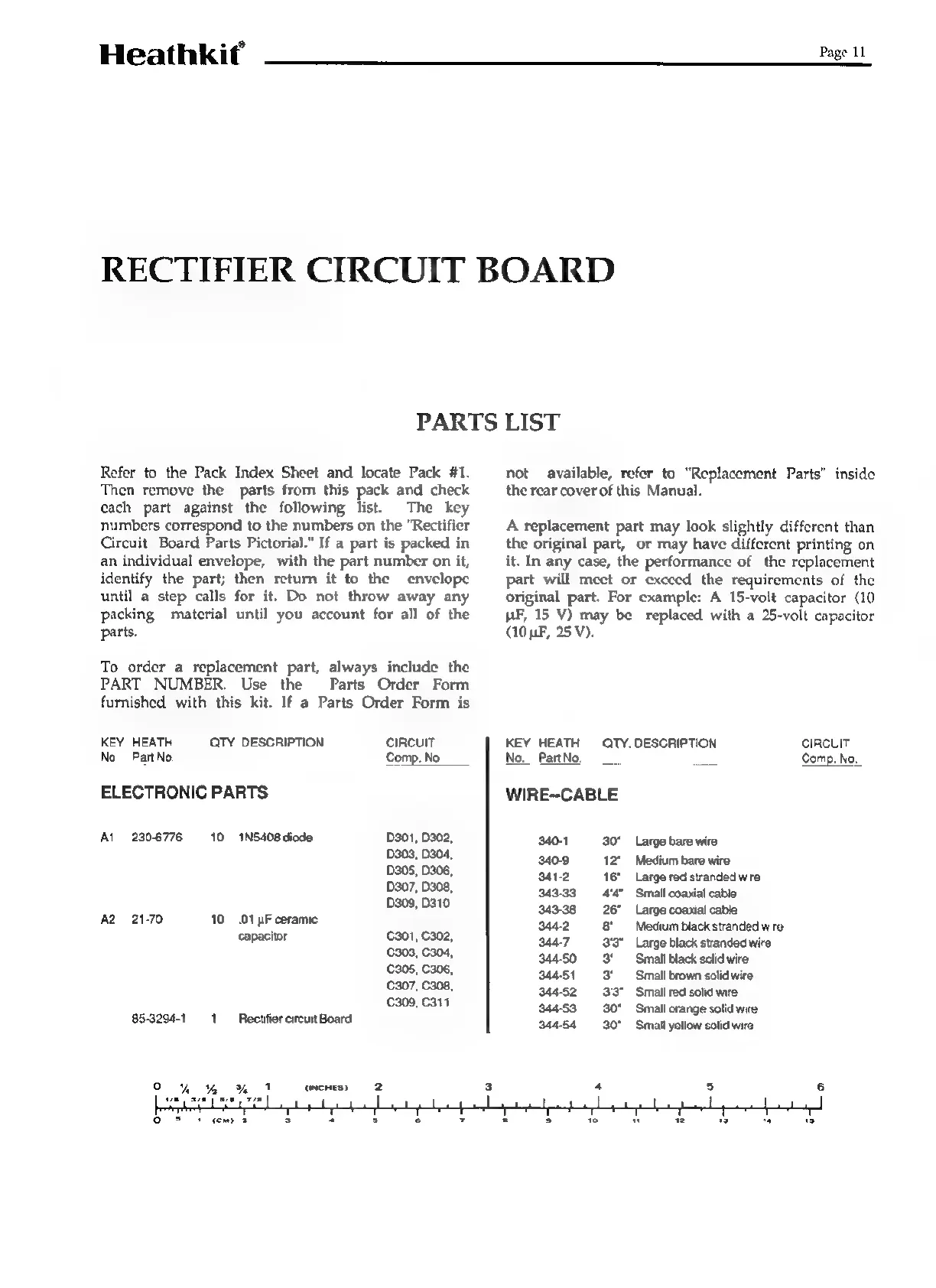

RECTIFIER CIRCUIT BOARD
PARTS LIST
Refer to the Pack Index Sheet and locate Pack #1.
Then remove the parts from this pack and check
each part against the following list. The key
mumbers correspond to the numbers on the "Rectifier
Circuit Board Parts Pictorial." If a part is packed in
an individual envelope, with the part number on it,
identify the part; then return it to the envelope
until a step calls for it. Do not throw away any
packing material until you account for all of the
parts.
To order a replacement part, always include the
PART NUMBER. Use the Parts Order Form
furnished with this kit. If a Parts Order Form is
KEY HEATH QTY. DESCRIPTION CIRCUIT
No. PartNo. Comp. No.
ELECTRONIC PARTS
Al 230-6776 10 1N5408 diode D301, 0302,
D303, D304,
D305, D306,
D307, D308,
D309, D310
A2 21-70 10.01 ULF ceramic
capacitor 301, C302,
C303, C304,
C305, C306,
307, C308,
309, C314
85-3294-1 1 Rectifier circuit Board
not available, refer to “Replacement Parts" inside
the rear cover of this Manual.
A replacement part may look slightly different than
the original part, or may have different printing on
it. In any case, the performance of the replacement
part will meet or exceed the requirements of the
original part. For example: A 15-volt capacitor (10
BF, 15 V) may be replaced with a 25-volt capacitor
(0 uF, 25 V).
KEY HEATH = QTY. DESCRIPTION CIRGUIT
No. PartNo __ ae ozs Comp. No.
WIRE~CABLE
340-1 30° Large bare wire
340-9 12" Medium bare wire.
341-2 16" Large red stranded wire
343-33 44" Small coaxial cable
343-38 26" Large coaxial cable
. Medium black stranded wire
344-7 33" Large black stranded wire
344-50 3 Small black solid wire
344-51 3 Small brown solid wire
344-52 33° Small red solid wire
344-53 30" Small orange solid wire
344-54 30° Small yellow solid wire
