Heathkit SB-1000 - Specifications

Heathkit
Page
5

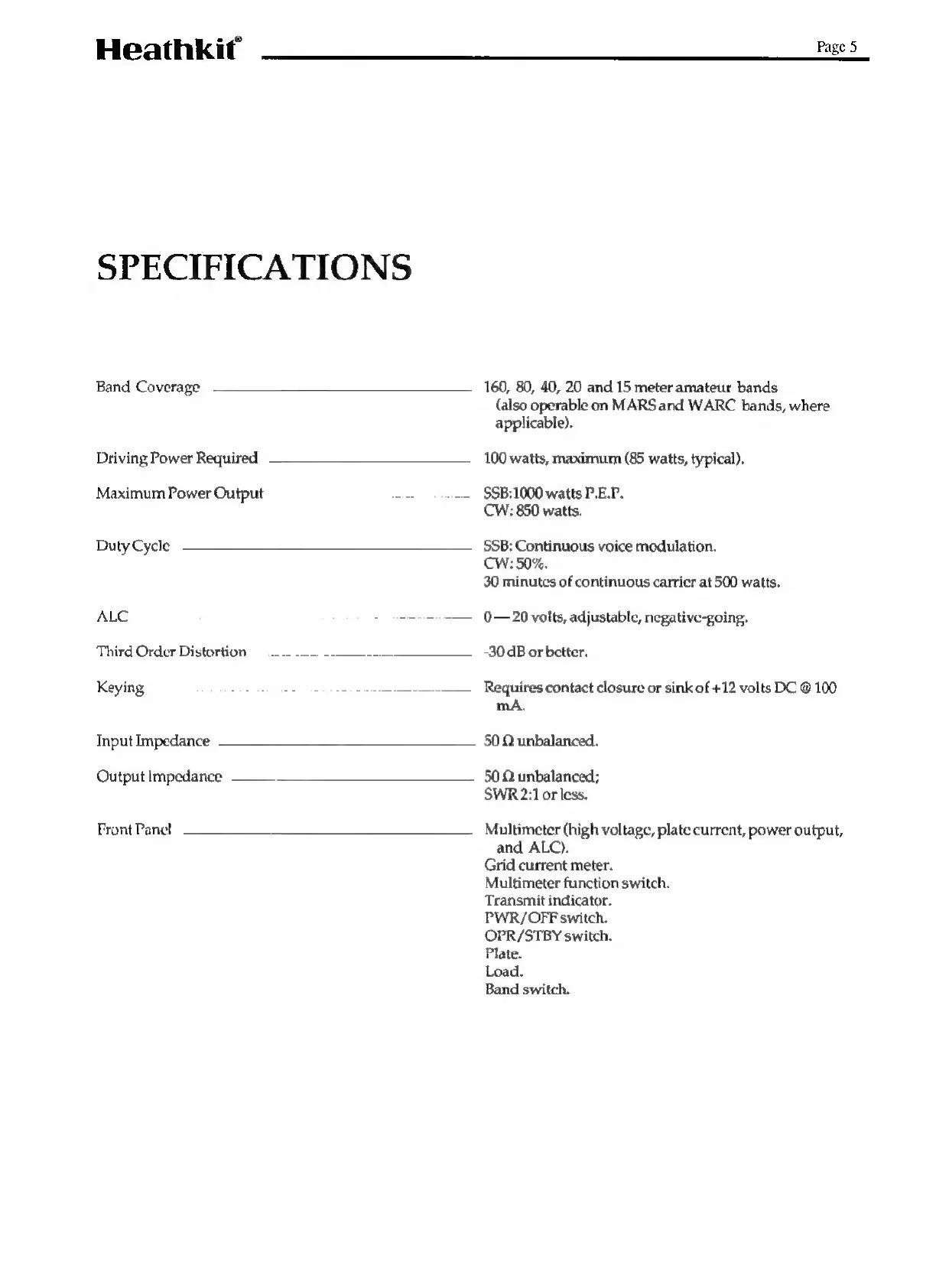

SPECIFICATIONS
Band Coverage 160, 80, 40, 20 and 15 meter amateur bands
(also operable on MARS and WARC bands, where
applicable).
Driving Power Required ———__________________ 100 watts, maximum (85 watts, typical).
Maximum Power Output ae -- SSB:1000 watts P.E.P.
CW: 850 watts.
Duty Cycle SSB: Continuous voice modulation.
CW: 50%.
30 minutes of continuous carrier at 500 watts.
ALC -- == 0—20 volts, adjustable, negative-going.
Third Order Distortion oo ee © -30 dB or better.
Keying ee seco Requires contact closure or sink of +12 volts DC @ 100
mA.
Input Impedance 50 Q unbalanced.
Output Impedance — 50. Q unbalanced;
SWR 2:1 or less.
Front Panel Multimeter (high voltage, plate current, power output,
and ALC).
Grid current meter.
Multimeter function switch.
Transmit indicator.
PWR/OFF switch.
OPR/STBY switch.
Plate.
Load.
Band switch.
