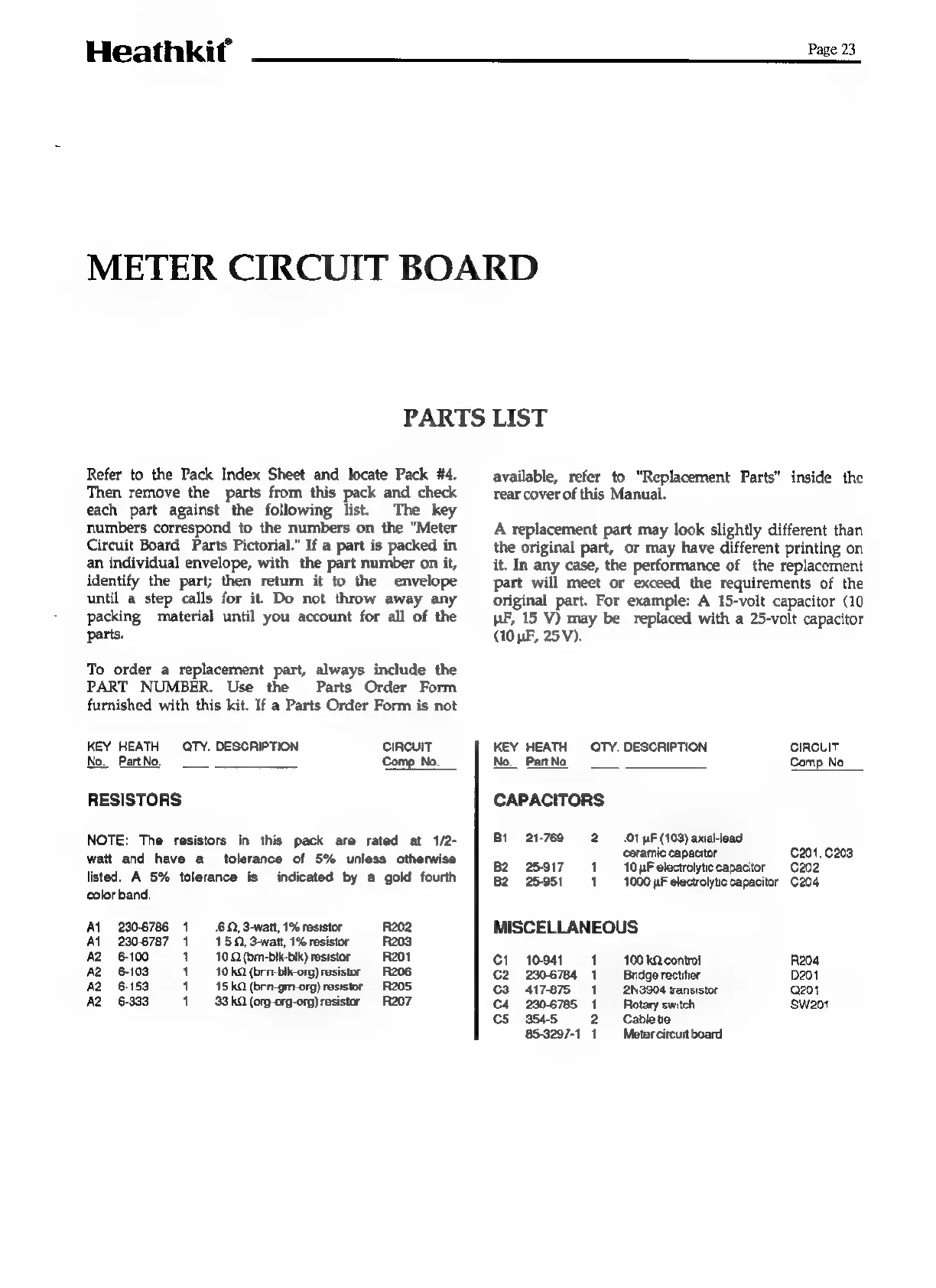

METER CIRCUIT BOARD
PARTS LIST
Refer to the Pack Index Sheet and locate Pack #4.
Then remove the parts from this pack and check
each part against the following list. The key
numbers correspond to the numbers on the "Meter
Circuit Board Parts Pictorial." If a part is packed in
an individual envelope, with the part number on it,
identify the part; then return it to the envelope
until a step calls for it. Do not throw away any
packing material until you account for all of the
parts.
To order a replacement part, always include the
PART NUMBER. Use the Parts Order Form
furnished with this kit. If a Parts Order Form is not
available, refer to “Replacement Parts" inside the
rear cover of this Manual.
A replacement part may look slightly different than
the original part, or may have different printing on
it. In any case, the performance of the replacement
part will meet or exceed the requirements of the
original part. For example: A 15-volt capacitor (10
HF, 15 V) may be replaced with a 25-volt capacitor
(10 pF, 25V).
KEY HEATH QTY. DESCRIPTION CIRCUIT KEY HEATH QTY. DESCRIPTION CIRCUIT
No, PartNo, Comp. No. No. PartNo. Comp. No.
RESISTORS CAPACITORS
NOTE: The resistors in this pack ara rated at 1/2- B1 21-769 2.01 uF (103) axial-lead
wait and have a tolerance of 5% unless otherwise coramic capacity ad
listed. A 5% tolerance is indicated by a gold fourth
color band.
Al 230-6786 1 6 Q, 3-watt, 1% resistor R202
Al 230-6787 1 1.5 Q, 3-watt, 1% resistor R203
A2 6-100 1 10.0 {om-blk-bik) resistor R201
A2 6-103 1 10kQ(brn-blk-org) resistor R206
A2 6-153 1 15kQ(brn-gm-org) resistor R205
A2 6-933 1 33kQ(org-org-org) resistor R207
B2 25917 1 10pFelectrolyticcapacitor C202
B2 25-951 1 1000pF electrolytic capacitor C204
MISCELLANEOUS
C1 10-941 1 — 100kScontrol F204
C2 230-6784 1 — Bridgerectifier D201
C3 417-875 1 —_2N3904 transistor Q201
C4 280-6785 1 Rotary switch sw20t
C5 3545 2 Cabletie
1 85-3297-1 Meter circuit board
