28466 Rev H 12 01-02
NOVUS B-VENT INSTALLATION INSTRUCTIONS
b. Electronic Ignition
1) This electronic ignition appliance requires a 110V AC supply to operate. It is suggested that a switched
110V junction box be installed to power the optional remote control and/or fan.
2) Only heater listed appliances may be connected to a thermostat. If connecting a 24V thermostat (not
supplied), disconnect the black wire from the transformer or high limit switch at the ignition control. Connect
the thermostat wires between the ignition control box and the black wire (from transformer or high limit
switch). See Figure 16.

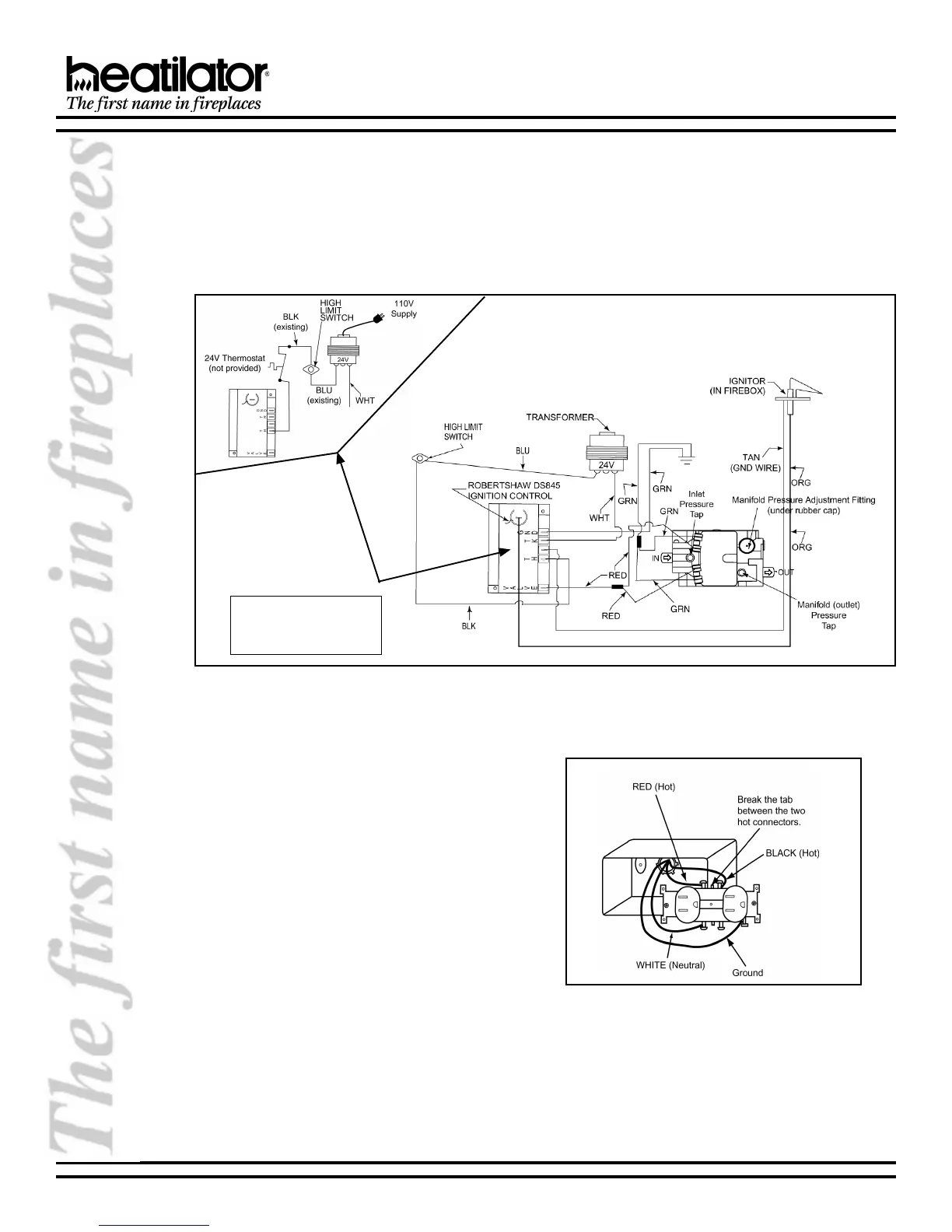

Figure 16 - Electronic Ignition Wiring Diagram
Figure 17 - Junction Box Detail
c. Junction Box Wiring
We recommend you operate the two outlets on
separate circuits. This allows independent
operation of the appliance and fan. Independent
operation is obtained by using minimum 14-3
with ground Romex and separating the two outlets
by breaking out the tab as shown in Figure 17.
NO additional wire is
supplied by Hearth
Technologies Inc.
