NOVUS B-VENT INSTALLATION INSTRUCTIONS
4. WIRING
Note: This appliance must be electrically wired and grounded in accordance with local codes or, in the absence of local
codes, with National Electric Code ANSI/NFPA 70-latest edition or the Canadian Electric Code, CSA C2.1
.
WARNING!
This appliance does not require a 110VAC supply for operations. Connecting the appliance/wall switch
to a 110V AC supply will cause the appliance to malfunction and destroy the valve and thermopile.
a. Standing Pilot Ignition
This standing pilot appliance does not require a 110V AC supply to operate. It is suggested that a switched 110V
junction box be installed to power the optional remote control and/or fan.
Only heater listed appliances may be connected to a thermostat. Use a thermostat that is compatible with a
millivolt gas valve. See Figure15.
Note: Optional Accessories Requirements: Wiring for optional accessories should be done now to avoid reconstruction.
CAUTION:
Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.

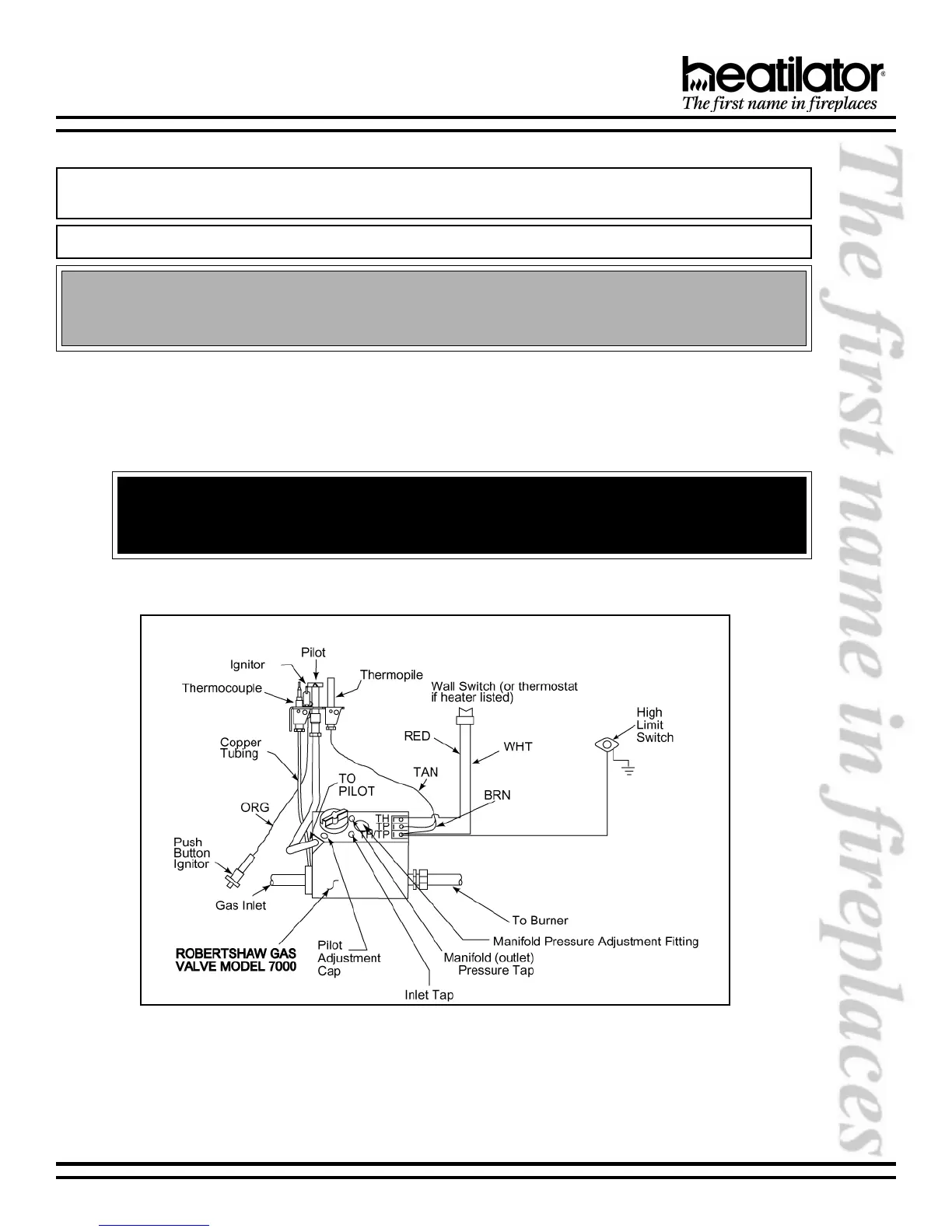

Figure 15 - Standing Pilot Ignition Wiring Diagram
