Removal and Replacement of the Bladder
ABSOLUTELY NO FIRE IN THE FIREBOX WHEN PERFORMING THIS REPAIR. DO
NOT PERFORM THIS REPAIR WHEN UNIT WATER TEMPERATURE IS UNSAFE.
ALWAYS WEAR PROPER PERSONAL PROTECTIVE EQUIPMENT WHEN WORKING
WITH WATER AND CHEMICALS.
1. Turn off the (green) bladder gate valve located at the rear of
the HEATMOR™ furnace to the left of the thermometer.
2. Remove the bladder cover plate held in place by wing nuts.
3. Remove the hose clamp from the bladder gate valve.
4. Pull the bladder hose away from the bladder gate valve and
let the water drain from the bladder. Be careful, it could be
warm.
5. Remove the old bladder and install the new bladder.
6. Install the new bladder with the bladder outlet in the front of
the bladder compartment. Connect the tube to the bladder
valve’s 1/2 inch barbed tting and tighten hose clamp.
7. Open the bladder gate valve and follow the “Filling the Blad-
der with Water” instructions.
Bladder Gate Valve and Bladder Hose
Principle of the Bladder Gate Valve and Bladder Hose
The bladder gate valve provides water ow control in maintaining the bladder and lling the
furnace with water. The bladder hose provides a means for the water to freely ow from the
water jacket to the bladder allowing expansion and contraction.
Maintenance / Result
To maintain the bladder gate valve, open and close the valve periodically to prevent it from
seizing. Ensure that the hose clamp is tightly fastened, securing the bladder hose to the
bladder and to the bladder gate valve.
Removal and Replacement
1. Turn off the power to the furnace.
2. Drain some of the water from the furnace to prevent water from draining while you
are replacing the valve.
3. Loosen the hose clamp holding the bladder hose to the bladder gate valve.
4. Remove the bladder hose from the bladder gate valve and let the water drain from
the bladder.
5. Remove the old bladder gate valve and install the new bladder gate valve.
6. Attach the bladder hose to the bladder gate valve and tighten the hose clamp.
7. Keeping the bladder gate valve closed, add water until furnace is full.
ABSOLUTELY NO FIRE IN THE FIREBOX WHEN PERFORMING THIS REPAIR. DO
NOT PERFORM THIS REPAIR WHEN UNIT WATER TEMPERATURE IS UNSAFE.
ALWAYS WEAR PROPER PERSONAL PROTECTIVE EQUIPMENT WHEN WORKING
WITH WATER AND CHEMICALS.
8. Open the bladder gate valve and follow the “Filling the Bladder with Water”
instructions.
9. Turn on the power to the furnace.
WHEN THE HEATMOR™ FURNACE IS OPERATING,
THE BLADDER GATE VALVE MUST BE OPEN.

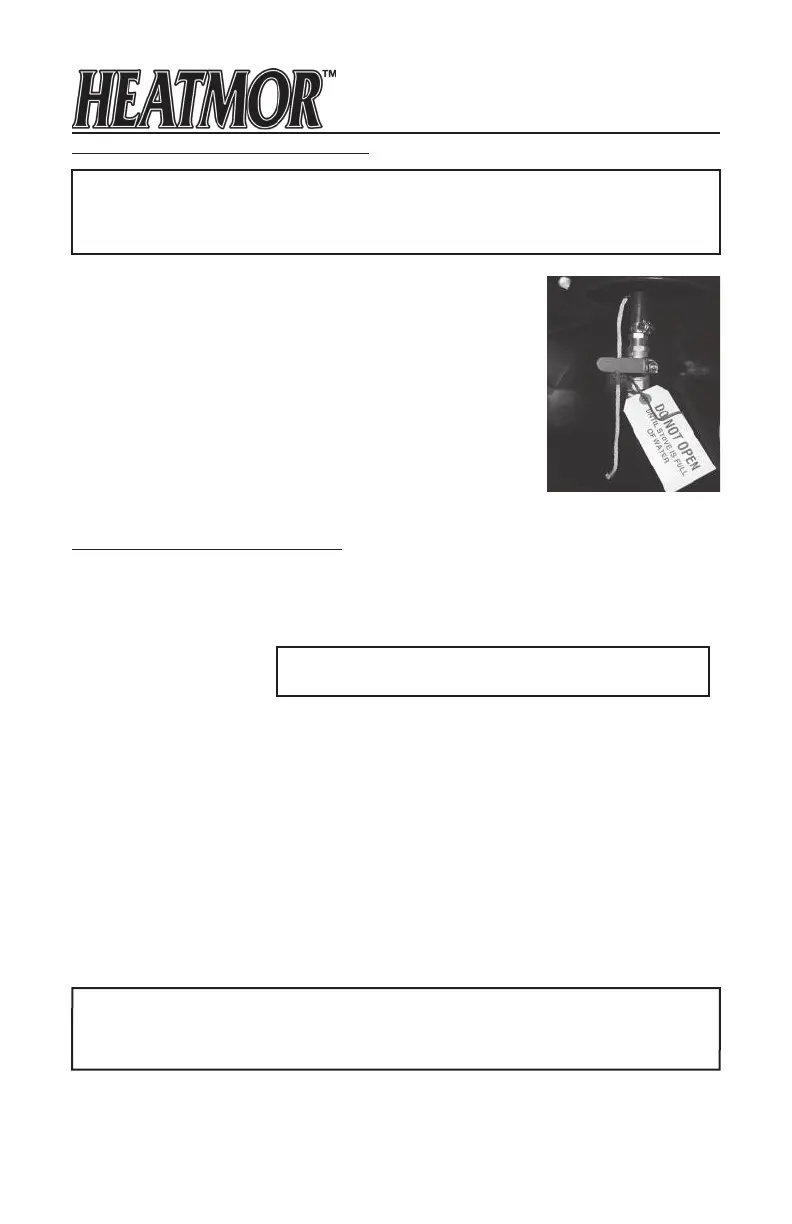

Bladder Gate Valve
