Heatmor 200X - Ash Pan and Ash Auger System Service; Ash Auger Operation and Storage

57
Ash Pan
Principles
The ash pan is a storage reservoir for completely
burned ashes and provides support for the grates. It
is also a distribution area for the combustion air that
ows upwards through the grates.
A reasonable amount of ashes (two to four gallons)
should be removed during each ash removal. The ash
pan is replaceable.
Removal and Replacement - consult your local dealer
Disconnect power before removing ashes.
Ash Auger
Principles
The auger provides a convenient and cleaner method of remov-
ing ashes from ash pan.
Operation
1. The ash auger should never be left in the ash pan
between clean-outs of ashes.
2. Doing so will interfere with the required combustion airow
beneath the grates, and required combustion airow up
through the grates.
3. Twist the auger into the ashes and either screw or pull the ashes out.
4. A proper method of storing the ash auger is to attach a six inch PVC pipe, three feet
long, to the side of the HEATMOR™. Storing the auger in the tube will keep it from
being frozen into or under snow.

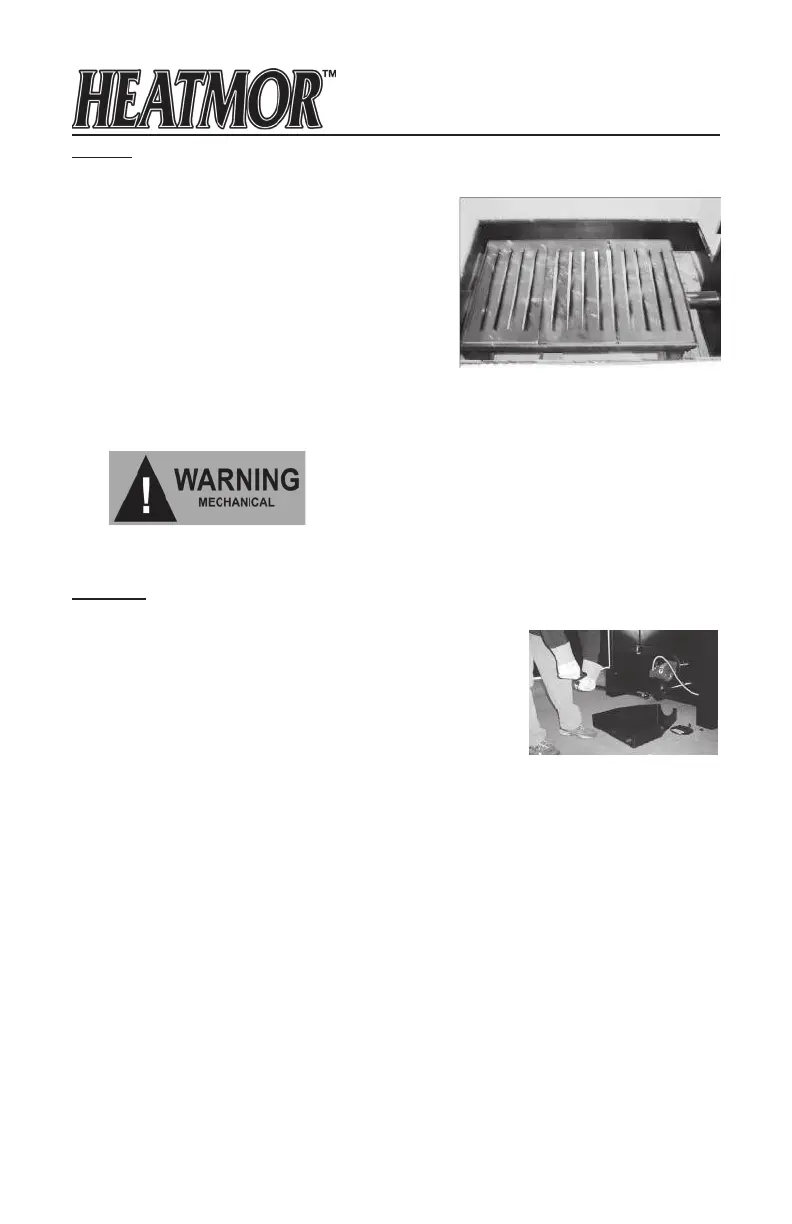

Ash Pan (Below Grates)
Ash Auger
