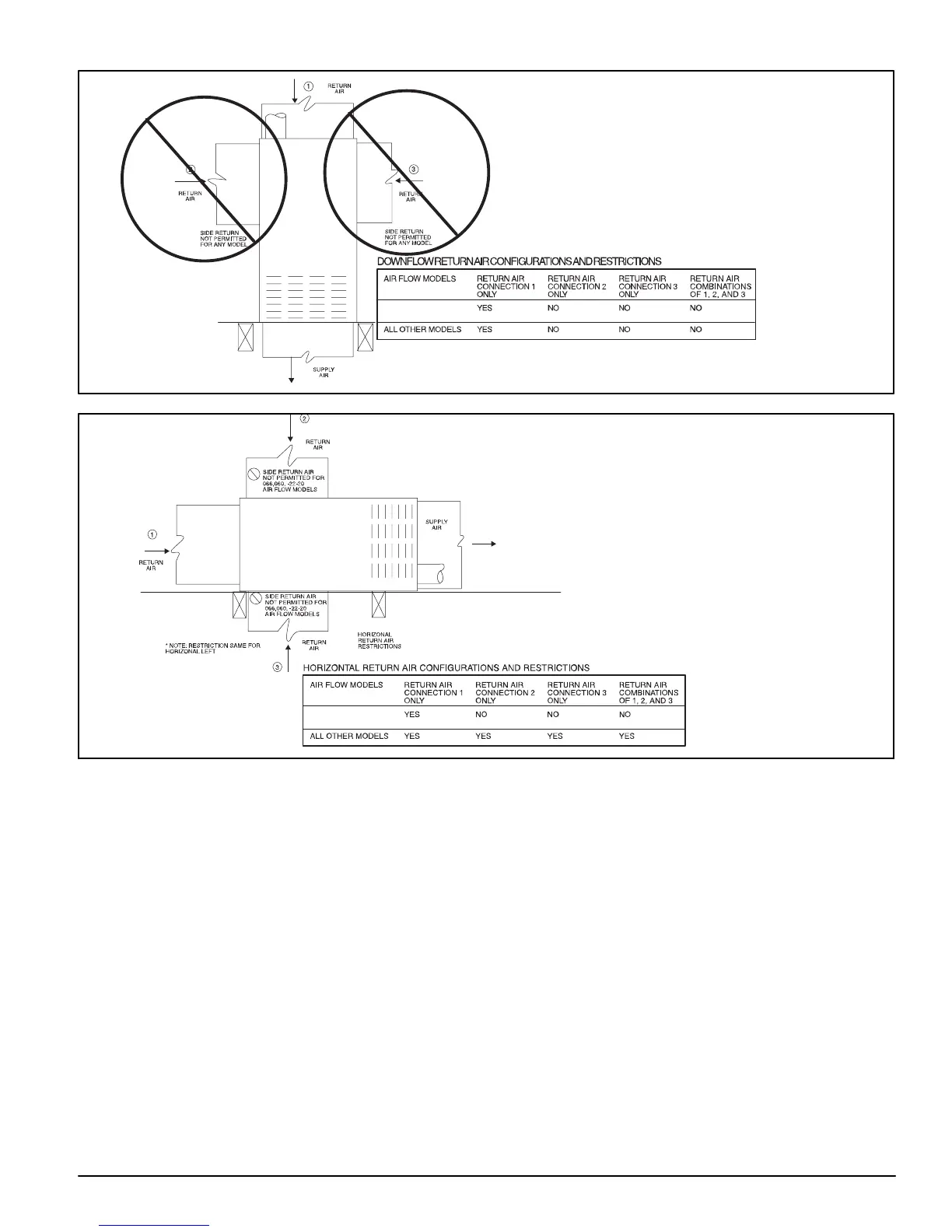

Figure 19 − Downflow Return Air Configurations and Restrictions
5 TONS AND
GREATER
*
* 2000 CFM AND GREATER AT .6 ESP HI COOLING SPEED
Figure 20 − Horizontal Return Air Configurations and Restrictions
5 TONS AND
GREATER
*
* 2000 CFM AND GREATER AT .6 ESP HI COOLING SPEED
