6 Sensors
Digital Governor Basic System PANDAROS III 17
6.3 Cooling medium temperature sensor TS 01 - 28 - PT 1000
(EDV- No.: 600 00 053 00)
Measuring range -50°C up to +150°C
Precision 1.5°C
Resistance at 25 °C (R25) 1000 Ohm 0.5 %
Maximum operating voltage 5 V
Maximum operating current 3 mA
Recommended operating current approx 1mA
Time constant in fluids approx. 13 seconds
Admissible temperature range
connector socket -40°C up to +105°C
Protection grade IP 65
Vibration < 20 g, 10 - 300 Hz
Shock < 50 g, 11 ms half-sine wave
Tightening torque 50 Nm 15 %
Connector SV 6 - IA - 2K (EDV- No.: 010 02 170 00)
B
A
seal ring DIN 7603-14x18 (Cu)
pin configuration:
B = -
19
SW
5/8"-24
M14x1,5
8
h7
16
28
17,5
56,5
A = +

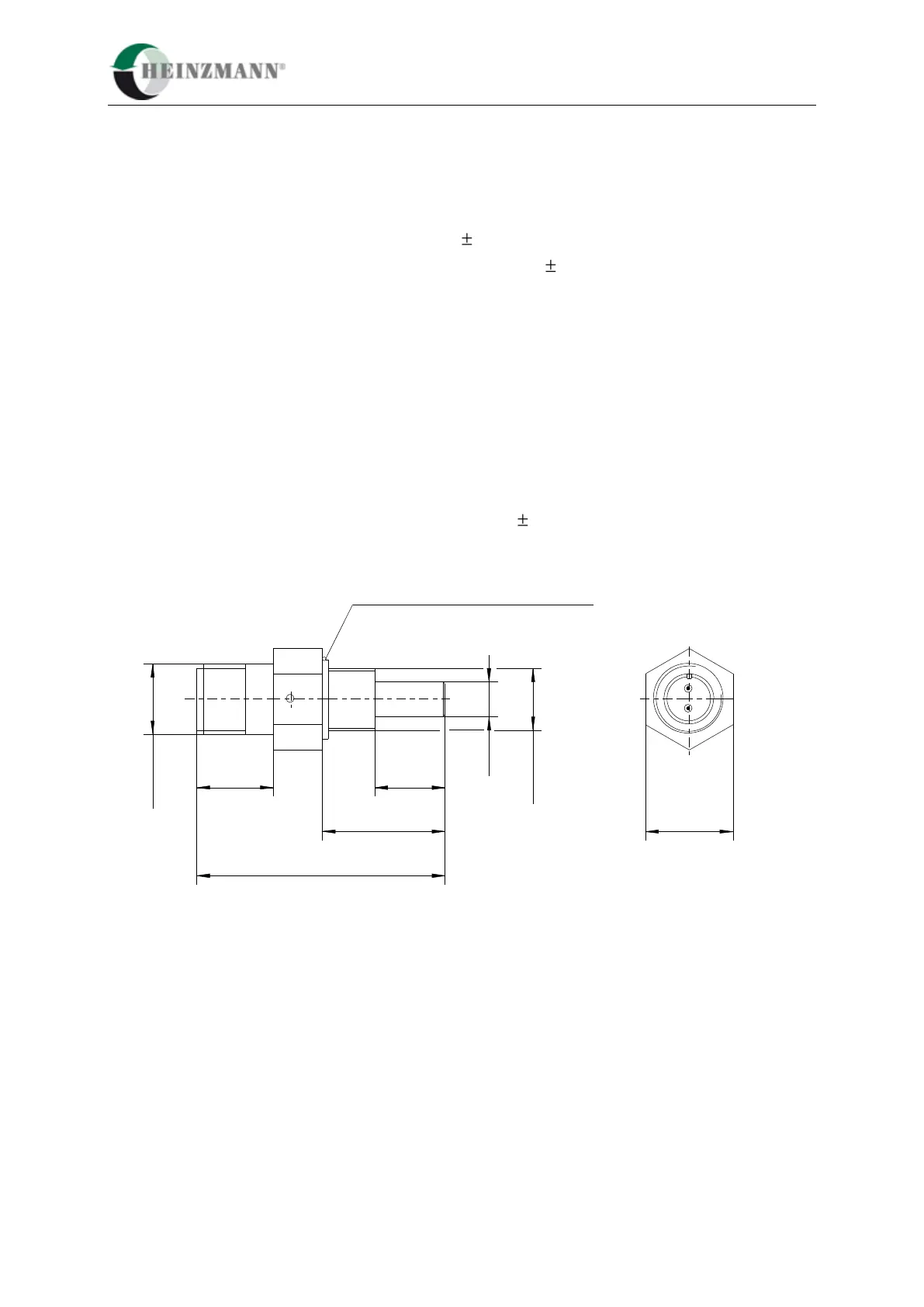

Fig. 4: Temperature sensor TS 01 - 28 - PT 1000
