10 Regulating linkage
Digital Governor Basic System PANDAROS III 33
10.3.2 Linkage adjustment for carburettor engines
For carburettor or gas engines, the length of the connecting linkage is adjusted in such a
way that with the governor in full load position the throttle valve is completely open. In
idling speed position, the elastic link must be slightly overcome. This allows adjustment of
the idle screw without changing the governor adjustment.
Patents pending
Range Voltage
for BasicSystem E
Serial No.
R
GmbH + Co.
HEINZMANN
Am Haselbach 1
D-79677 SchÎnau
Germany
Telefon: (07673) 8208-0
Telefax: (07673) 8208-88
Diese Schraube darf nicht verstellt werden!
Never turn this screw!
Ne pas toucher a cette vis!
Füllung Fuel Combustible
100
50
0
actuator
tension elastic member
displacement
angle
full load position
no load position
throttle valve
opened completely

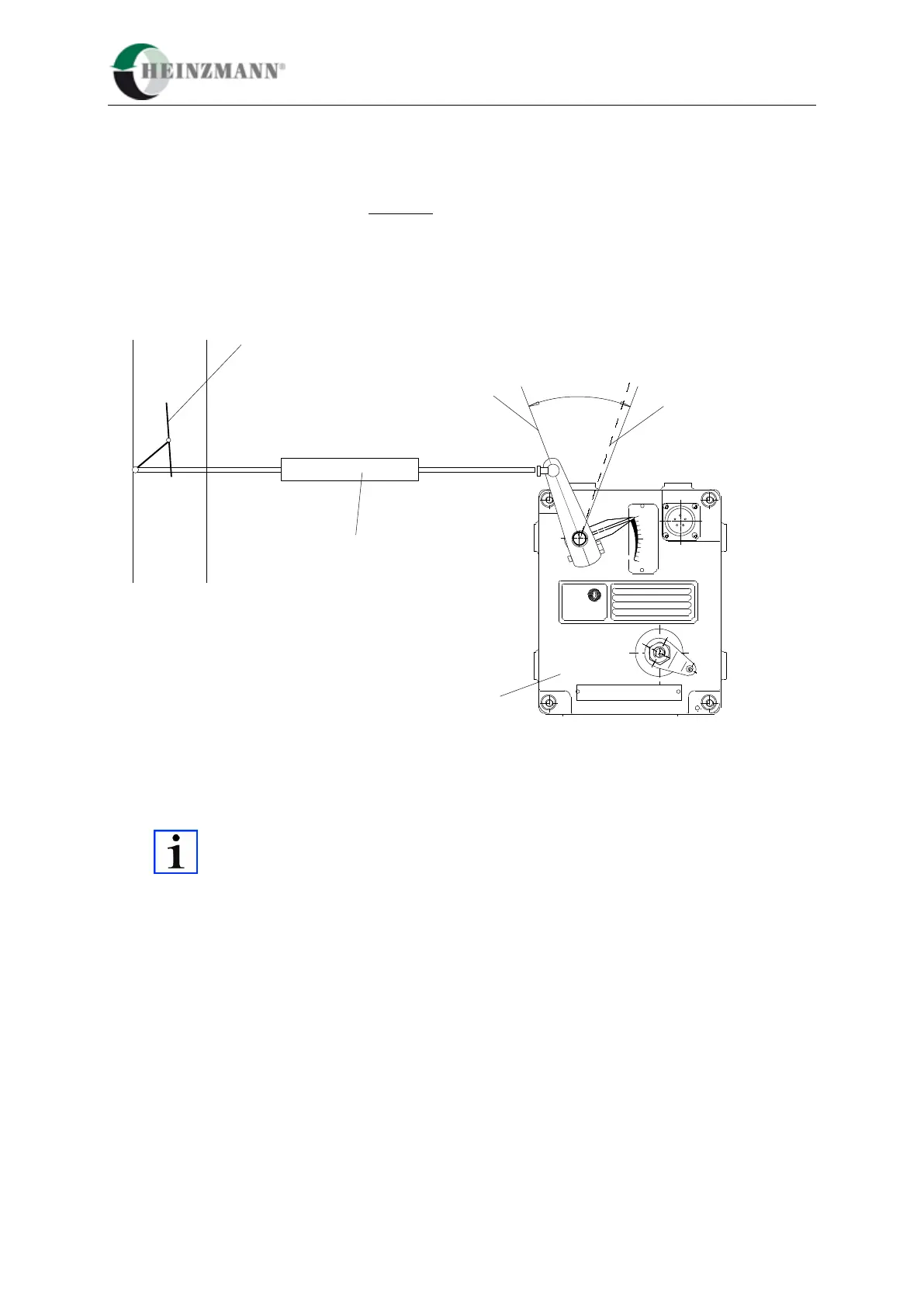

Fig. 14: Linkage for carburettor and gas engines
If carburettor or injektion pump are to the left of the governor as opposed to their
position on the drawings, then the direction of motion of the elastic link must also be
reversed
