Heinzmann PANDAROS III DG 16.6 User Manual

7 Setpoint adjusters
Digital Governor Basic System PANDAROS III 21
7 Setpoint adjusters
With regard to the variety of applications, various setpoint adjusters are available for the
HEINZMANN digital speed governors of series Pandaros.

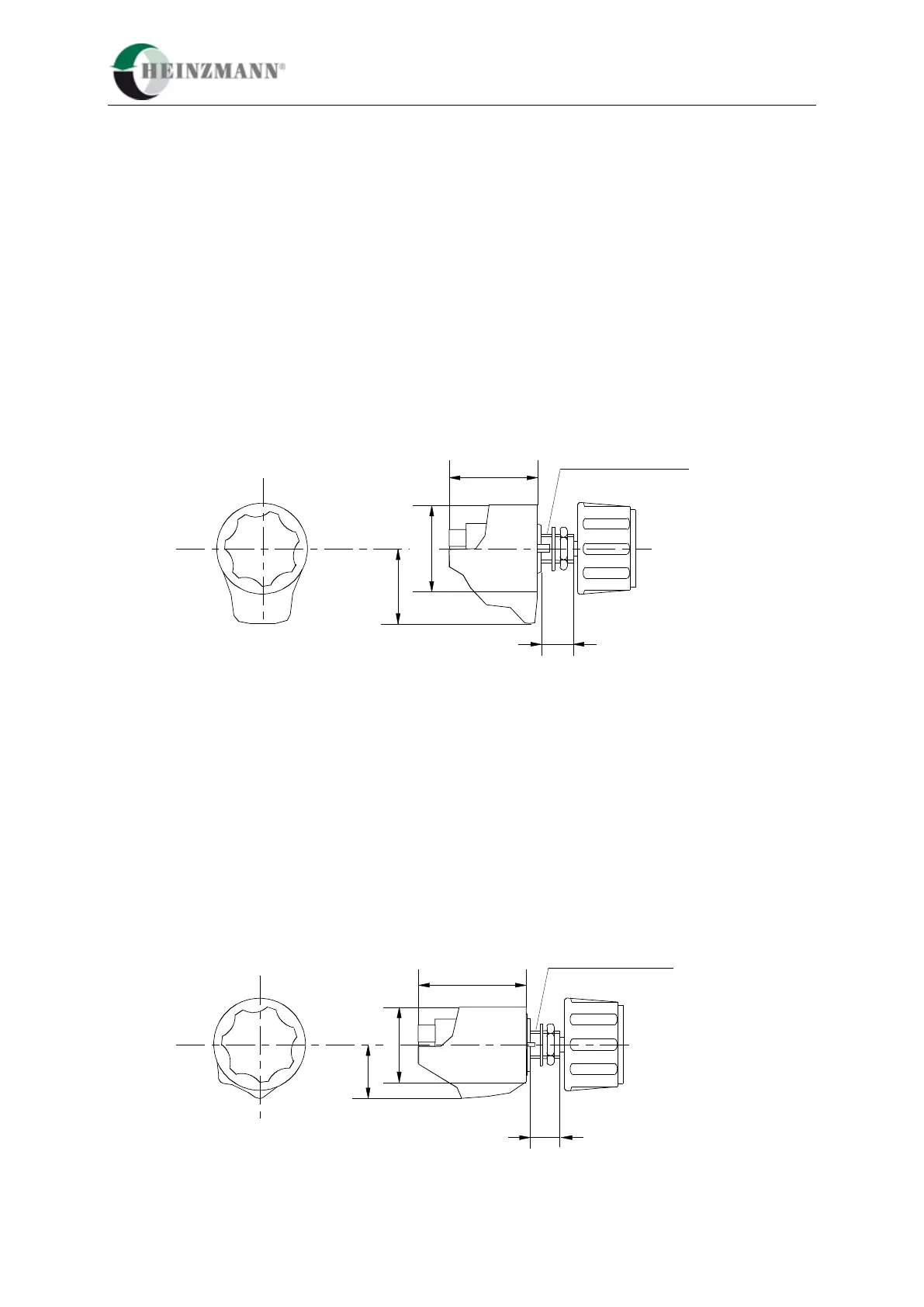

7.1 Setpoint potentiometer SW 01 - 1 - b (1 turn)
(EDV- No.: 600 00 041 01)
Displacement angle approx. 312°
Resistance 5 kOhm
Temperature range -55°C to + 120°C
Protection grade IP 00
9,5
3/8" - 32 NEF - 2A
Ø 27
23
26
Fig. 8: Potentiometer SW 01 - 1 - b
7.2 Setpoint potentiometer SW 02 - 10 - b (10- turn)
(EDV- No.: 600 00 042 01)
Displacement angle 10 turns
Resistance 5 kOhm
Temperature range -55°C to + 120°C
Protection grade IP 00
8,8
3/8" - 32 NEF - 2A
Ø 23
17
32
Fig. 9: Potentiometer SW 02 - 10 - b
