11 Electrical connection
38 Digital Governor Basic System PANDAROS III
11.4 Connection for variation DG 6-04 (extended generator 2)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
k
max.
min.
DC .. 6-04
Control Unit
Temperature Sensor
Setpoint Potentiometer
Selector Switch
Analogue Accessory Units/
Setpoint Potentiometer
Common Alarm
Run (open Engine Stop)
16
15
17
16 A
14
Synchronizer
SyG 02
Load Measuring Unit
LMG 03-S2
C
B
D
A
E
A
B
M
StG 6 .. 10 - 01
Actuator
Magnetic Pickup IA ..
24V
Battery
Fuse
12 A
Governor
on
22 23 24 25
CU-01
cw
ccw
out

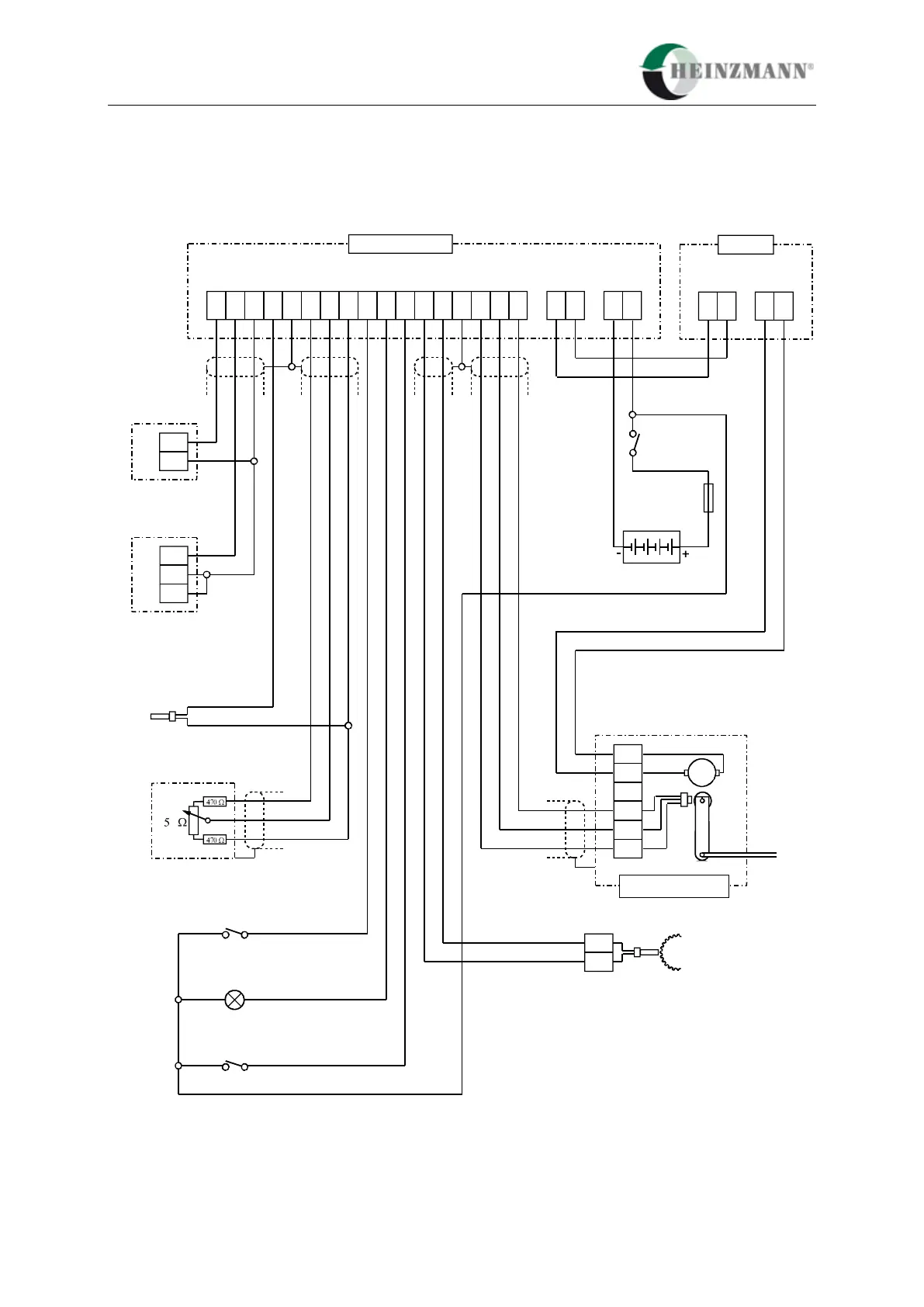

Fig. 18: Connection Diagram for Variation DG 6-04
StG 16, 30, 40
