Heinzmann PRIAMOS I Series User Manual

4 Block Diagram of the Digital Governor DG 16.1 - 03 up to DG 40.1 - 03
8 PRIAMOS I
4 Block Diagram of the Digital Governor DG 16.1 - 03 up to DG 40.1 - 03
Memory
Mikroprocessor
Power
CAN - Bus
Interface
Control Unit DC 641 03 / DC 901 - 03
Magnetic pickup
Redundant Engine Speed Signal
Setpoint Values
Temperature Sensor
Engine Stop
Oil Pressure Sensor Digital Inputs
Actuator
StG 64 - 03 /
StG 90 - 03
Engine Speed Actuator Travel
Alarm
Programming Attachment Diagnostics Digital Application Units e.g. Synchronizer, Load Measuring Unit
Additional
Processor
Converter
Converter
Converter
Boost Pressure Sensor
Amplifier
Feedback
Drive

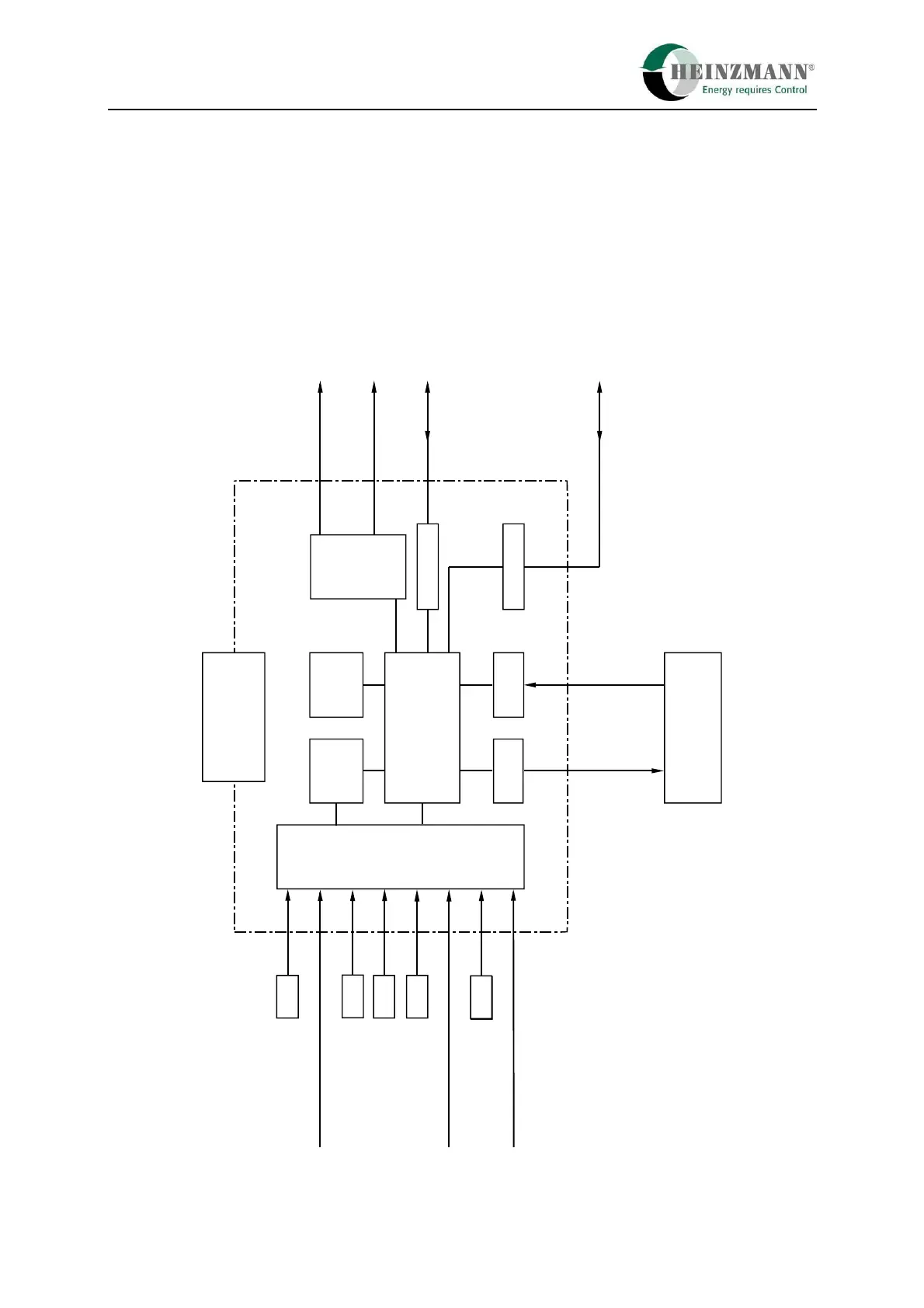

Figure 1: Blockdiagram DG 16.1 - 03 up to DG 40.1 - 03
