5.4.2 Boost Pressure Sensors
The boost pressure sensors are also available in an additional housing with terminal
strip.
Measuring range 0 - 2 bar, 0 - 5 bar or 0 - 10 bar
Over pressure 4 bar resp. 10 bar resp. 16 bar
Supply voltage 12 - 36 V DC
Output signal 4 - 20 mA
Storage temperature -55°C up to +100°C
Ambient temperature -40°C up to +100°C
Protection grade IP 65
Vibration < 2 g, 5 - 500 Hz
Shock < 50 g, 11 ms half-sine wave
Connection DIN 43650-A or terminal strip, 2-line system
5.4.2.1 Boost Pressure Sensor with Plug
89
12
2
G3/8"
Ø 30
124,7
30,5
Ø 19
PG9
SW 24
33,5
53

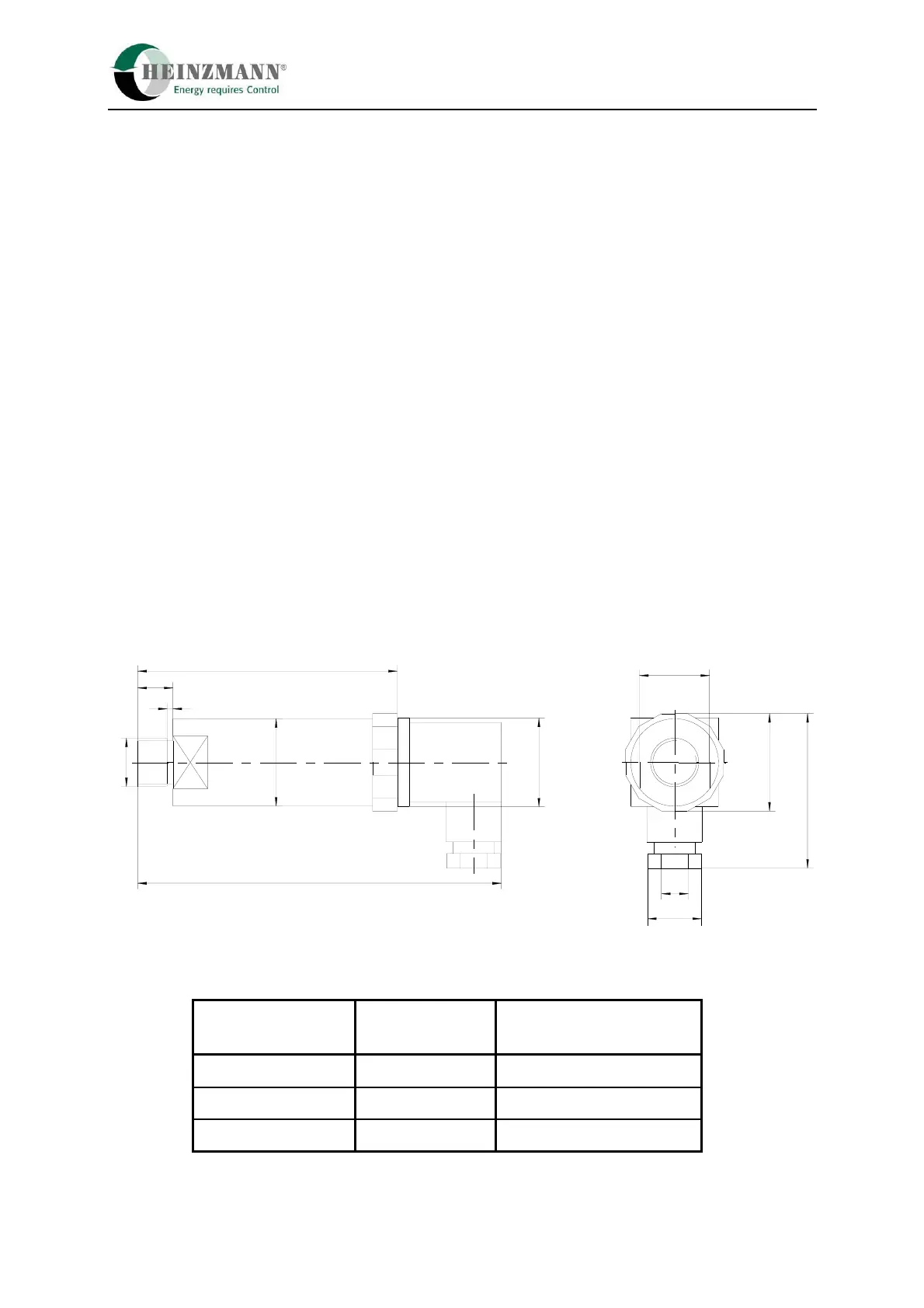

Figure 6: Boost Pressure Sensor with Plug
Boost Pressure EDV- No.
Max. Operating
Pressure (bar rel.)
DSL 01 - 2 600-00-057-00 2
DSL 01 - 5 600-00-057-01 5
DSL 01 - 10 600-00-057-02 10
