5 Sensors
PRIAMOS I 13
5.3 Cooling Medium Temperature Sensor TS 01 - 28 - PT 1000
Measuring range -50°C up to +150°C
Precision ±1.5°C
Resistance at 25 °C (R25) 1000 Ohm ±0.5 %
Maximum operating voltage 5 V
Maximum operating current 3 mA
Recommended operating current approx 1mA
Time constant in fluids approx. 13 seconds
Admissible temperature range
of connector socket -40°C up to +105°C
Protection grade IP 65
Vibration < 20 g, 10 - 300 Hz
Shock < 50 g, 11 ms half-sine wave
Tightening torque 50 Nm ±15 %
Connector SV 6 - IA - 2K (EDV- No.: 010 02 170 00)
EDV-No.: 600-00-053-00
B
A
seal ring DIN 7603-14x18 (Cu)
pin configuration:
B = -
19
SW
5
/
8
"
-
2
4
M
1
4
x
1
,
5
8
h
7
16
28
17,5
56,5
A = +

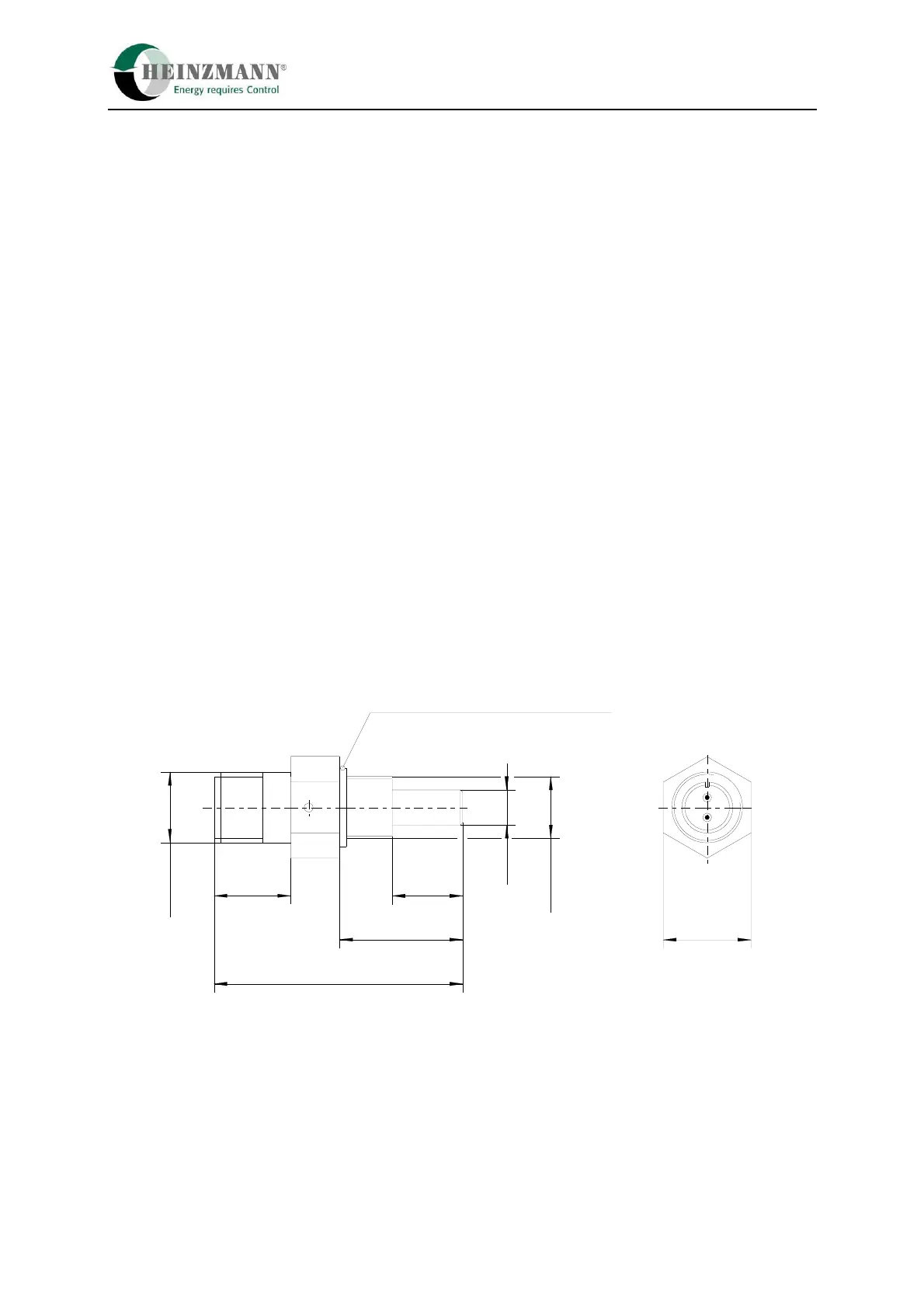

Figure 4: Temperature Sensor TS 01 - 28 - PT 1000
