5 Sensors
14 PRIAMOS I
5.4 Pressure Sensors
5.4.1 Oil Pressure Sensor
Measuring range 0 - 6 bar or 0 - 10 bar
Over pressure 15 bar resp. 20 bar
Supply voltage 10 - 34 V DC
Output signal 4 - 20 mA
Storage temperature -25°C up to +85°C
Ambient temperature -25°C up to +85°C
Oil temperature -25°C up to +125°C
Protection grade IP 65
Vibration < 20 g, 10 - 300 Hz
Shock < 50 g, 11 ms half-sine wave
Tightening torque max. 25 Nm
Connection DIN 43650-A, 2-line system
12
22
48,8 26
Ø 19
27
G1/4"
M5
SW 19

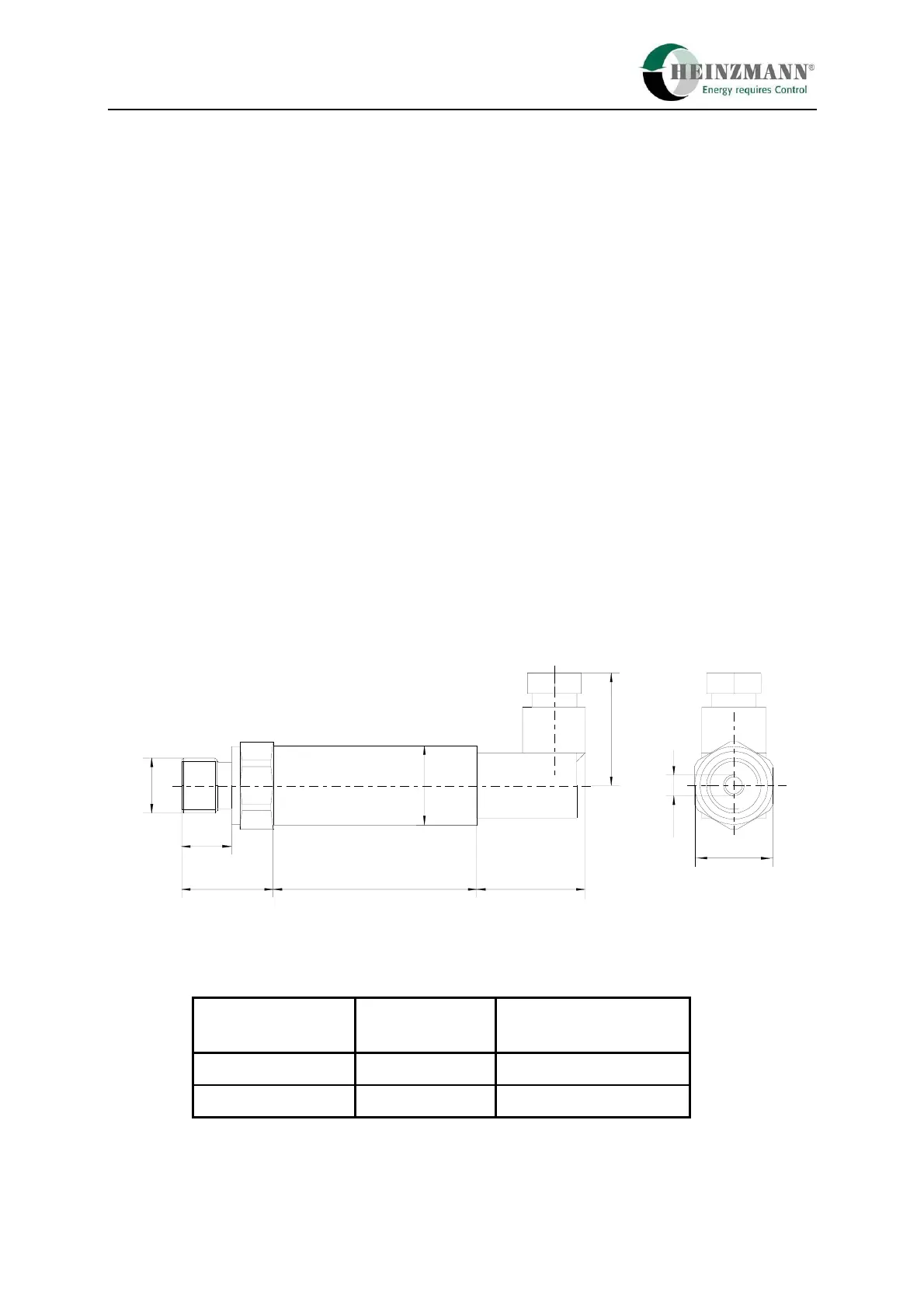

Figure 5: Oil Pressure Sensor
Pressure Sensor EDV- No.
Max. Operating
Pressure (bar)
DSO 01 - 6 600-00-058-00 6
DSO 01 - 10 600-00-058-01 10
