9 Regulating Linkage
28 PRIAMOS I
9.5 Linkage Adjustment for Carburettor Engines
For carburettor or gas engines, the length of the connecting linkage is adjusted in such a
way that with the governor in full load position the throttle valve is completely open. In
idling speed position, the elastic link must be slightly overcome. This allows adjustment of
the idle screw without changing the governor adjustment.
Patents pending
Range Voltage
for BasicSystem E
Serial No.
R
Gmb H + Co.
HEI NZ MANN
Am Haselbach 1
D-79677 S chÎnau
Germany
Telefon: (07673) 8208-0
Telefax: (07673) 82 08-88
Diese Schraube darf nicht verstellt werden!
Never turn this screw!
Ne pas toucher a cette vis!
Füllung Fuel Combustible
1
0
0
50
0
actuator
tension elastic member
displacement
angle
full load position
no load position
throttle valve
opened completely

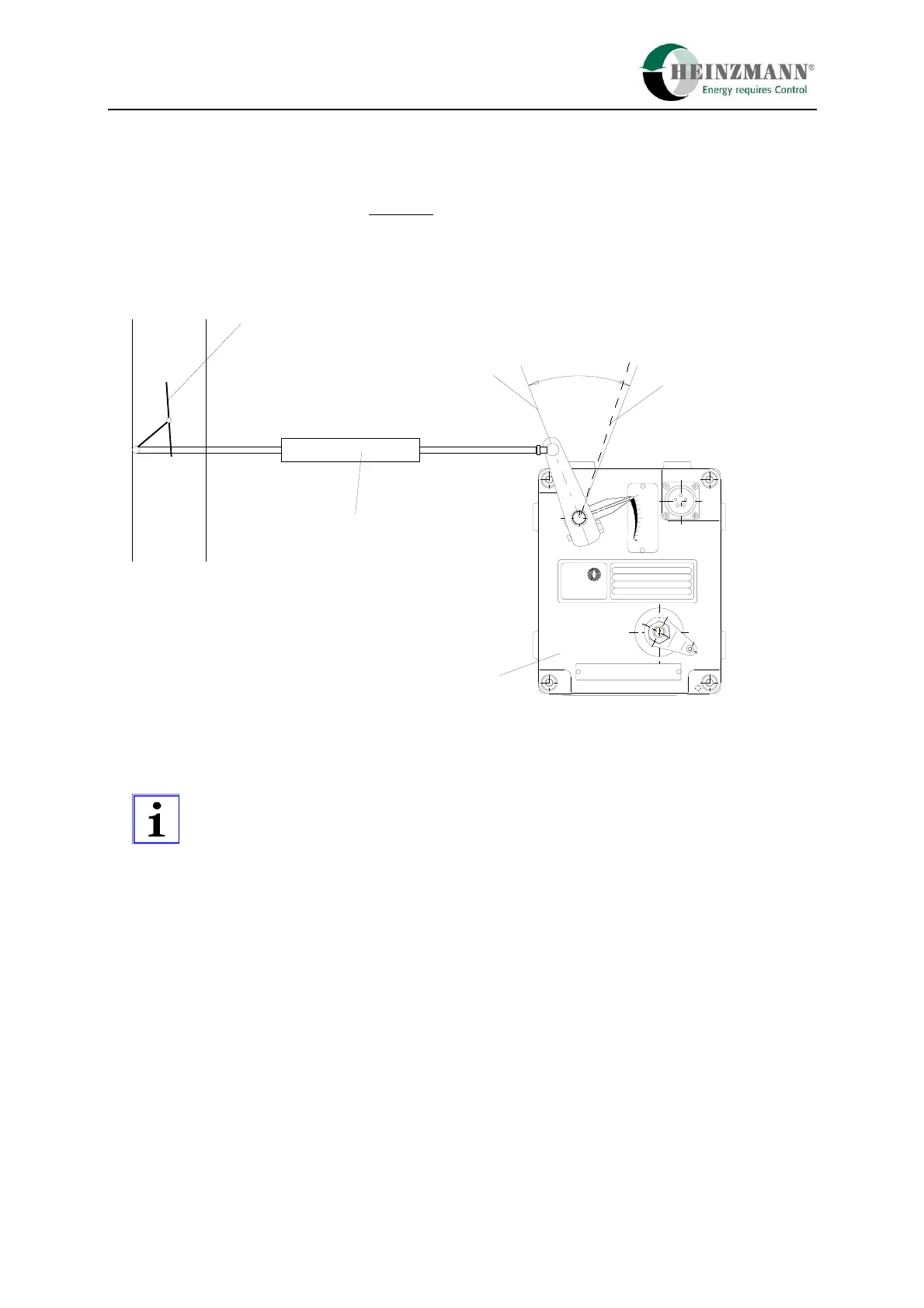

Figure 14: Linkage for Gas Engines
If carburettor or injektion pump are to the right of the governor as opposed to
their position on the drawings, then the direction of motion of the elastic link
must also be reversed.
Note
