JS07N·JS07·JS08·JS12·JS14
28
Operating Instruction
JS0407NE,JS0407NELi,JS0607,JS0607Li,
JS0607W,JS0607WLi,JS0808,JS0808Li,
JS1012,JS1012Li,JS1212,JS1212Li,
JS1414,JS1414Li
Max. slope rating, stowed position: 25%
Max. side slope rating, stowed position: 25%
JS0607E,JS0607ELi,JS0607WE,
JS0607WELi,JS0808E,JS0808ELi,JS0612,
JS0612Li,JS0612E,JS0612ELi,JS0812,
JS0812Li,JS0812E,JS0812ELi,JS1012E,
JS1012ELi,JS1212E,JS1212ELi,JS1414E,
JS1414ELi
Max. slope rating, stowed position: 30%
Max. side slope rating, stowed position: 30%
Note: Slope rating is subject to ground condi-
tions and adequate traction.
Press the drive speed button to the fast drive
speed mode.
To determine the slope grade:
Measure the slope with a digital inclinometer
OR use the following procedure.
You will need:
carpenter’s level, straight piece of wood(at
least 1 m long),tape measure
Lay the piece of wood on the slope.
At the downhill end, lay the level on the top
edge of the piece of wood and lift the end until
the piece of wood is level.
While holding the piece of wood level, measure
the vertical distance from the bottom of the
piece of wood to the ground.

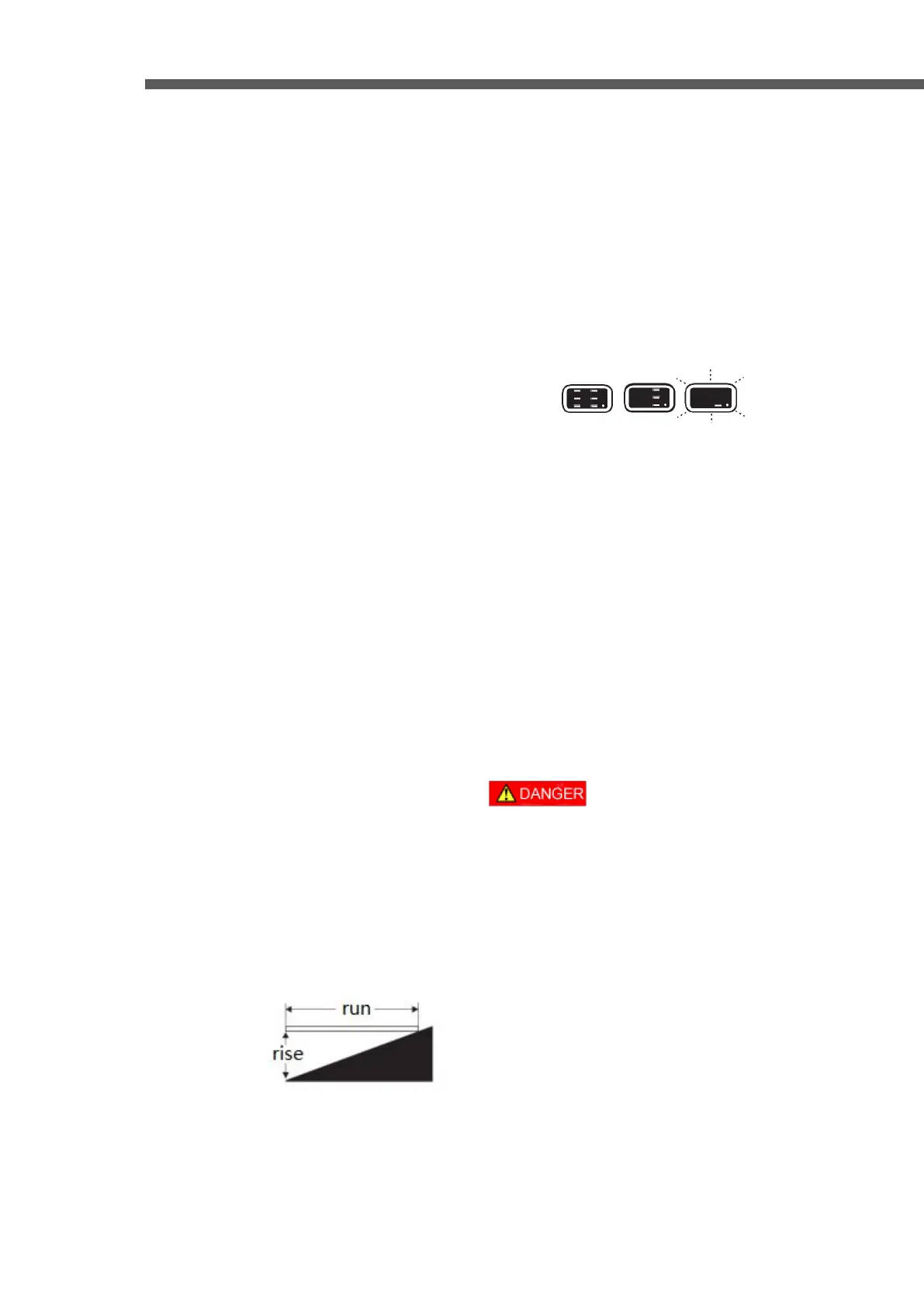

Divide the tape measure distance (rise) by the
length of the piece of wood (run) and multiply
by 100.
Example:
Run=3.6m
Rise=0.3m
0.3m ÷ 3.6m =
0.083 X 100 =
8.3 %
If the slope exceeds the maximum uphill,
downhill or side slope rating, then the machine
must be winched or transported up or down the
slope. See “Transport and Lifting” section.
Operational Indicator Codes
Operator, machine and fixed objects should
keep a safe distance. Pay attention to the di-
rection when using the controller.
Battery level indicator
Full Low
LED diagnostic reading devices used to deter-
mine the battery level.
How to Use the Safety Arm
1. Raise the platform approximately 3 m
from the ground.
2. Rotate the safety arm away from the ma-
chine and let it hang down.
3. Lower the platform until the safety arm
rests securely on the link. Keep clear of
the safety arm when lowering the plat-
form.
There will be no load when us-
ing the safety arm.
How to Fold Down the Guardrails
The platform railing system consists of a fold
down rail section for the extension deck and
one section for the main deck. All sections are
held in place by four wire lock pins.
1. Fully lower the platform and retract the
platform extension.
2. Remove the platform controls.
3. From inside the platform, remove the two
extension deck lock pins.
4. From the middle of the extension deck
railing, fold down the extension deck rail
assembly toward the rear of the unit.
