15

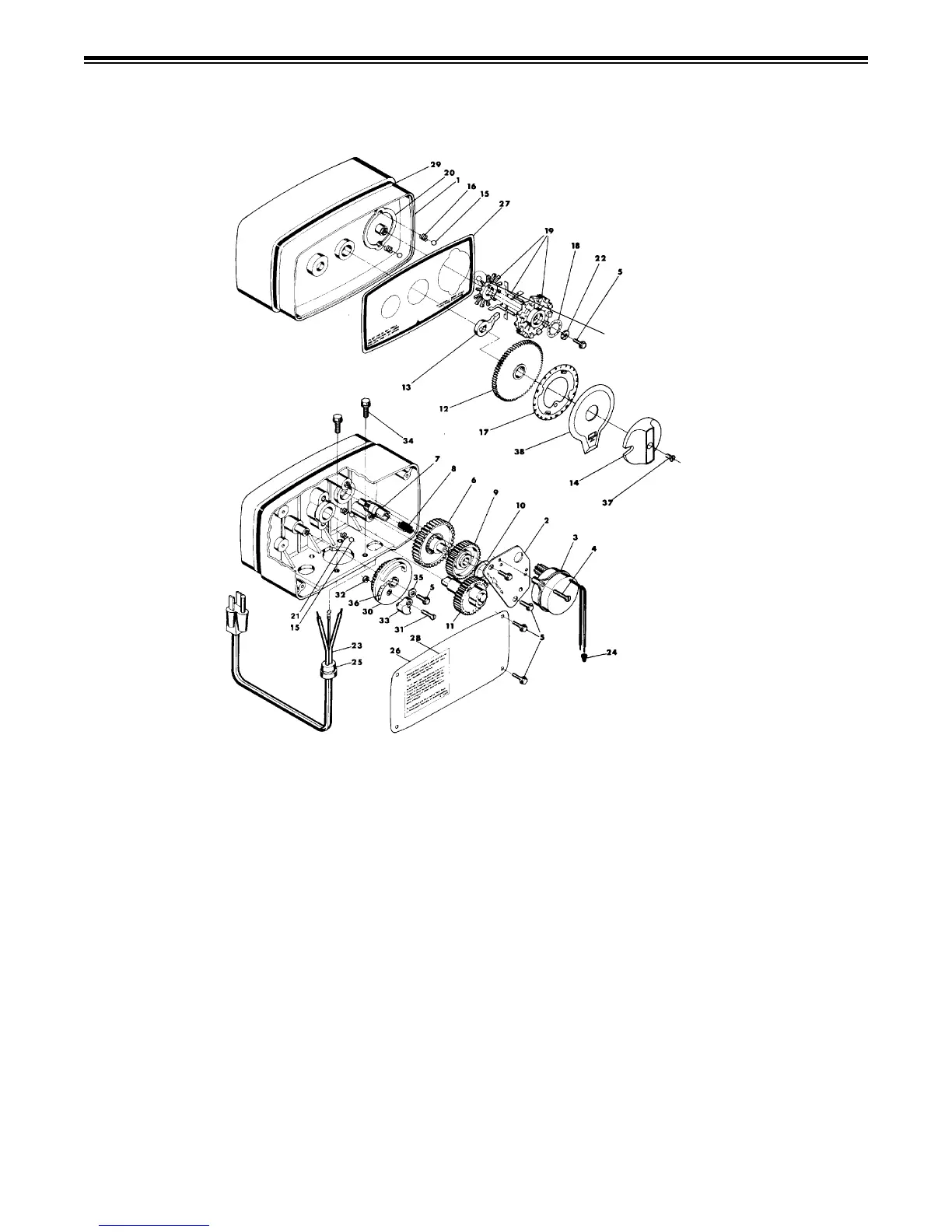

EXPRESS SERIES – CONTROL VALVE POWERHEAD ASSEMBLY
DEMAND REGENERATION MODEL
Figure 14
ITEM NO. NO. REQ'D PART NO. DESCRIPTION
1 ......... 1 ................ 101780 ........Drive Housing Assembly
2 ......... 1 ................ 102307 ........Motor Mounting Plate
3 ......... 1 ................ 102094 ........Motor - 120V., 60 Hz.
4 ......... 3 ................ 102482 ........Screw - Motor Mtg. & Grd. Wire
5 ......... 7 ................ 102468 ........Screw - Component Mtg. Hex
6 ......... 1 ................ 102306 ........Idler Gear
7 ......... 1 ................ 106492 ........Idler Shaft
8 ......... 1 ................ 106496 ........Spring - Idler
9 ......... 1 ................ 106493 ........Drive Gear
10 ......... 1 ................ 102873 ........Curved Washer
11 ......... 1 ................ 101741 ........Main Gear & Shaft
12 ......... 1 .............49-13009 ........24 Hour Gear
13 ......... 1 ................ 101745 ........Cycle Actuator Gear
14 ......... 1 ................ 101907 ........Knob - Manual Regeneration
15 ......... 2 ................ 106494 ........Ball - 1/4 Dia.
16 ......... 2 ................ 106495 ........Spring - Detent
17 ......... 1 ................ 101956 ........24 Hour Label - Silver
18 ......... 1 ................ 102461 ........Top Collector Screw
19 ......... 1 ................ 102888 ........Program Wheel Assembly -
Specify Hardness Capacity
20 ......... 1 ................ 102420 ........Program Wheel Retainer
21 ......... 1 ................ 101953 ........Cover Label - Program Wheel
22 ......... 1 .............49-11842 ........Electrical Cord
23 ......... 2 .............65-60080 ........Wire Connector
24 ......... 1 ................ 102566 ........Strain Relief
25 ......... 1 .............49-13229 ........Back Cover
26 ......... 1 .............49-14252 ........Meter Clutch Cap
ITEM NO. NO. REQ'D PART NO. DESCRIPTION
26
27 ......... 1 ................ 101955 ........Front Label - Silver
28 ......... 1 ................ 101977 ........Rear Label
29 ......... 1 ................ 101957 ........Tape Stripe - Silver
30 ......... 1 ................ 101357 ........Brine Cam Assy, 3-16
31 ......... 1 .............49-11980 ........Screw - Time Fill Cam
32 ......... 1 .............49-11081 ........Nut - Time Fill Cam Hex 8-32
33 ......... 1 .....................................Cam Segment (Sold with #30)
34 ......... 2 ................ 102467 ........Screw - Drive Mounting
35 ......... 1 ................ 102866 ........#10 Washer
36 ......... 1 ................ 101978 ........Label - "lbs of salt – 3-16
............................ 101979 ........Label - "lbs of salt – 6-32
37 ......... 1 ................ 102235 ........Drive Pinion - Program Wheel
38 ......... 1 ................ 101416 ........Clutch - Drive Pinion
39 ......... 1 ................ 102403 ........Spring Retainer
40 ......... 1 ................ 102554 ........Spring
41 ......... 1 ................ 101342 ........Flexible 8.25" Cable Assembly
42 ......... 1 ................ 101486 ........Valve Position Dial-Standard Piston
......... 1 .............49-14278 ........Valve Position Dial-Low Water Piston
43 ......... 1 ................ 101964 ........Knob Label - Silver
44 ......... 1 ................ 102462 ........Screw
45 ......... 1 ................ 102340 ........Complete Drive Assembly
46 ......... 1 ................ 101357 ........Brine Cam Assembly - 3-16
................... 49-60514-01 ........Brine Cam Assembly - 6-32
47 ......... 1 ................ 102883 ........Program Wheel with 3/4" STD Range
Gallon Label
48 ......... 1 ....... 49-60405-20 ........Program Wheel with 3/4" EXT Range
Gallon Label
