CONTROL VALVE POWERHEAD ASSEMBLY
TIME CLOCK REGENERATION MODEL
ITEM NO. NO. REQ'D
PART NO. DESCRIPTION
1 ......... 1 ................ 101788 ........Drive Housing
2 ......... 1 ................ 102307 ........Motor Mounting Plate
3 ......... 1 ................ 102094 ........Motor - 120V., 60 Hz.
4 ......... 3 ................ 102482 ........Screw - Motor Mtg. & Grd. Wire
5 ......... 8 ................ 102468 ........Screw - Component Mtg.
6 ......... 1 ................ 102306 ........Idler Gear
7 ......... 1 ................ 106492 ........Idler Shaft
8 ......... 1 ................ 106496 ........Spring - Idler
9 ......... 1 ................ 106493 ........Drive Gear
10 ......... 1 ................ 102873 ........Curved Washer
11 ......... 1 ................ 101741 ........Main Gear & Shaft
12 ......... 1 .............49-13009 ........24 Hour Gear
13 ......... 1 .............49-13011 ........Cycle Actuator Gear
14 ......... 1 ................ 101947 ........Knob - Manual Regeneration
15 ......... 4 ................ 106494 ........Ball - 1/4 Dia.
16 ......... 4 ................ 106495 ........Spring - Detent
17 ......... 1 ................ 101956 ........24 Hour Label - Silver
18 ......... 1 .............49-13429 ........Skipper Wheel Label
19 ......... 1 ................ 102899 ........Skipper Wheel Assembly-12 Day
20 ......... 1 ................ 102434 ........Skipper Wheel Ring
21 ......... 1 .............49-14457 ........Spring
ITEM NO. NO. REQ'D
PART NO. DESCRIPTION
22 ......... 1 .............49-13014 ........Regeneration Pointer
23 ......... 1 .............49-11842 ........Electrical Cord
24 ......... 2 ................ 103087 ........Wire Connector
25 ......... 1 ................ 102566 ........Strain Relief
26 ......... 1 .............49-13229 ........Back Cover
27 ......... 1 ................ 101952 ........Front Label - Blue/Silver on Black
28 ......... 1 ................ 101977 ........Rear Label
29 ......... 1 ................ 101951 ........Tape Stripe - Blue on Silver
30 ......... 1 ................ 101357 ........Brine Cam Assy, 3-18
31 ......... 1 .............49-11980 ........Screw - Time Fill Cam
32 ......... 1 .............49-11081 ........Nut - Time Fill Cam
33 ......... 1 .............49-13169 ........Cam Segment (Sold with #30)
34 ......... 2 ................ 102467 ........Screw - Drive Mounting
35 ......... 1 ................ 102866 ........#10 Washer
36 ......... 1 ................ 101978 ........Label - "lbs of salt – 3-18
......... 1 ................ 101979 ........Label - "lbs of salt – 6-33
37 ......... 1 ................ 102461 ........Top Collector Screw-Knob
38 ......... 1 ................ 101486 ........Valve Position Dial-Standard Piston
39 .................................................Not Assigned
40 ......... 1 ................ 102334 ........Complete Drive Assembly-12 Day
41 ......... 1 ................ 101357 ........Brine Cam Assembly

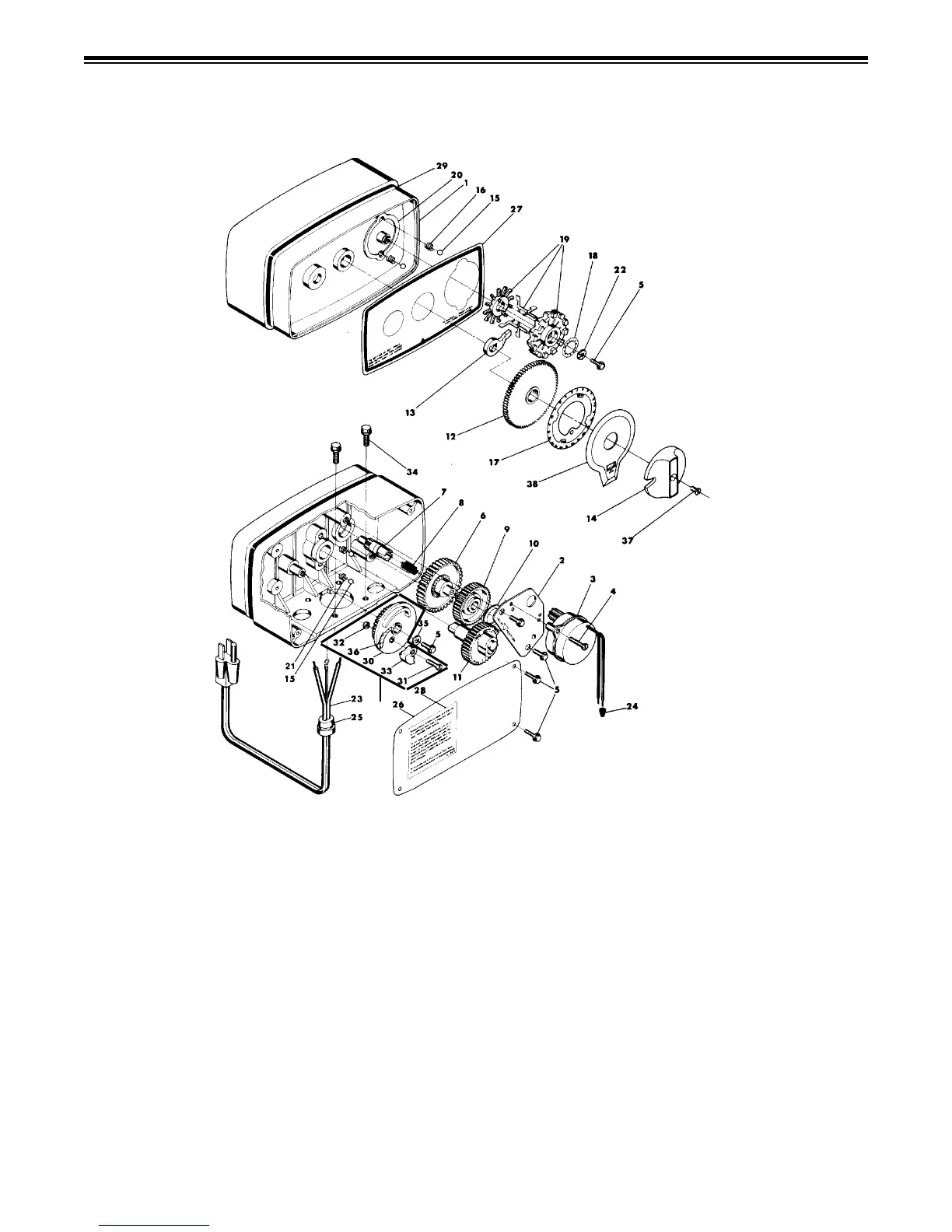

Figure 16
