HEOS Link - Connecting Audio Playback Device; Connecting USB Storage Device

o

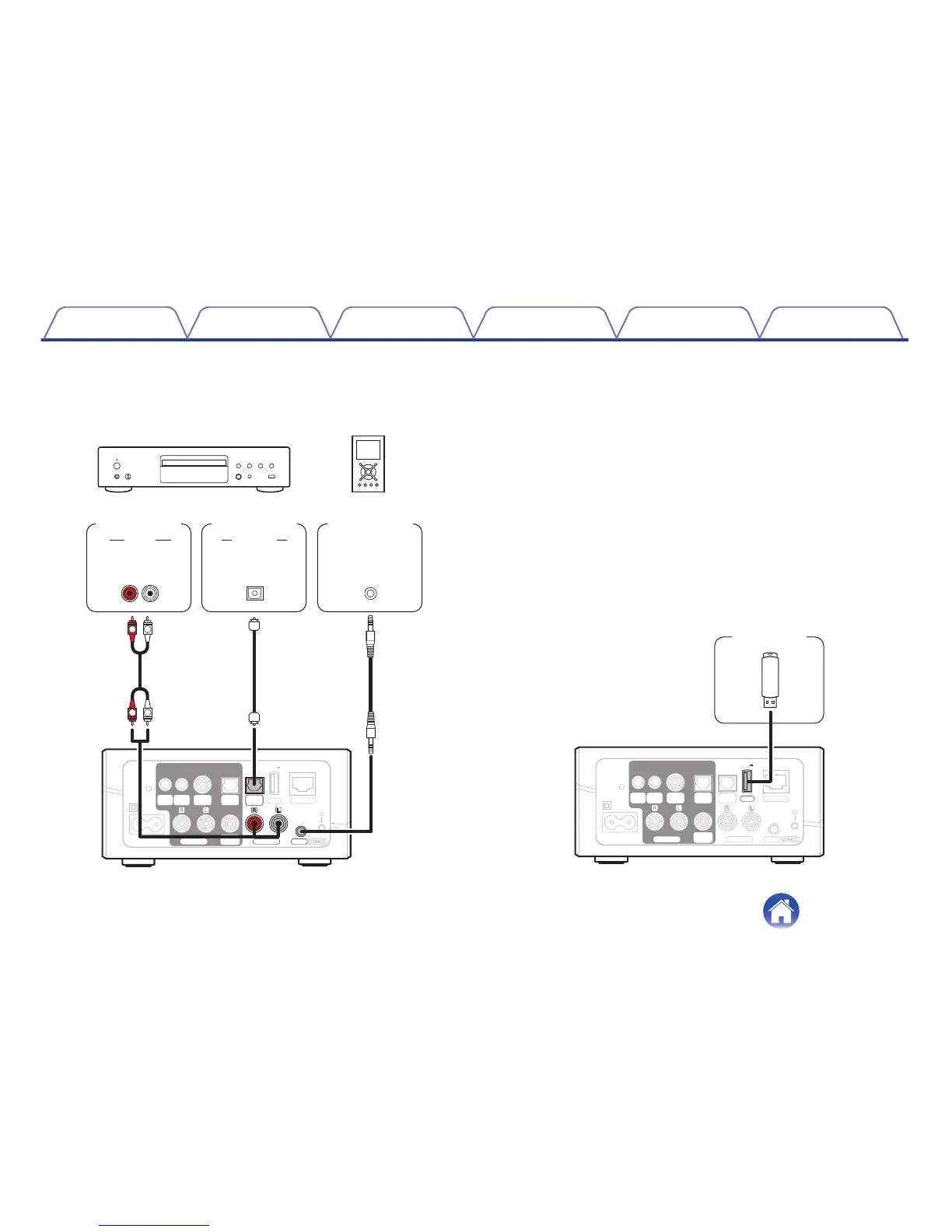

Connecting an Audio Playback Device
Connect the LINE IN, AUX IN or OPTICAL IN input to an audio
playback device (CD player, portable music player, etc...) using the
appropriate cables.
.
DC12V
150mA
MAX.
USB
NETWORK
5V1A
WOOFER
SUB
OUT
OPTICAL
PRE OUT
OUT
COAXIAL
OUT
TRIGGER
OUT
IR
RESET
AC IN
LINE IN
IN
OPTICAL
AUX IN
R
L
R
L
AUDIO
AUDIO
RL
OUT
OUT
OPTICAL
AUDIO
HEADPHONE
Portable
audio
Digital
device
Analog
device
o
Connecting a USB storage device
Connect a FAT32 formatted USB mass storage device containing
digital music files to any available USB port.
DC12V
150mA
MAX.
IN
OPTICAL
NETWORK
AUX IN
LINE IN
WOOFER
SUB
OUT
OPTICAL
PRE OUT
OUT
COAXIAL
OUT
TRIGGER
OUT
IR
RESET
AC IN
USB
5V1A
USB memory
device
