HermanMiller Eames - Step 7; 7.1 Place retainer ring; 7.2 Place locating washer; 7.3 Insert cap screw

HermanMiller Eames
®
Table Assembly Instructions3

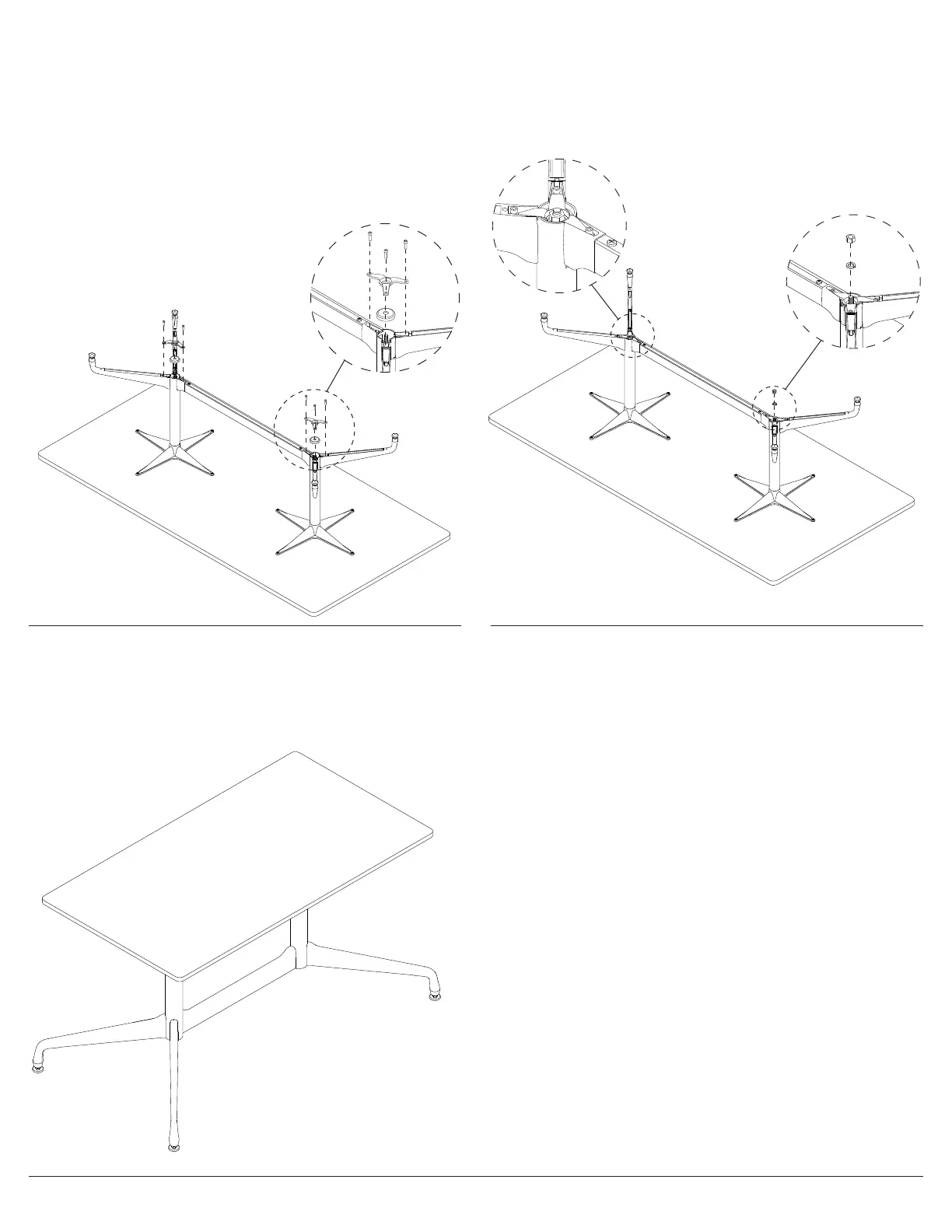

7. 1
Place ratainer ring in slot on the legs and spreader assembly.
Note: Retainer ring fits inside of tube
Step 7
7. 2
Place locating washer over legs and spreader assembly.
7.3
Insert cap screw and tighten
8.1
Place lock washer and threaded nut on threaded rod and tighten the nut to 45 ft lbs.
Step 8
9.1
Place table in upright position.
Step 9
