Hermann Supermicra 23 E - Components of the Gas Boiler SUPERMICRA 24 SE - 30 SE

31
Regulation and servicing
for the technician
1 Flue pressure switch
2 Safety thermostat for
max. water temperature
3 Expansion vessel
4 Ignition electrode
5 Domestic exchanger
6 Gas valve
7 Priority pressure sensor
8 Hydraulic 3-way valve
9 Water supply valve
10 Drain valve
11 Sensor for temperature control
12 Burner
13 Flame sense electrode
14 Primary heat exchanger
15 Automatic venting device
16 Fan
17 Sealed chamber
18 Pump
19 Safety pressure switch
for min. water pressure

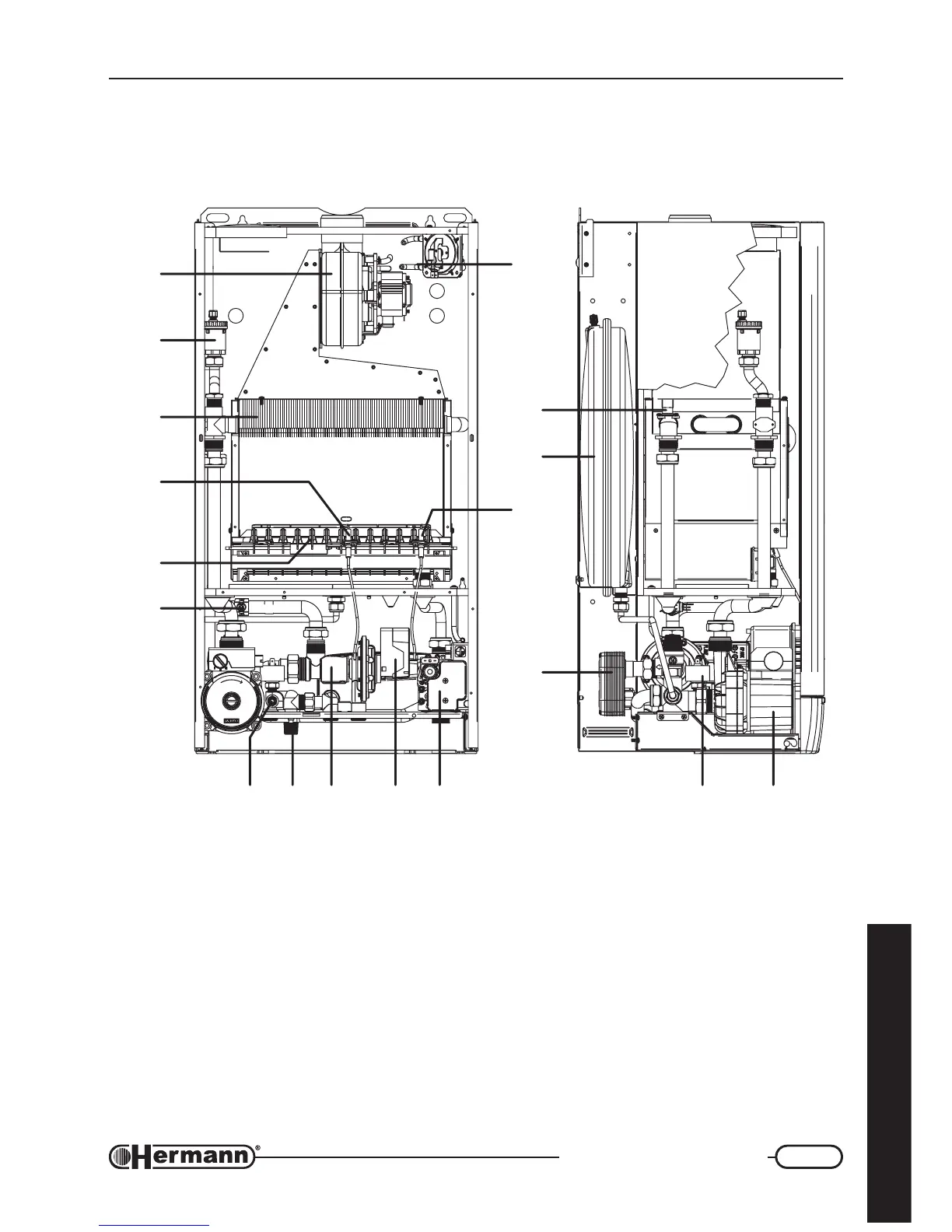

Components of the gas boiler
SUPERMICRA 24 SE - 30 SE
1
2
3
5
19
14
12
11
16
15
18678910
17
708_R03
4
13
