42

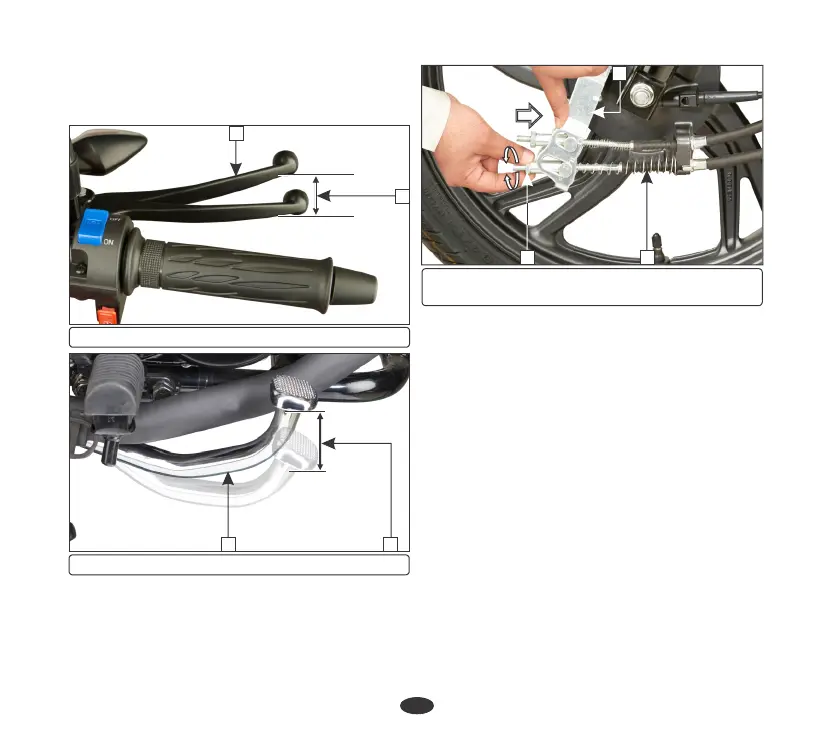

(1) Front brake lever (3) Free play:10-20 mm
3
1
The distance, the front brake lever (1) and
integrated brake pedal (2) moves before each
brake starts to engage is called free play (3).
(2) Rear brake pedal (3) Free play: 20-30 mm
2
3
(d) Front brake cable (A) on “F” side
Adjustment
•
Turn the first adjuster nut (5) till you cannot
turn it by hand.
•
Push the integrated brake arm (4) by hand
in the direction as shown.
(i) Decrease free play (ii) Increase free play
(4) Integrated brake arm (5) First adjuster nut
(i)
(ii)
5
F
C
•
Turn the second adjuster nut (6) until a gap
is created between joint (7) and the slot on
the first side in integrated brake arm.
•
Push the integrated brake arm (4) by hand
in the direction as shown.
• Check the free play of front brake lever.
•
After ensuring the gap, turn the second
adjuster nut counterclockwise by half
rotation.
FREE PLAY: 10-20 mm
• If the free play is more than 20 mm further
turn the adjuster nut to obtain desired free
play.
(e) Integrated brake cable (B) on “C”
side.
4
A
