(6) Second adjuster nut (7) Joint
(I) Decrease free play (ii) Increase free play
(i)
(ii)
B6
7
F
C
NOTE
“F” & “C” is marked on integrated brake arm.

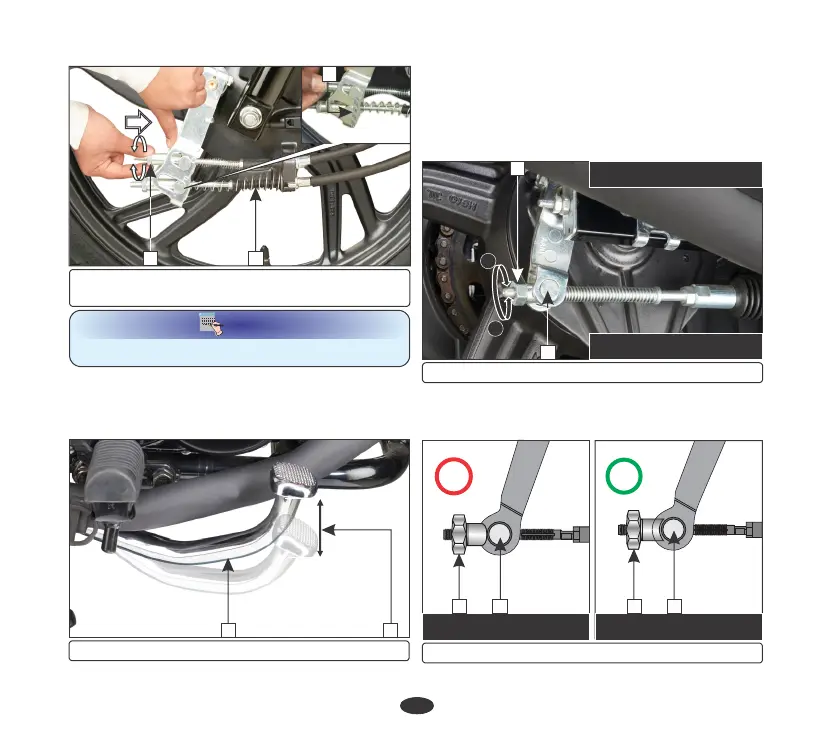

Adjustment
•
Park the vehicle on its main stand.
(f) Rear brake inspection
•
If adjustment is necessary, turn the rear
brake adjusting nut (3).
•
Measure the brake pedal free play (1)
moves before the brake starts to take hold.
Free play (2) should be 20-30 mm.
(1) Rear brake pedal (2) Free play: 20-30 mm
(3) Adjusting nut (4) Brake joint pin
3
(A) Decrease free play (CW)
4
A
(B) Increase free play (ACW)
B
CW- Clockwise, ACW- Anticlockwise
ü
3
(A) Cut-out not seated (B) Cut-out seated
3
4
4
(3) Adjusting nut (4) Brake joint pin
•
Make sure that the cut-out on the adjusting
nut is seated on the brake joint pin (4) after
the final adjustment has been made.
1
2
To Next Page
