The checking or adjusting of valve
clearance should be performed while the
engine is cold. The clearance will change
as the engine temperature rises.

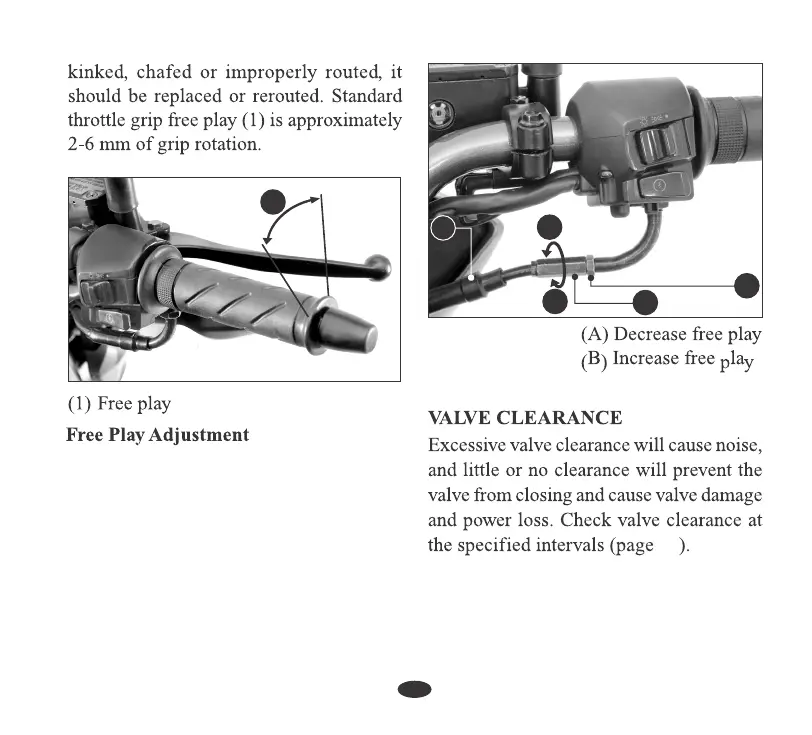

Direction A - to decrease the free play
Direction B - to increase the free play
Slide the grommet (2), loosen the lock nut
(3) and turn the adjuster (4). If required
adjust the free play by turning the adjuster.
(2) Grommet
(3) Lock nut
(4) Adjuster
