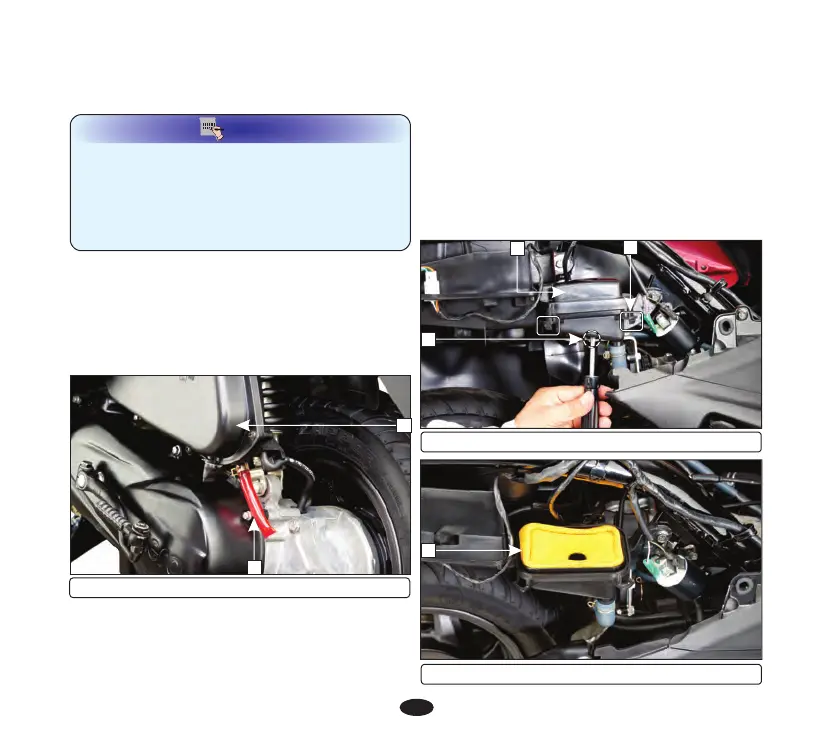

AIR CLEANER DRAIN TUBE CLEANING
•
Reinstall the drain tube.
Refer to the safety precautions (page 46).
•
Remove the drain tube (1) from the air
cleaner assembly (2) and drain deposits in
to a suitable container.
Service more frequently when riding in rain, at
full throttle or after the vehicle is washed or
overturned. Service if the deposit level can be
seen in the transparent section of the drain tube.
51
(1) Drain tube (2) Air cleaner assembly
2
1
•
(page 32)Install the left floor side cover .
•
left side body cover (page 30)Install the .
•
Install the air cleaner cover.
•
Replace air cleaner element once in every
15000 km or early replacement may be
required when riding in dusty areas.
•
At 12000 km inspect if air cleaner element
is choked. If found choked, replace the air
cleaner element to keep the engine healthy.
NOTE
(1) Screw (2) Tabs (3) Secondary air filter cover
1
3
2
(4) Secondary air cleaner element
4
Refer to the safety precautions (page 48).
•
Release the tabs (2).
Secondary air cleaner element cleaning
•
Remove the screw(1).
The air cleaner element should be serviced at
regular intervals (pages 47). Service more
frequently when riding in unusually wet or
dusty areas.
SECONDARY AIR SUPPLY SYSTEM
•
Remove the right side body cover (page 30).
