Battery storage
•
If in case your vehicle is not used for more
then a month remove the battery, fully
charge and store in a cool and dry place.
•
If the battery is expected to be stored for
more then two months, ensure to fully
charge the battery once in a month.
•
Always ensure the battery is fully charged
before installation.
•
Ensure the battery leads are properly
connected to the battery terminals during
installation.
Battery removal
•
Remove the front upper cover (page 31).
•
Dislodge fuse boxes (1).
•
Remove the battery clamp (2) by removing
the bolt (3).
•
Disconnect the (-)ve terminal lead (4) from
the battery first, then disconnect the (+)ve
terminal lead (5).

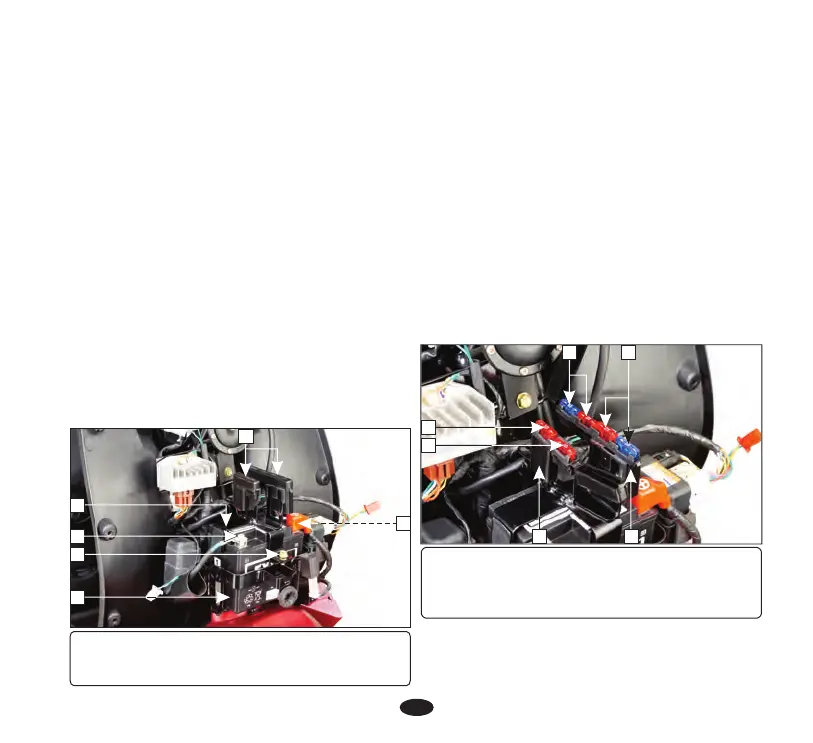

(1) Fuse boxes (2) Battery clamp (3) Bolt
(4) (-)ve terminal (5) (+)ve terminal
(6) Battery
4
6
Battery installation
Spare fuse (4) : 10A
• Check the bolts and other fasteners are
secured properly.
• Reinstall in the reverse order of removal. Be
sure to connect the (+)ve terminal first, then
the (-)ve terminal.
The fuse holders (A) and (B) placed above
the battery which consist of main fuse and
spare fuse.
• Remove the battery (6).
(A): Main fuse (1) : 15A and 10A
Spare fuse (2) : 15A and 10A
FUSE REPLACEMENT
(B): Main fuse (3) : 10A
(A) & (B): Fuse holders
(1) Main fuse : 15A & 10A
(2) Spare fuse : 15A & 10A
(3) Main fuse : 10A (4) Spare fuse: 10A
B A
1
5
3
2
3
4
2 1
