HESA INFORMA 600 - Connections

Terminal F unction
Earth
Earth
(
see remark
)
T Local phones
T Local phones
L Phone line
L Phone line

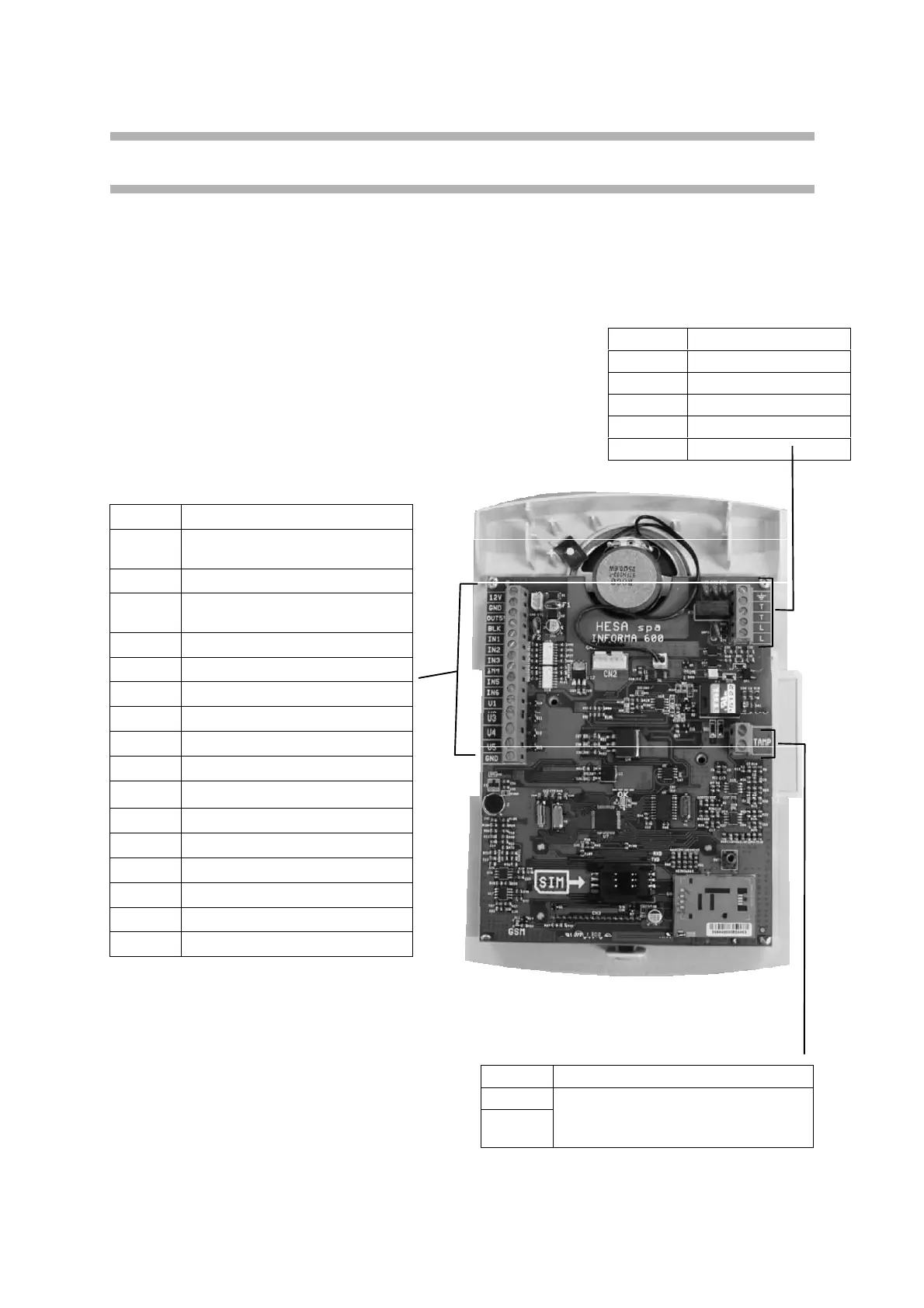

CONNECTIONS
Terminal board 2
IMPORT ANT! I n order to correctly operate the dialler, it is necessary
to make the connection with an efficient earth bonding point
Terminal board 1
Terminal F unction
12V
Power supply positive from
11.5Vc.c. to 13.8Vc.c
GND
Power supply negative
OUT5
5Vc.c. output for
input activation
BLK
Block input
IN1
Channel 1 input
IN2
Channel 2 input
IN3
Channel 3 input
IN4
Channel 4 input
IN5
Always-GSM input*
IN6
Remote interrogation input
U1
Output 1
U2
Output 2
U3
Phone line failure output
U4
GSM failure output*
U5
Programmable output
GND
Power supply negative
* Only in PSTN + GSM version
Terminal board 3
Terminal
F unction
T AMP
T AMP
Tamper for anti-opening and anti-
removal for N.C. contact container
4 INFORMA 600 - Multifunction phone dialler with voice synthesis
