HESA INFORMA 600 - Connection Example

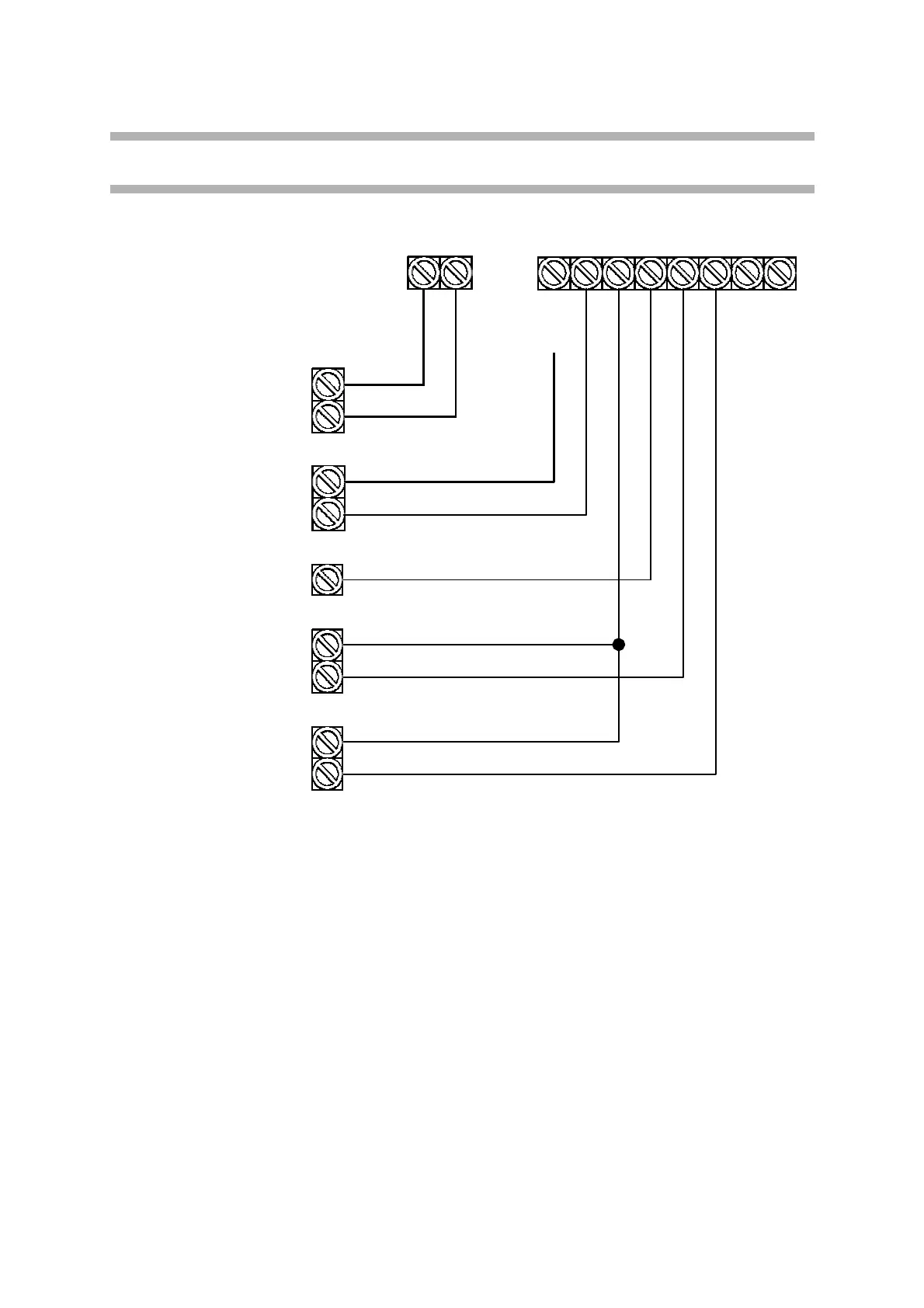

CONNECTION SAMPLE
TAMP 12V GND OUT5 BLK IN1 IN2
Alarm central unit
Tampering area
24 hours
Ancillary +
supply 12Vc.c. --
Central system
Status output
Central unit C
ALARM relay
N.C.
Normally closed input 1
PGM (*) relay output C
of the central unit
Normally open input 2
N.A.
(*) for example “no network connection”, “low battery”, etc.
