User manual for poly-phase meter
38

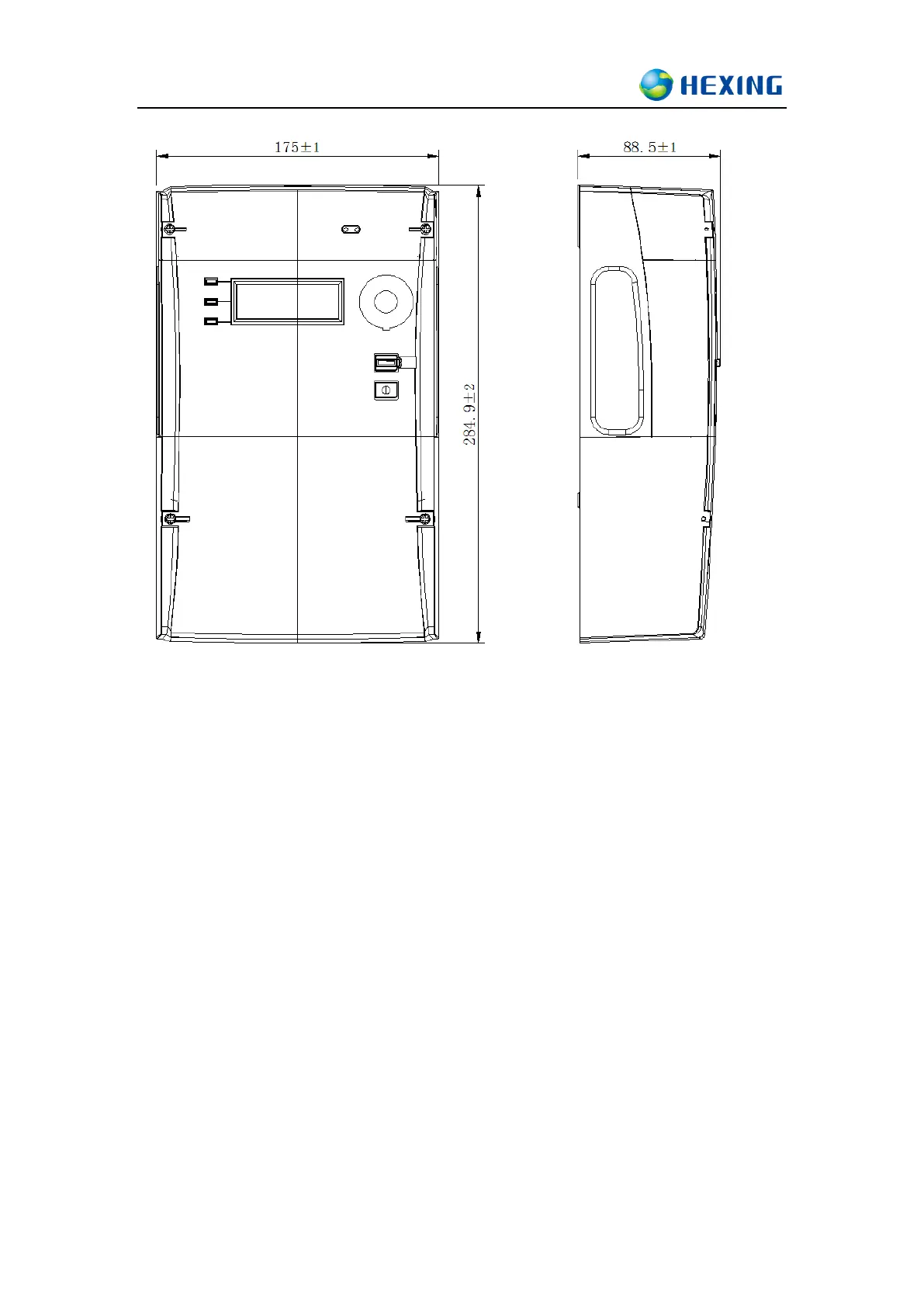

Dimension of smart meter(Extra long terminal cover)
Width------------------------175.0 mm
Height -----------------------284.9mm
Depth ------------------------88.5mm
Weight-----------------------1.28kg
Installation dimension drawing
