498-1084 22 HRD060D Diesel Generator
Operation
Pre-Operation Checks

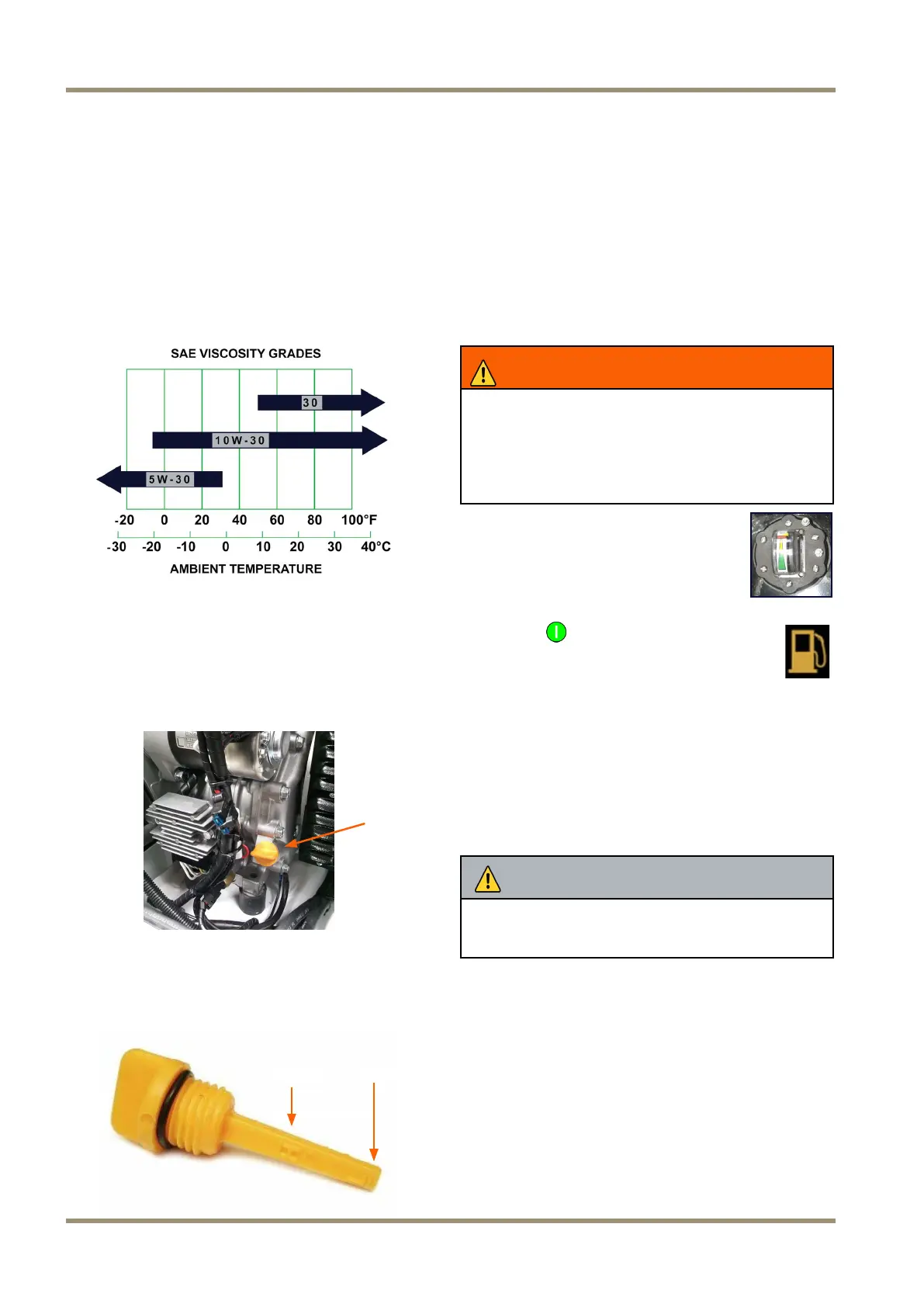

Engine Oil
Check the oil level BEFORE EACH USE with the
generator on a level surface and the engine stopped.
SAE 10W-30 API grade CD or higher is recommended
for general, all temperature use. Other viscosities
shown in the chart may be used when the average
temperature in your area is within the indicated range.
To check the oil level:
1. If the generator has been running, wait for 10 mins
to allow the oil to drain back into the oil pan.
2. Access the engine via the Service Access
3. Remove the oil ller cap / dipstick (a) and wipe the
dipstick clean.
(a)
4. Insert the ller cap/dipstick back into the dip tube
and then remove again, checking where the oil
level lies on between the minimum and maximum
positions on the dip stick.
Max
Min
5. If the level is low, top up with the funnel supplied
to make topping up easy and clean.
Oil Capacity: 1.65 Litres
Replace the engine oil after the rst 50 hours, then
every 200. When changing the oil or topping-up,
use oil of a grade suitable for the prevailing ambient
temperatures (see table in engine handbook).
Fuel
WARNING
Diesel is highly ammable and explosive.
You can be burned or seriously injured when
handling fuel.
Stop the engine, keep heat, sparks, & ames away.
Handle fuel only outdoors.
Wipe up spills immediately.
The fuel level can be checked using the
visual sight gauge in the base of the gen-
erator. If this indicator is in the red, refuel.
It can also be checked by activating the
DSE3110 control module and pressing the green Run/
Start Button
once. If the fuel is low the
Low Alarm indicator will be lit and the
generator will shutdown to prevent air locking
in the fuel system.
To refuel.
1. Ensure that the engine is stopped
2. Remove the fuel tank cap.
3. Rell the fuel tank avoiding spilling fuel.
4. Do not ll above the upper limit mark.
NOTICE
Fuel can damage paint and plastic. Be careful not to
spill fuel when lling your fuel tank. Damage caused
by spilled fuel is not covered under warranty.
5. After refuelling tighten the fuel cap securely.
Fuel Capacity: 26 Litres
General
Check that the generator is located on level ground
and in an open space with free air ow on all sides, at
least one metre from other equipment and buildings,
and clear of any combustible material.
