498-1084 18 HRD060D Diesel Generator
Operation
Operation
The guidelines for operating the generator are outlined
in the section.
The HRD060D is resiliently enclosed within an
acoustically treated housing providing noise
attenuation. A large lift up lid provides access for ease
of servicing and maintenance in a tight space.
The HRD060D is congured to be operated locally at
the set but can be provided with an optional remote
start controller.
The At-Set operation utilises a DSE3110 controller
that monitors the engine condition and provides
warning information about the generator.
If congured for remote start stop operation HGI
recommend the use of the HGI CN222 remote start
controller which has a simple push-button stop /
start and programmable timer so that once started
the generator will run for a specied period and then
shutdown. This is typically set at 1 hour.
NOTICE
For safety reasons, the battery negative lead will be
disconnected prior to delivery. It is recommended
that this action is repeated when moving the
generator or for long term storage.

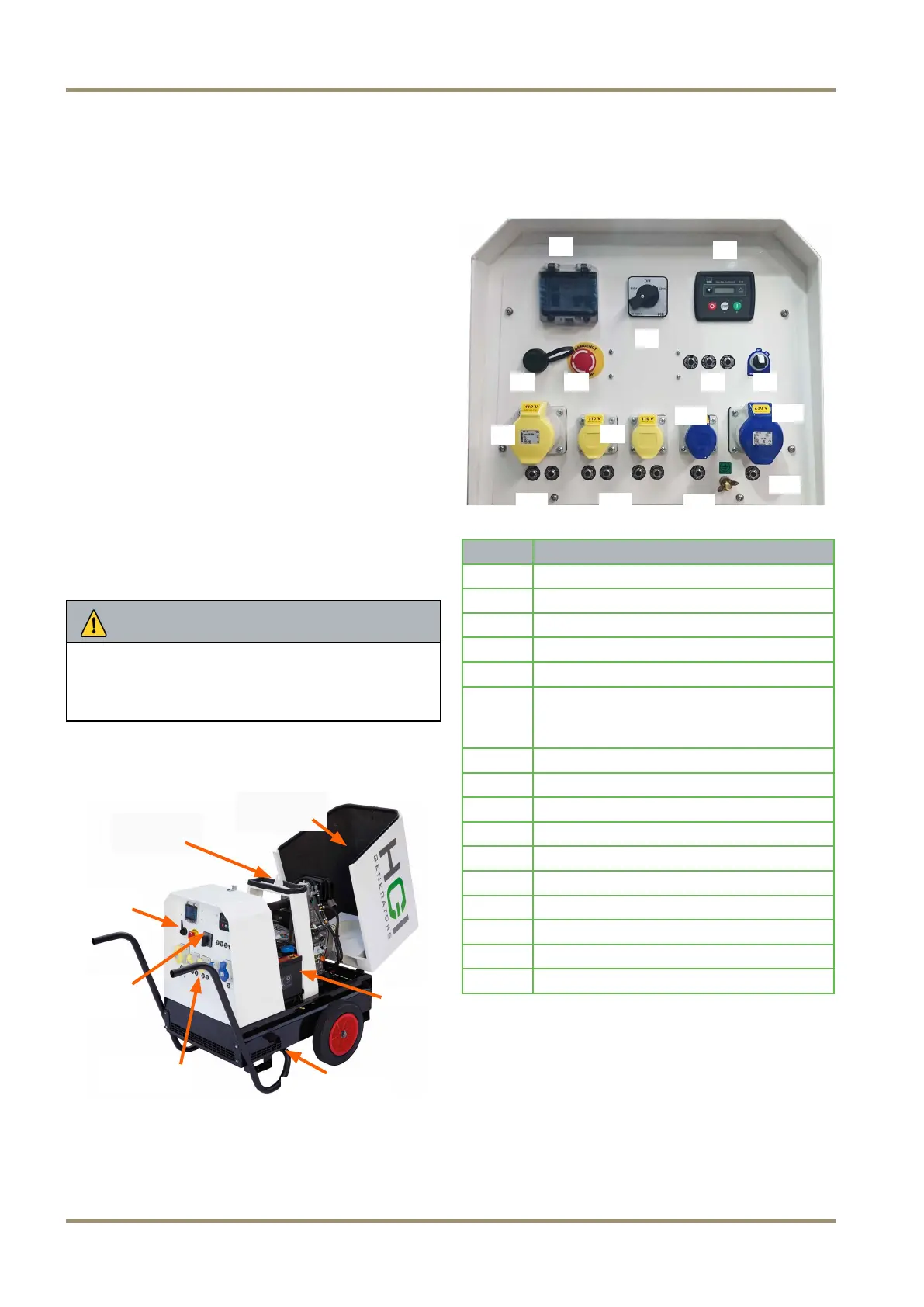

Generator Layout
Control Panel
The control panel is at the rear of the generator:
(1)
(2)
(3) (4)
(5)
(6) (7)
(8)
(9)
(10)
(11)
(12) (13)
(14)
(15)
(16)
Item
Description
1
Main Output MCB and RCD
2
DSE3110 Control Module
3
Remote Start / AMF Panel Connection
4
Emergency Stop Button
5
Voltage Selection Switch
6
DC Isolation Fuse
Control Module Fuse
Remote Connection Fuse
7
DC Isolator Switch (SW1)
8
32A 110V output socket
9
2 x 16A 110V output sockets
10
16A 230V output socket
11
32A 230V output socket
12
30A MCBs 32A 110V Socket Protection
13
15A MCBs 16A 110V Socket Protection
14
15A MCB 16A 230V Socket Protection
15
Earth Stud
16
30A MCB 32A 230V Socket Protection
DSE3110 Control Module
The control panel has a Deep Sea Electronics 3110
engine and generator management system which
combines engine management, condition monitoring
and general operational control of the machine. It is
designed for ease of use and provides information via
the LCD display which is accessed through a simple
scroll menu system.
Control
Panel
Lifting
Beam
Exhaust Outlet
Lift Off
Cover
Output
Sockets
Remote
Connection
Battery
