CN222 Remote Control Instructions
The Harrington Generators International (HGI)
CN222 Remote Control is designed to provide
remote starting and stopping of generators.
The CN222 has large easy to use push-button
controls. Green to Run and Red to Stop.
The CN222 also contains a timer so that the
generator can be scheduled to run for the
programmed duration e.g. 1.5h hours. See
Programming the Timer to set the duration.
Safety
HGI’s CN222 is designed to give safe and
dependable service if operated according to
instructions.
Notice
• Ensure that all operators read these
instructions prior to use.
• Check that covers are in place and secure.
• Check visually the integrity of all cables and
connectors.
Warning
• Check that the generator is positioned such
that hot exhaust gases will not cause damage
to the CN222.
Fixing

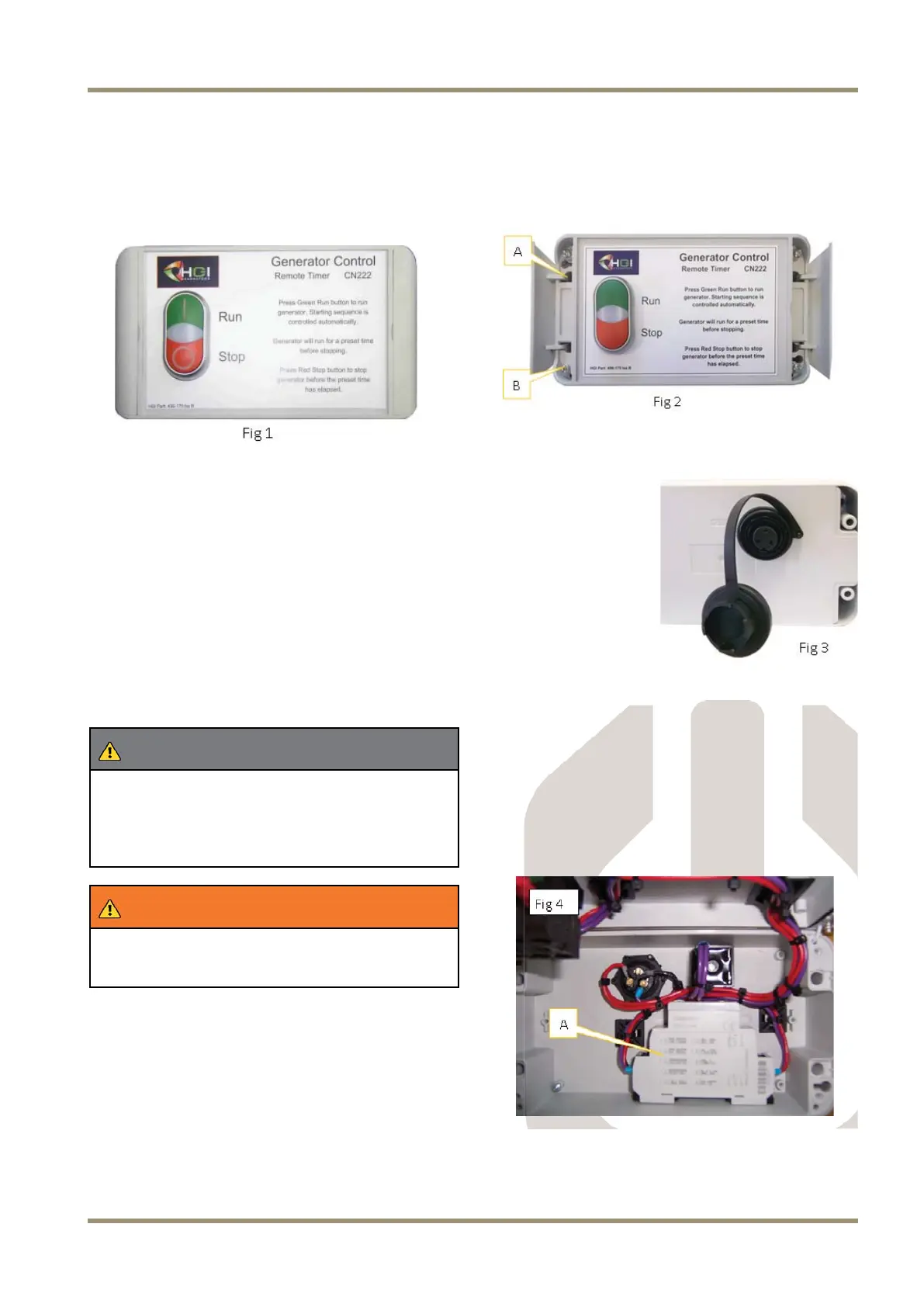

The CN222 remote start/stop timer module (Fig 1) is
a small light grey plastic box measuring 8” x 4½” and
easily integrated into a Cabin interior.
The module xes to the cabin with 2 or 4 screws
(Item A, Fig 2) which are housed behind 2 hinged
panels. The hinged panel also hides the 4 screws
securing the top plate in place.
Connections
The modules umbilical
cord is a three wire
cable that connects
via a plug and socket
behind the module
(Fig 3). The output
cables inside the box
are Black to Earth,
Purple to Neutral and
Red to Live should you
need to disconnect the
socket.
Programming the Timer
The module features a unique timer mechanism
which automatically turns the generator off after a pre
set time. This saves the generator needlessly running
when no one is in the cabin. The ‘run on’ timer is
adjustable from 1 second to 10 days. The factory
setting is one hour. Please do not alter the other
‘function’ settings.
