Qmini series industrial GIS data collector manual
- 15 -
take out the touch pen
Gently dig,take out the touch pen

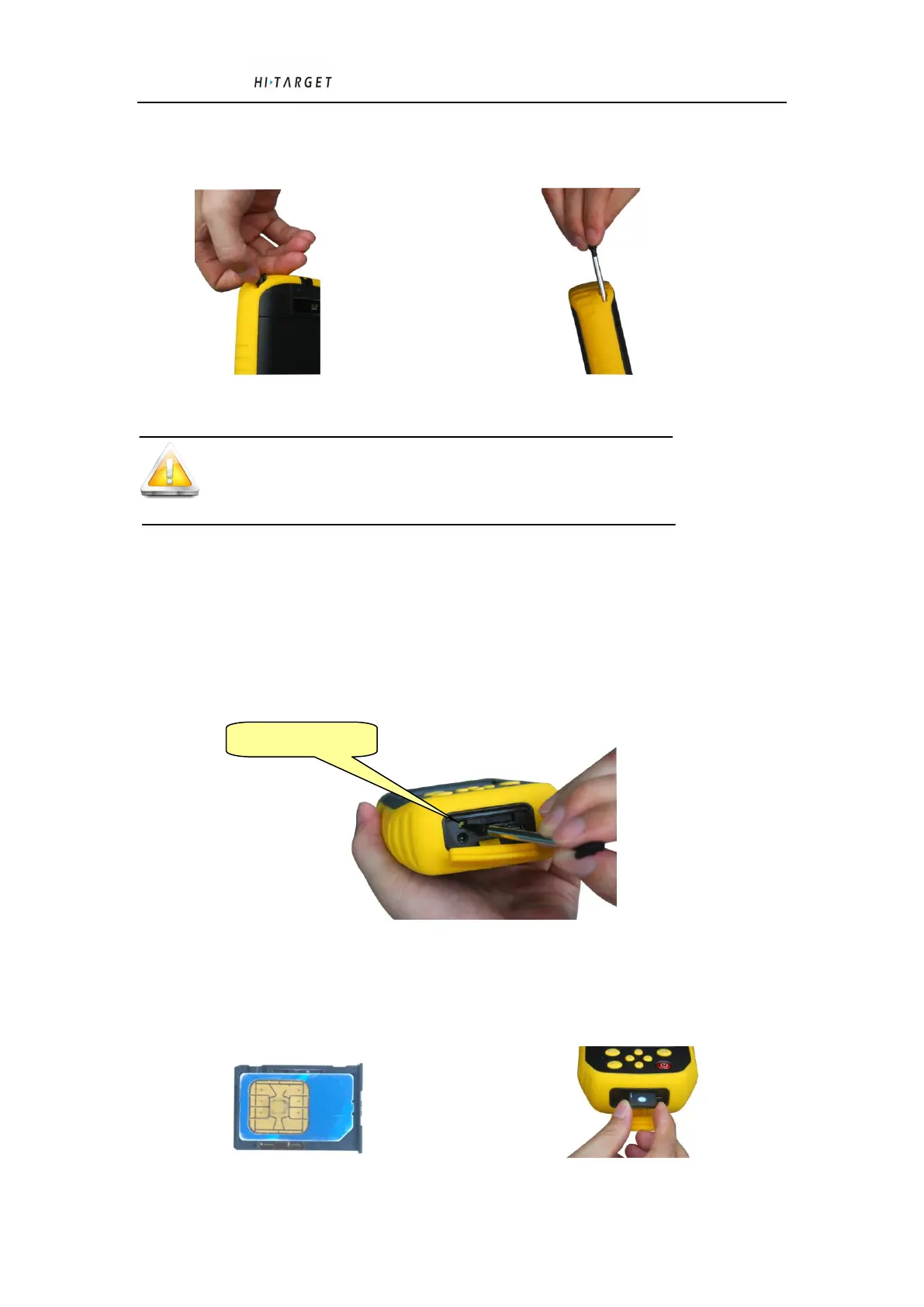

Figure 4-2 put the touch pen in Figure 4-3 take the touch pen out
Tips: Don’t use more power when taking it out or putting it in
4.4 3G card
3G card is currently used for the Qmini 3 and Qmini 3P
1. Install the 3G card
Gently dig the yellow protective cover of interface, there is an oblong open mouth as card socket.
Figure 4-4 installation diagram
2. Figure 4-4, there is a yellow button in the left of 3G card. Press it, and the 3 G card’s cassette will
be popup, take the card out, install the 3G card in the cassette. Listen to the sound which plastic spring
stuck. It shows that installing already. Figure 4-5.
Figure 4-5 installation diagram Figure 4-6 installation diagram
