Qmini series industrial GIS data collector manual
- 16 -
3 .The metal side of 3G card's will be down, put the 3G in the open mouth, Figure 4-6.
4. Cover the protective cover, finish the installation.
Take out the 3G card
1、Gently dig the cover,Press the yellow button, the 3G card’s cassette will be popup, Figure 4-7.
2、Take out the cassette,there is a round,gently push the 3G card, see chart 4-8, take out the 3G
card.

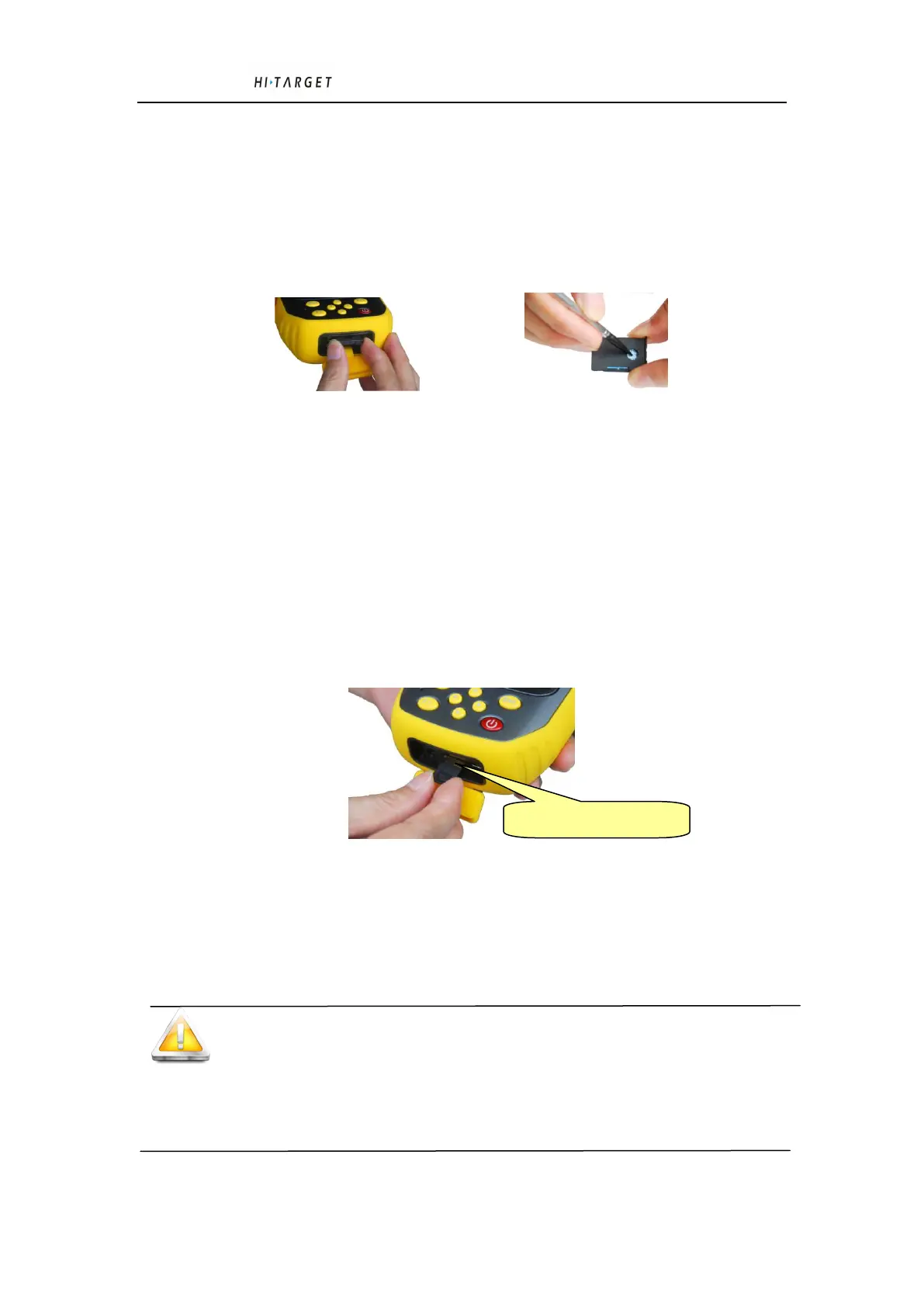

Figure 4-7 disassembling diagram Figure 4-8 disassembling diagram
4.5 MicroSD card
Install the MicroSD card
1.Open the cover at the bottom, there is an oblong open mouth as MicroSD card socket.
Please noted the MicroSD card’s metal surface should upward.Plug the MicroSD's card to plughole
until the MicroSD is completely in the plughole.The edge of MicroSD is parallel to the card trough.
Figure 4-9 MicroSD card
2.Take out the MicroSD card
Firstly, push the card forward, the card will be popup half automatically.take MicroSD out
Tips: MicroSD card, there is other name. It is TF card. It is Small size of external flash
memory expansion card, usually use in Microphone and PDA. User note separating
from the ordinary card when purchasing. Normal card's size is larger than MicroSD's.
It doesn't fit the Qmini series GIS Data Collector. It supports the maximum 32G
memory MicroSD card.
