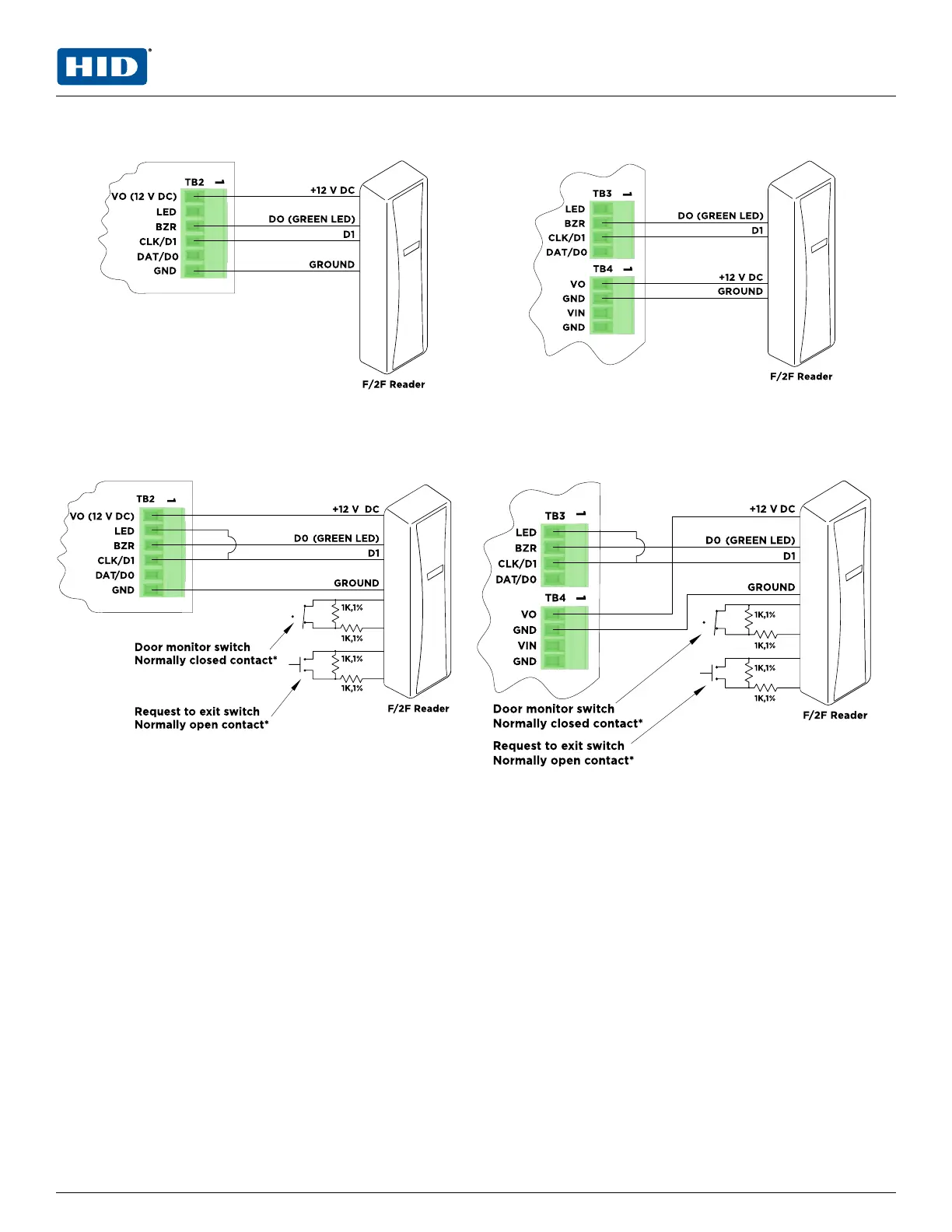

Reader port 1
Typical unsupervised F/2F reader
Reader port 2
Typical unsupervised F/2F reader
Reader port 1
Typical supervised F/2F reader
Reader port 2
Typical supervised F/2F reader
Jumper D1 and LED on supervised F/2F readers
*Inputs on supervised F/2F readers may be unsupervised or supervised (supervised shown).
PLT-05243, A.1 11 June 2021
