HID Mercury LP1501 User Manual

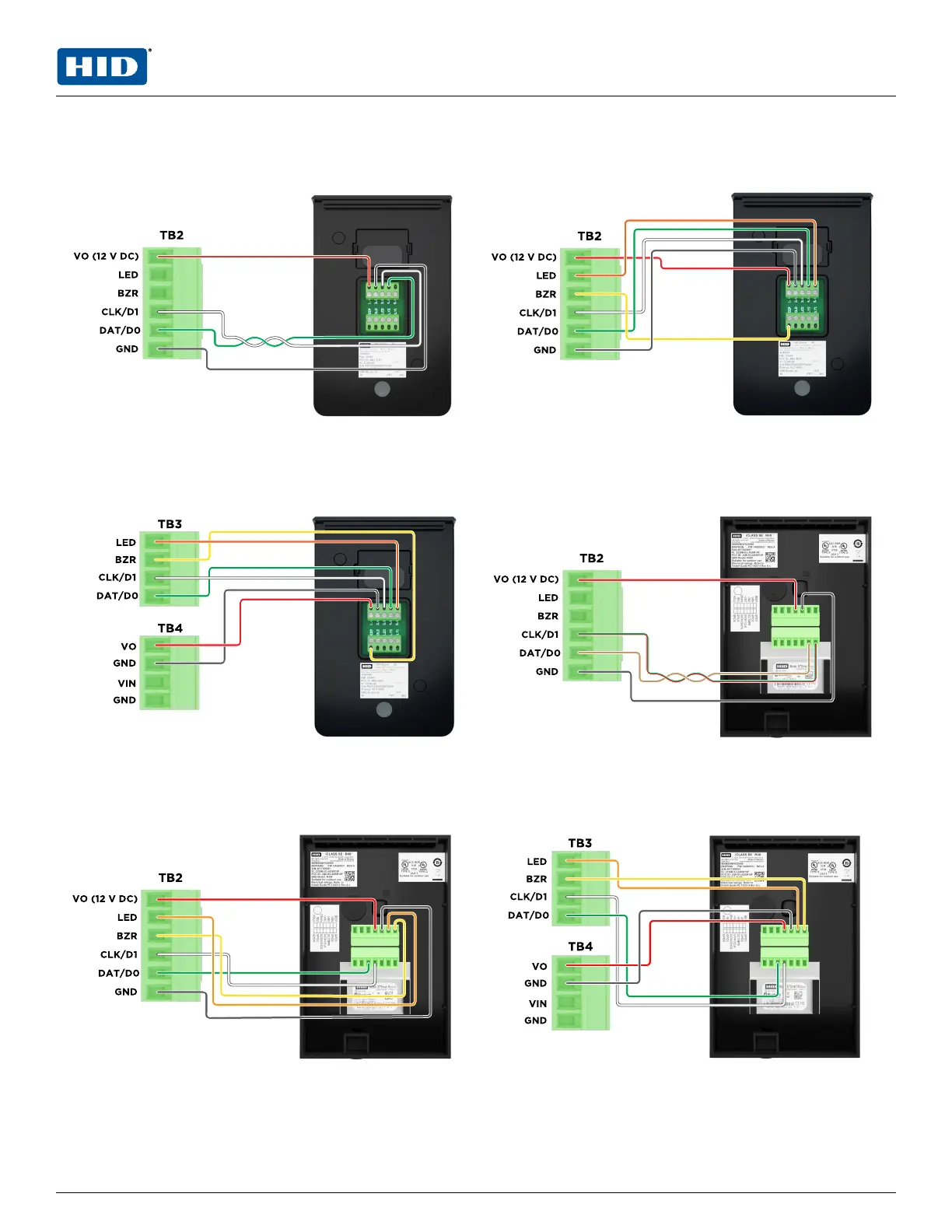

2.7.1 Reader wiring diagrams
Reader port 1, typical reader 1
(OSDP installation)
Reader port 1, typical reader 1
(Wiegand or Clock/Data installation)
 
Reader port 2, typical reader 1
(Wiegand or Clock/Data installation)
Reader port 1, typical reader 1
(OSDP installation)
 
Reader port 1, typical reader 2
(Wiegand or Clock/Data installation)
Reader port 2, typical reader 2
(Wiegand or Clock/Data installation)



PLT-05243, A.1 10 June 2021
Powering
Trusted Identities
HIDMercury™ LP1501 Controller
Installation and Specifications
