August 2005 Page 8 of 23
2005 © HID Corporation. All rights reserved.
VertX V2000 (CS) Quick Installation Guide
Output
number
V2000 V1000 V100 V200 V300
10
P5 Pins 9/8/7
11
P5 Pins 6/5/4
12
P5 Pins 3/2/1

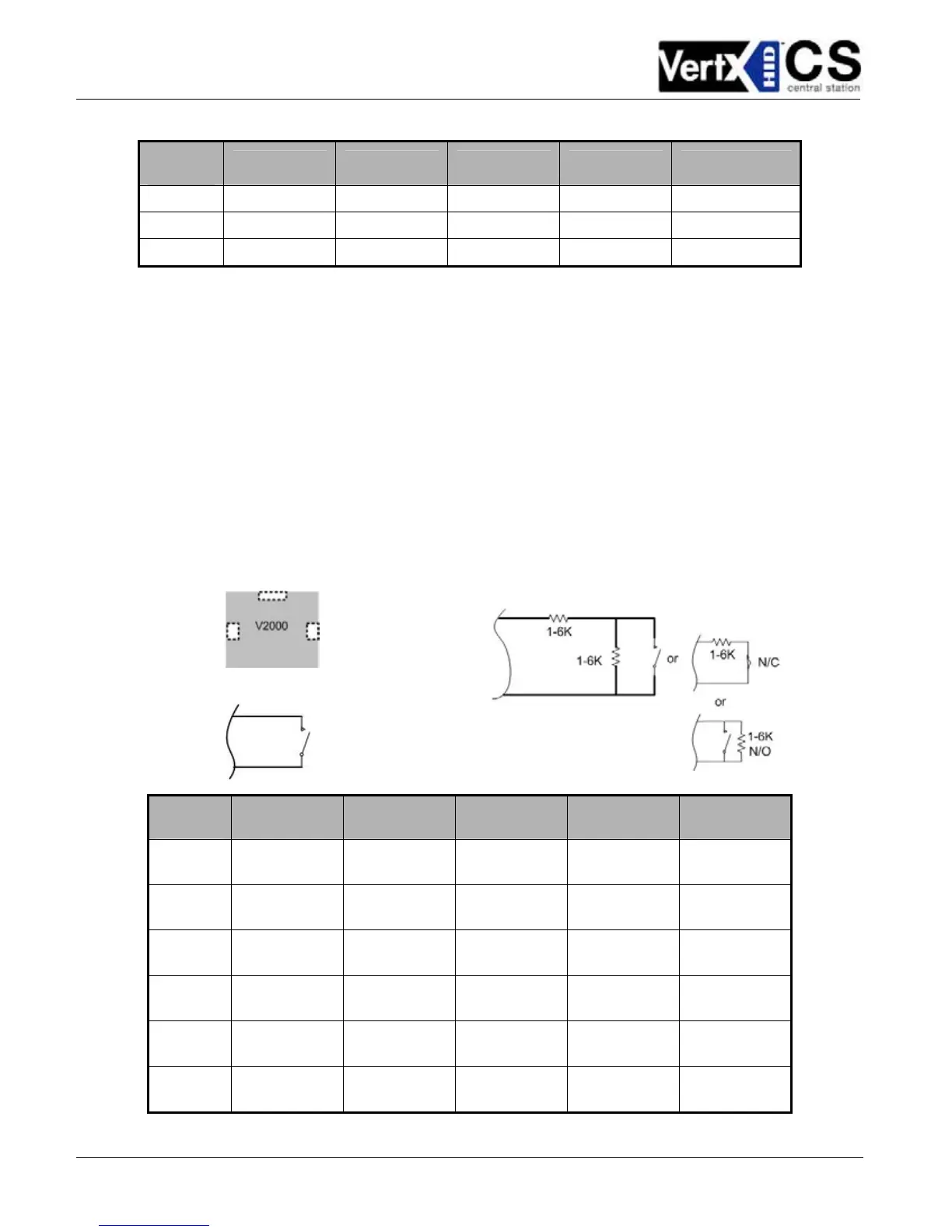

5. Input Connections – Input connections are used for a combination of specific functions such
as Request-to-Exit (REX), Door monitor, etc. They can also be used as general purpose
monitoring. Connect one side of the switch or contact to the + (plus) lead and the other to the
– (minus) lead. The following table shows where the inputs are located among the different
VertX units. Pin numbers shown on the cover use the convention +/–.
The default REX switch configuration is normally open (NO) unsupervised (no EOL resistors),
while the default door switch (DS) configuration is Normally Closed (NC) unsupervised (no
EOL resistors). All other input points are defaulted for NO switches and are unsupervised (no
EOL resistors).
Any input can be configured as a supervised input. They can be configured for resistors of 1K
– 6K Ohm. The setup of supervised inputs should be done during configuration of the VertX
units via the central station automation software (host) or by using the Calibrate Input tool, see
section 4.1 Calibrate Input.
Example: Input 1, V1000 is: P14 Pin1 is + and Pin 2 is -.
Input
number
V2000 V1000 V100 V200 V300
1
P2 Pins 1/2
Door Monitor
P14 Pins 1/2
P2 Pins 1/2
Door Monitor
P1 Pins 1/2 P6 Pins 2/1
2
P2 Pins 3/4
REX input
P11 Pins 4/3
P2 Pins 3/4
REX input
P1 Pins 3/4 P3 Pins 1/2
3
P5 Pins 4/3
Door Monitor
P7 Pins 8/7
Tamper
P5 Pins 4/3
Door Monitor
P1 Pins 5/6
P7 Pins 8/7
Tamper
4
P5 Pins 2/1
Rex Input
P7 Pins 6/5
AC Fail
P5 Pins 2/1
Rex Input
P1 Pins 7/8
P7 Pins 6/5
AC Fail
5
P7 Pins 8/7
Tamper
P7 Pins 4/3
Batt Fail
P7 Pins 8/7
Tamper
P1 Pins 9/10 P7 Pins 4/3
Batt Fail
6
P7 Pins 6/5
AC Fail
P7 Pins 6/5
AC Fail
P2 Pins 1/2
Supervised inputs can be configured for:
All default inputs will be:
