MTEC.4680.GB-B-1 Operation and maintenance manual GH serie English
GH Dehumidifiers for radiant cooling system

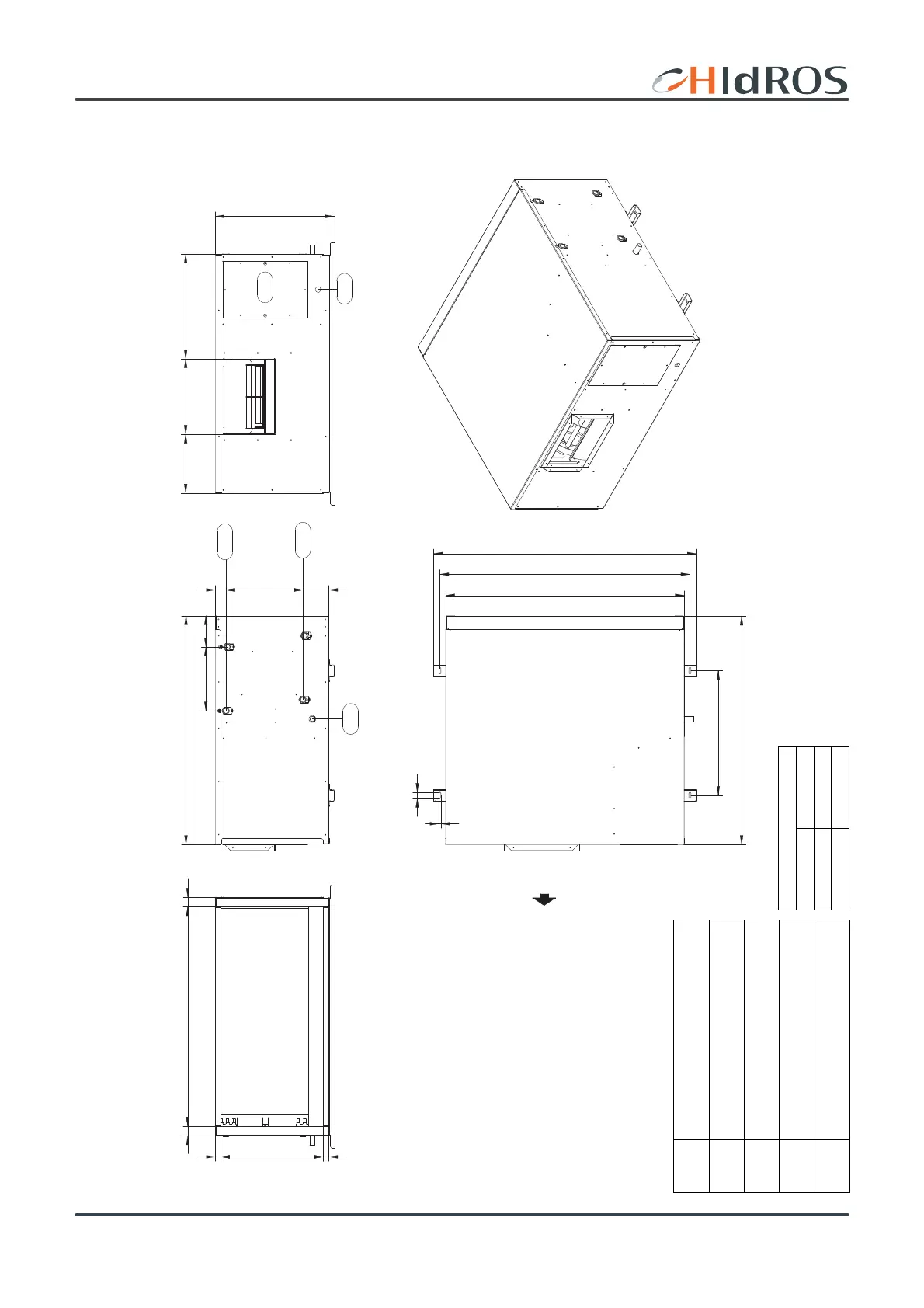

Dimensional drawing GH 200 - 200WZ
ELECRICAL PANEL POWER SUPPLY DRAIN INLET CONDENSATE DRAIN USER WATER OUTLET
USER WATER INLET
WEIGHT OF THE UNIT Modd. WEIGHT (Kg) GH 200 115 GH 200 WZ 120
