6 7 8 9
1
POWER/PROTECT
If the POWER LED lights up, the amplifier is ready for operation.
If the PROTECT LED lights up, a malfunction is indicated. Attend in this case the chapter TROUBLE SHOOTING.
2
The LOGO BADGE push button switches the logo illumination on the upper side from blue to white.
4
The CH1/2 X-OVER switch selects the required operation mode of the amplifier.
Position LP/BP: Lowpass mode (the higher frequencies will be eliminated. Adjustable by the lowpass controller.)
The HI PASS controller works in this operation mode as subsonicfilter and eliminates the lower frequencies (Bandpass-Mode).
NOTE: If this controller is turned to a higher value than the lowpass controller, no sound is hearable.
Position HP: Highpass mode (the higher frequencies will be eliminate. Adjustable by the highpass controller.)
Position FULL: Fullrange mode (the whole frequencies will be amplified).
5
The LOW PASS controller adjusts the cut-off point of the frequency range to above. The cut-off frequency is continuously
adjustable from 30 Hz to 150 Hz.
6
The REMOTE port is for the cable of the enclosed bass remote controller and only to use in the LP/BP mode. With this bass
remote controller, you are able to adjust the bass level e.g. out of the driver’s seat. Please use only the enclosed bass remote
controller and cable.
7
The HI PASS controller adjusts the cut-off point of the frequency range to below. The cut-off frequency is continuously
adjustable from 10 Hz to 1200 Hz (1.2 kHz).
8
The LEVEL controller adjusts the input sensitivity of the amplifier to align the audio signal from the head unit.
The input sensitivity is adjustable from 6 to 0.2 Volts.
The LINE OUT RCA jacks provide a linear fullrange audiosignal to supply an additional amplifier.
9
2-CHANNEL AMPLIFIERS: ZXi4002 / ZXi6002 / ZXi9002
21
1 43 5
The LINE INPUT RCA jacks must be connected with the RCA output jacks of the headunit.
10
10

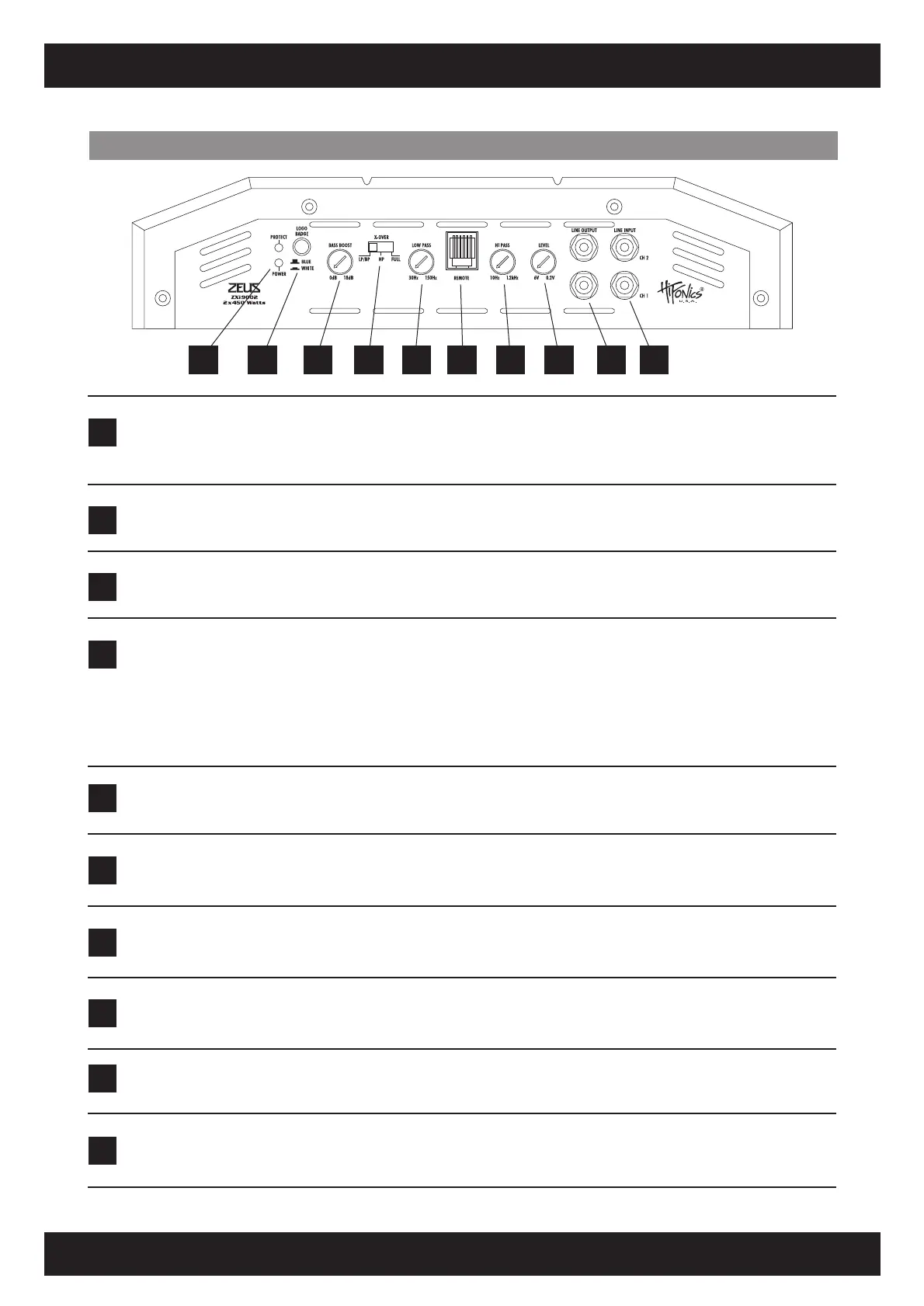

FUNCTIONS AND OPERATIONAL CONTROLS
2
3
The BASS BOOST controller adjusts the bass boost enhancement continuously from 0dB to +18dB at 45 Hz.
