Highlight Predator SS - Microprocessor Card; Figure 5: Microprocessor Card for the Predator SS

Installation & Adjustments Predator SS Turntable Stretch Wrapper Operation Manual
Highlight Industries, Inc. ● 2694 Prairie SW, Wyoming, Mi 49519 ● 1-800-531-2465 18
Microprocessor Card Description

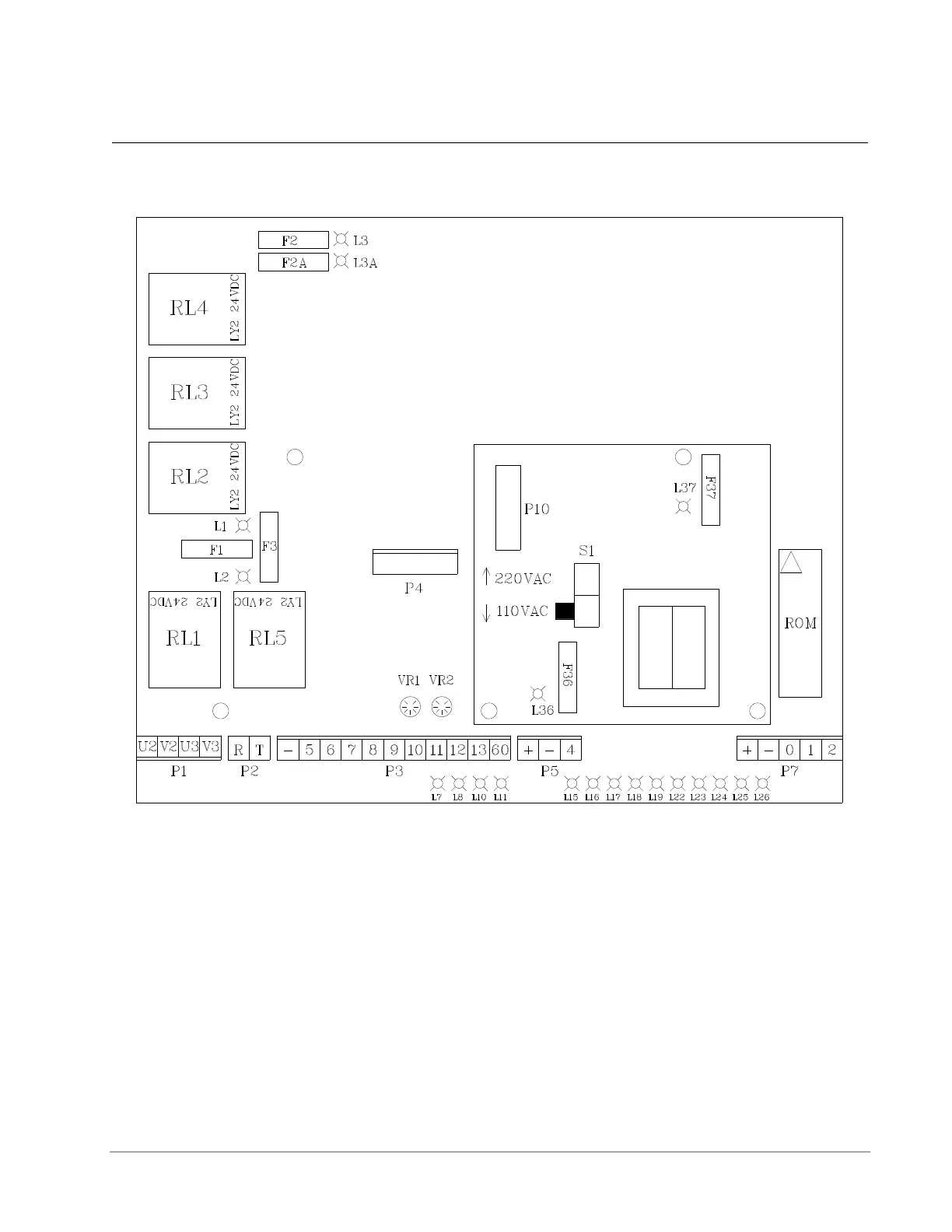

Figure 5: Microprocessor Card for the Predator SS
S1: Operating voltage selector (220 VAC or 110 VAC)
Connector P1: Turntable/Film Carriage Relay Output
Connector P2: Power Input
Connector P3: Operator Panel Input
Connector P4/P10: Transformer Input/Output
Connector P5: Turntable Proximity Sensor Input
Connector P7: Film Carriage Limit Switches Input
Relay 1: Film Carriage Down
Relay 2: Film Carriage Up
Microprocessor Card
