Maintenance Predator SS Turntable Stretch Wrapper Operation Manual
Highlight Industries, Inc. ● 2694 Prairie SW, Wyoming, Mi 49519 ● 1-800-531-2465 32
Turntable Belt Adjustment
Refer to the figure below to adjust the turntable belt. First, loosen the four motor flange
(M10) screws. Turn the (M10) bolt on the adjuster tab until the belt is tensioned. Retighten
the four motor flange screws.

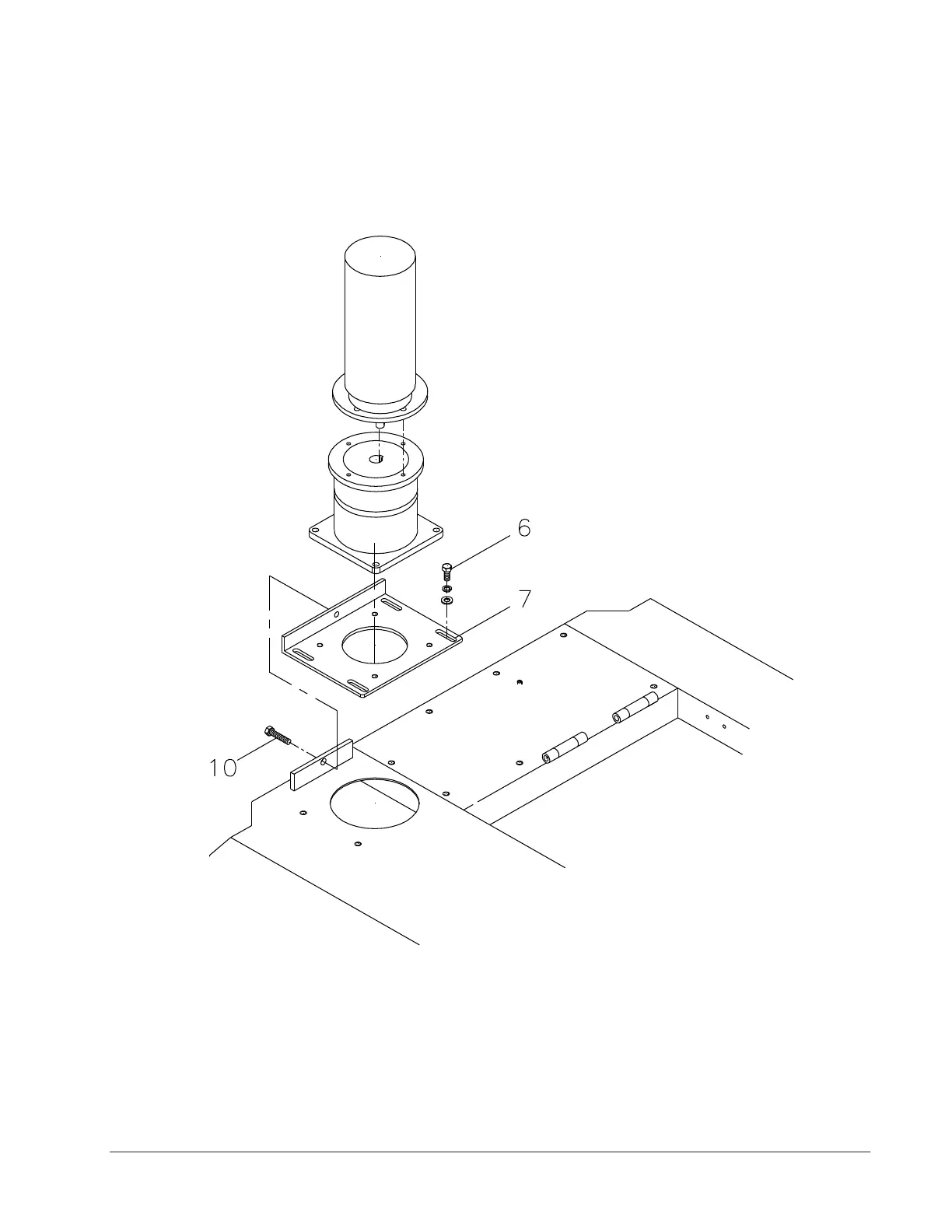

Figure 8: Turntable Belt Adjustment
Film Carriage Lift Chain Adjustment
Refer to the figure below to adjust the film carriage lift chain. First, loosen nut (M12) on the
adjustment bracket. Turn the bottom bolt until desired tension is achieved. Retighten nut
(M12). Note that the driving chain and adjustment bracket should be parallel with the
movable pulley base.
