Trouble-shooting Predator SS Turntable Stretch Wrapper Operation Manual
Highlight Industries, Inc. ● 2694 Prairie SW, Wyoming, Mi 49519 ● 1-800-531-2465 37
4. Release the buttons after the screen shows “99”
5. The limit switches and sensors should be on during operation. The screen will
display the alarm code that gives information about alarm code.

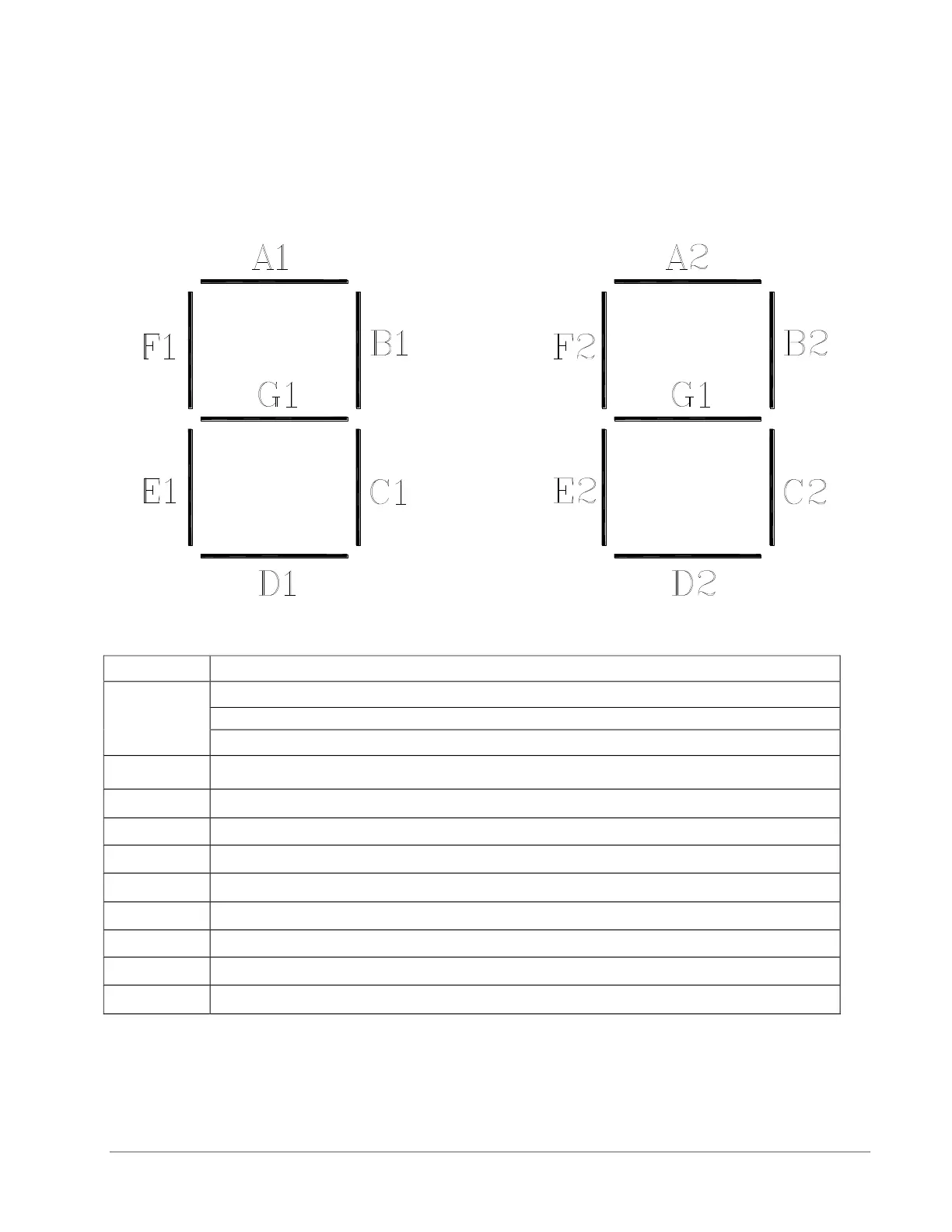

Figure 10: Self Test Error Display
Display
Possible Problem Location(s)
A1
Film Carriage Safety Bar
EMERGENCY STOP button
Electrical enclosure safety switch
B1
Film carriage max upper limit switch
C1
Film carriage max down limit switch
D1
Turntable count/home proximity switch
E1
BANDING push button
F1
START push button
G1
Package height photo sensor
A2
START light
B2
Turntable motor
C2
Carriage motor
