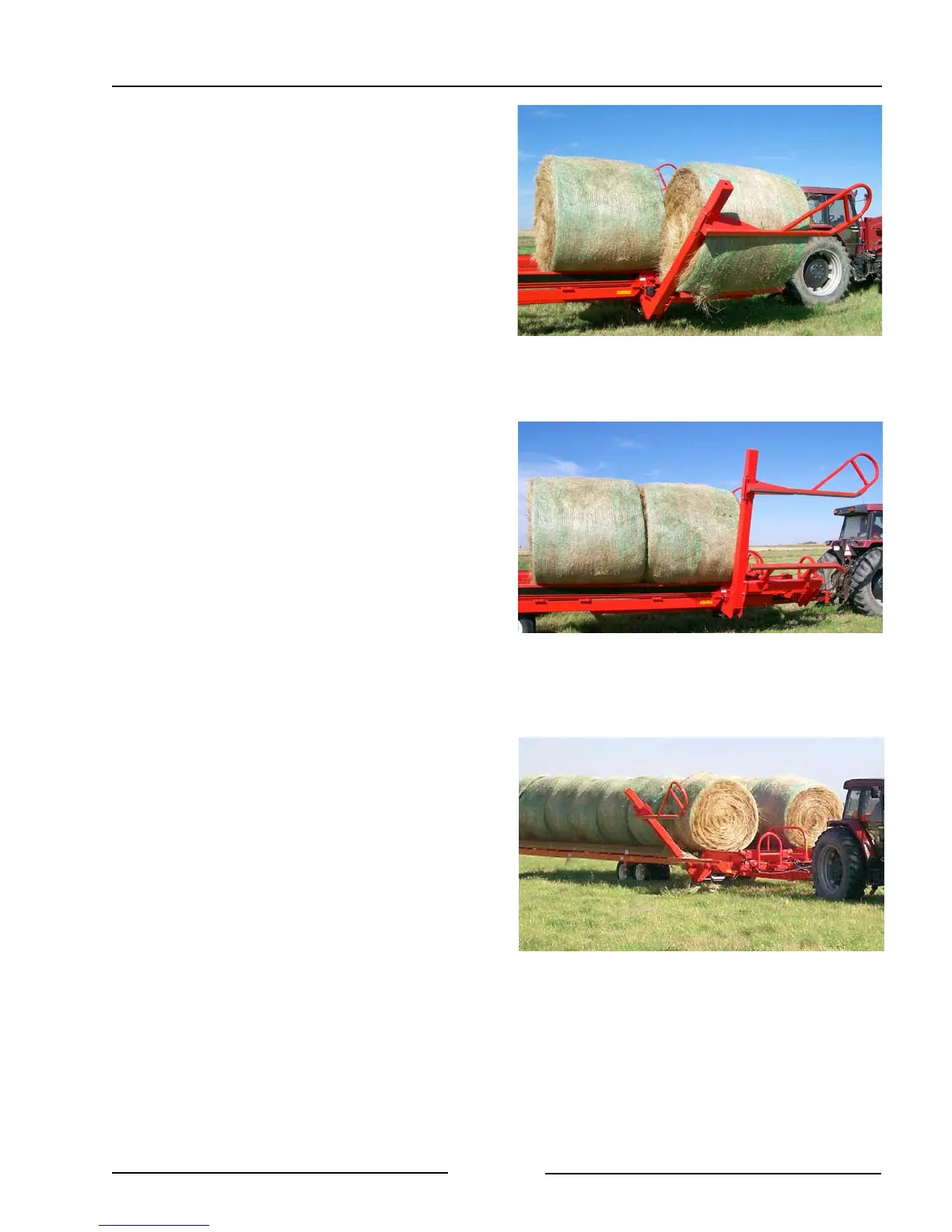

Section 4 - Operating the Bale Mover
7. Activate the hydraulic remote to lift the
arm and place the bale onto the bale
chains.
8. Activate the bale chain to move the bales
back.
- This will allow room for another bale to
be loaded.
9. Up to 7 bales can be loaded on both the
right and left sides of the Bale Mover.
Lift Bale Onto the Bed
211014
Load Bales onto Right and Left
211010
Move Bales Back On Chain Rails
211032
Page 4-5
