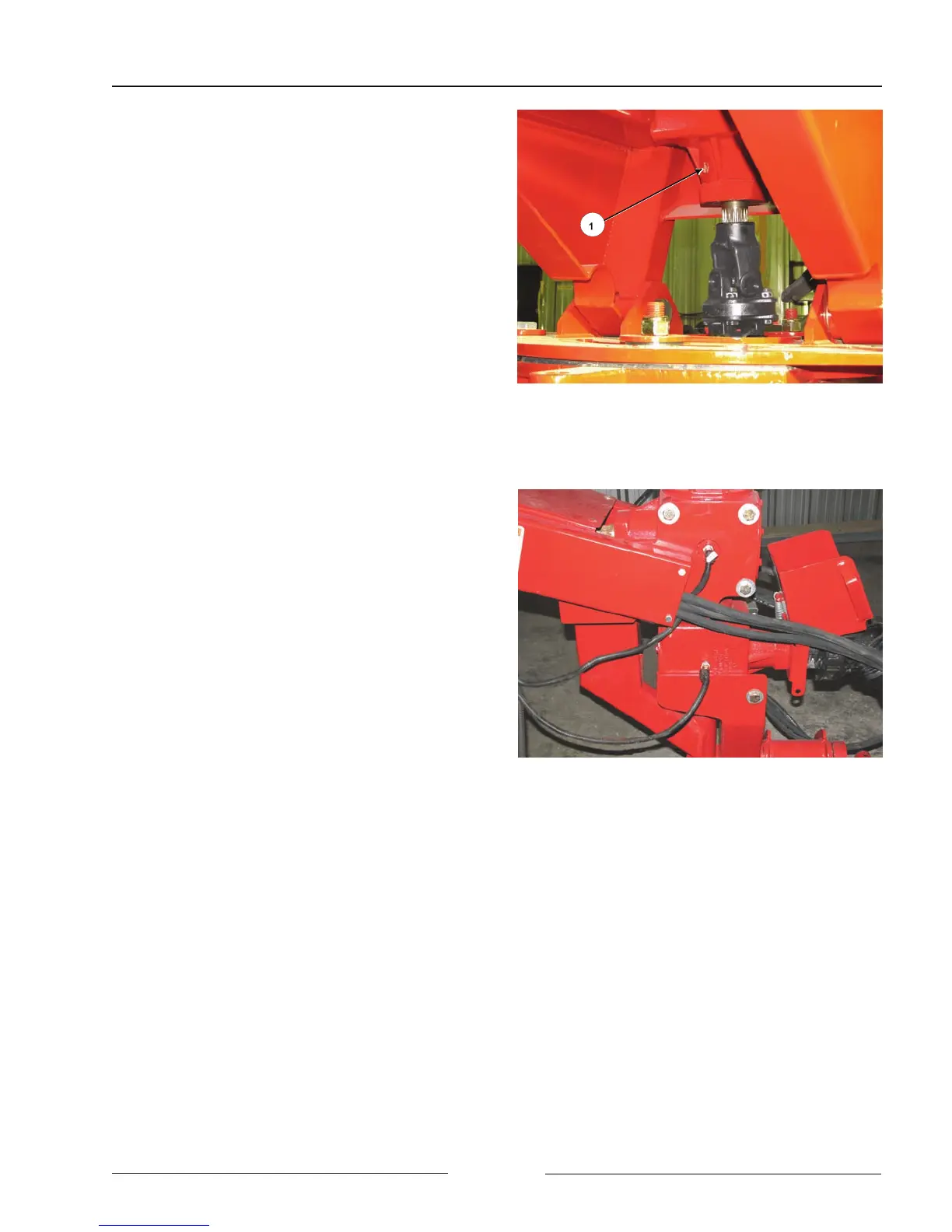

HighLine RCH Mower - T-Box and Hitch Gearbox Oil Change Procedures

Section 5 - Maintaining the Mower
Page 5-7
T-Box Gearbox Oil Change
1. The oil drain plug (1) is located on the
gearbox vertical shaft casing.
2. Remove the drain plug and drain the oil.
Collect the oil in an environmentally
friendly container.
3. Replace the drain plug.
4. Refill with the specified oil type through
the fill plug.
5. Dispose of the oil container at an
appropriate oil recycling center.
Upper and Lower Hitch Gearbox Oil
Change
1. The oil drain plugs (1) are located on the
gearbox horizontal shaft casing.
2. Remove the drain plug and drain the oil
from both boxes. Collect the oil in an
environmentally friendly container.
3. Replace the drain plug.
4. Refill both boxes with the specified oil
type through the fill plugs.
5. Dispose of the oil container at an
appropriate oil recycling center.
T-Box Oil Drain Plug
108029C
Hitch Gearbox Oil Drain Plugs
108030
