Section 5 - Maintaining the Mower
Page 5-13

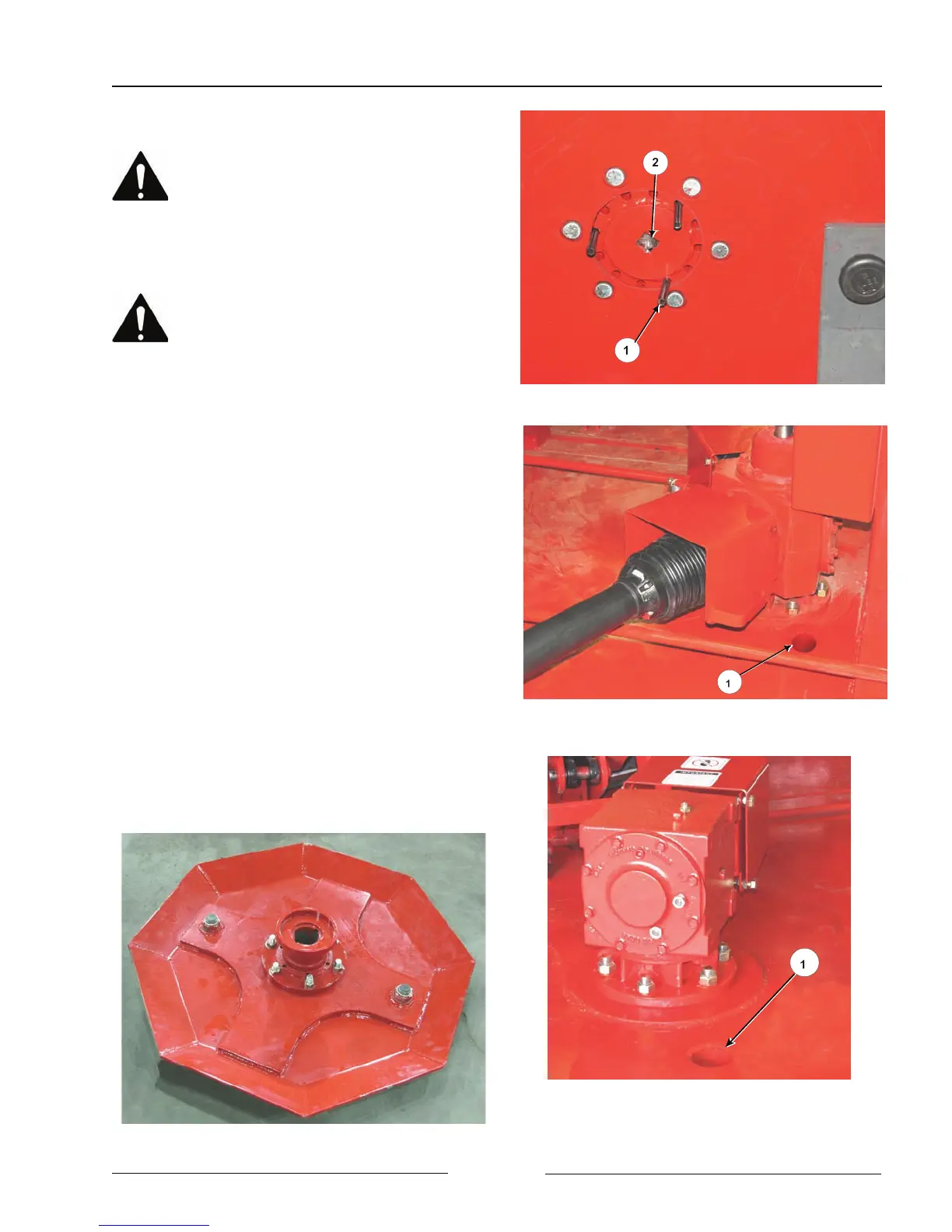

Removing and Replacing the Blade Pan
Before beginning, make sure the
tractor is off and the PTO is
disengaged. Disconnect the
driveline from the tractor before
doing any work.
Securely block-up the mower
before any work is done under the
mower when lifted up. This is to
prevent the mower from dropping
due to inadvertent operation of
controls, hydraulic leaking or
failure of any components.
1. Removing the Blade Pan With Hub
a. Remove the three roll pins (1) that are
securing the pan nut.
b. Secure the driveline from turning.
c. Use a 3/4" impact drive to remove the
pan nut (2).
d. Insert a bar through the deck hole (1)
and drift the bar to impact the pan.
i. If pan does not drop, rotate the
pan 180
"
and drift again to remove
the pan from the tapered
driveshaft.
ii. The pan hub is keyed to the drive
shaft with 2 keys. The keys can be
re-used if they are in good
condition.
Blade Pan Removed
107120
Remove Roll Pins From Blade Pan Nut
107060C
Wing Deck Hole
108023C
Center Deck Hole
108022C
