Section 5 - Maintaining the Mower
Page 5-14

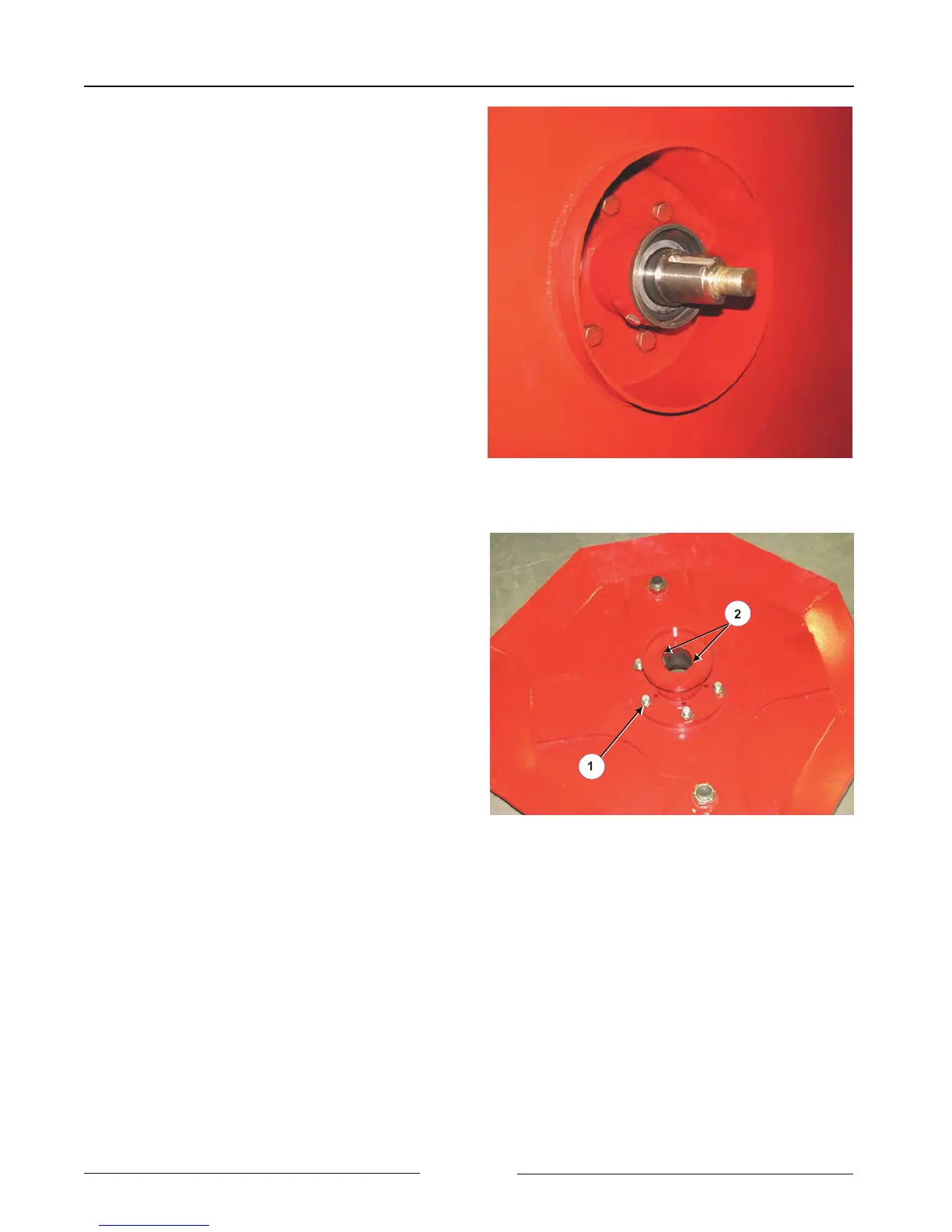

2. Installing the Blade Pan with Hub
a. Inspect the drive shaft and keyways to
ensure they are in good condition.
b. Check the oil seal of the gearbox to
ensure that it is not leaking.
c. Ensure that the gearbox nuts are tight.
d. Inspect the pan hub.
i. The hub is fastened to the pan with
6 bolts. (1) Ensure all are tight to
120 lbf (163 Nm)
ii. Check the condition of the
keyways (2).
Drive Shaft & Keyway
108027
Blade Pan Hub
107061C
To Next Page
