HighLine RCH Mower - Disconnecting Mower from Tractor for Storage

Section 6 - Storing the Mower
Page 6-2

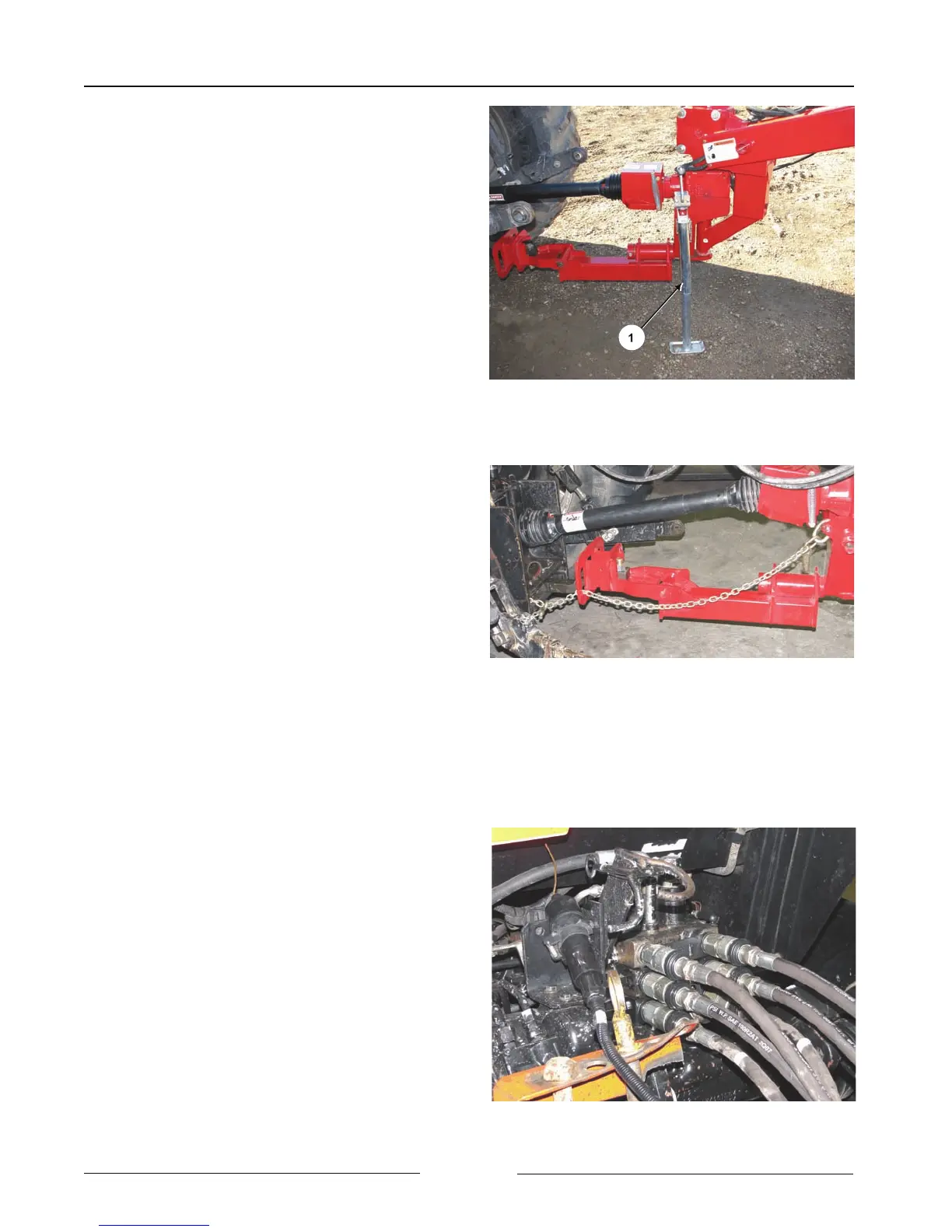

8. Remove the jack from the storage
position and place it onto the hitch. Pivot
the jack (1) and raise the hitch until the
weight is supported by the jack.
- Ensure that the jack is resting on solid
level ground or resting on a wood
block.
9. Remove the driveline from the tractor
PTO shaft.
10. Disconnect the safety chain from the
tractor.
11. Disconnect the hitch from the tractor.
- Single Point - Remove the hitch bolts,
lock nuts and washers from the
drawbar.
- 2 Point - Disconnect from the draft
links.
12. Relieve the pressure on the hydraulic
hoses and disconnect them.
Raise Hitch with the Jack
107081C
Remove Driveline and Safety Chain
108006
Disconnect Hydraulic Hoses
107023
