HighPoint NVMe Boot RAID Windows Installation Guide
5
UEFI BIOS Settings
Different motherboards will provide different UEFI-related BIOS settings. Please consult your
motherboard’s user manual for more information. This section provides examples for two
different types of motherboard BIOS menus.

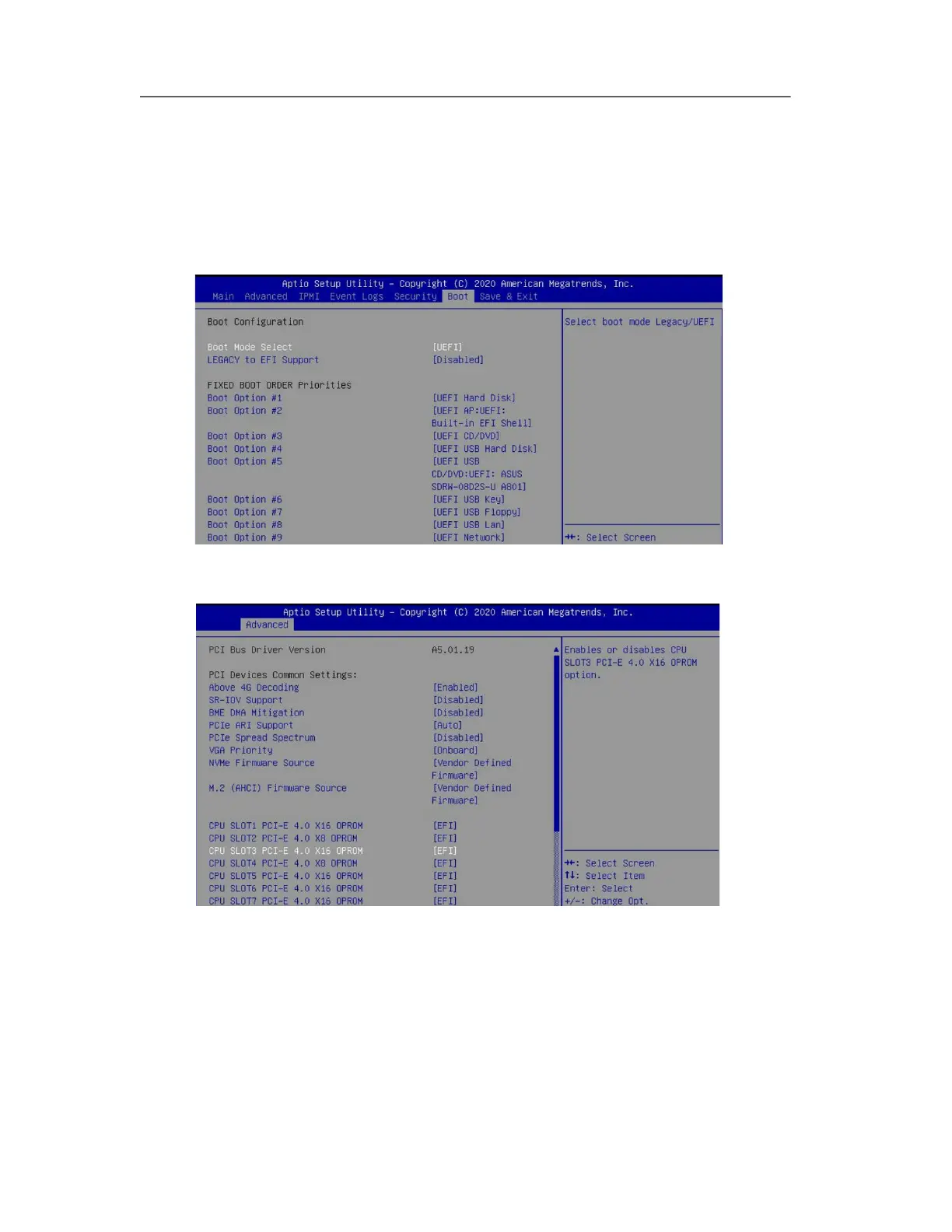

1. Example 1: Changing the UEFI setting (SuperMicro H12SSL-i motherboard).
a. Boot the system and access the motherboard BIOS menu.
b. Scroll to the Boot tab and set the "Boot Mode Select" to "UEFI";
c. Under "Advanced->PCIe/PCI/PnP Configuration->, change “CPU Slot x PCI-E
OPROM" to "EFI". “x” represents the PCIE slot assignment. For this example, the
SSD7505 is installed into “CPU Slot 3”.
